RA2076

Rakes Hay/Farm Implements

For Competitive Pricing
Refer to Dealer

Extended Warranty

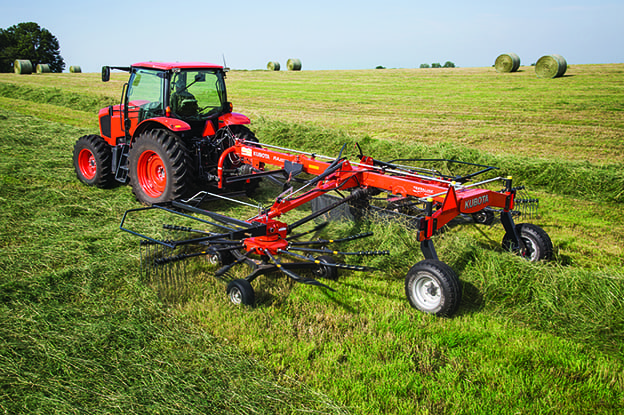

Maneuver in tight fields and work consistent windrows with the Kubota RA2076! The Kubota FarmLine rake sports oil-immersed cam discs and guide rollers for reduced maintenance, and with up to 12 tangential tine arms, and four double tines per arm, you’re going to be covering larger swaths for faster dry times. The RA2076 sports a 23’ to 25’ 7” working width and thanks to rear wheel steering, you’ll easily make turns up to 80 degrees, maximizing your performance. Read Disclaimer

Special Offers

rakes_ra2072_ra2076_ra2584
RAKE SERIES
Up to 0% A.P.R. for 48 Months on your new Kubota RA Series!
Details
Farmer Veteran Coalition Rebate
Customer instant rebate for Farmer Veteran Coalition members.
Details
Implement Stand Alone Financing
Stand Alone Financing Installment Program
Details

Features

0614_RA2076_Transport_WO_Arms_5561

Easy Transportation

To reduce transport height on the Kubota RA2076 and RA2584 to 11'4", the tine arms can be removed. The swath board folds up automatically, creating a transport width of 9'2" for all 3 models.

Exceptional-Raking-Performa

Exceptional Raking Performance

Up to twelve tangential tine arms and four double tines per arm provide high tine frequency to ensure clean raking performance – even at reduced rpm and high travel speed. Infinitely variable cam track adjustment on the RA2584 allows fine-tuning to obtain optimum raking and swath formation according to crop conditions.

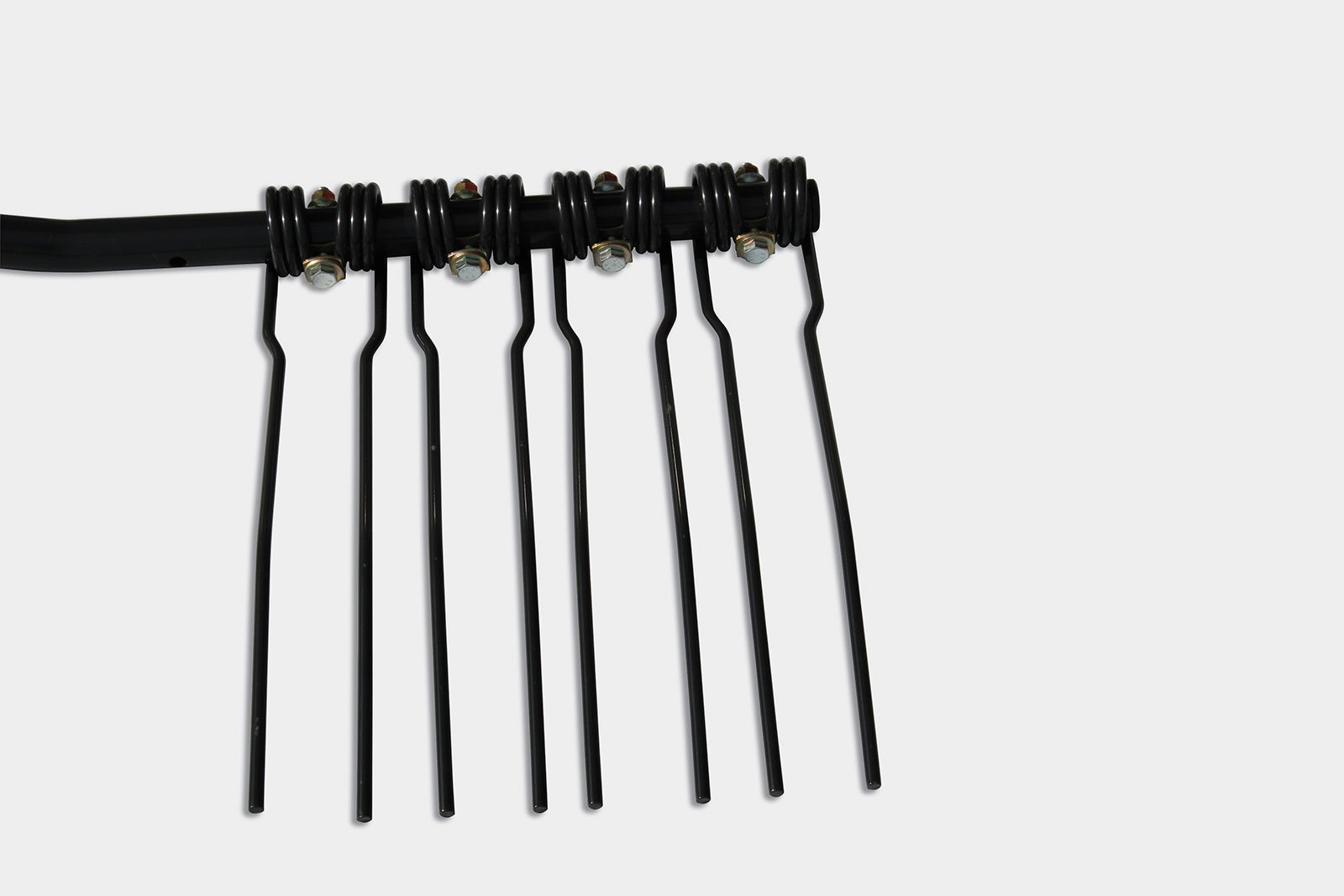

04_Exceptional-Raking-Performance

Outstanding Durability

Kubota rakes are equipped for maximum raking performance. The RA2072 and RA2076 rakes feature 0.35" wire diameter tines, whereas the RA2584 rakes include heavy duty 0.39" wire diameter tines for outstanding durability.

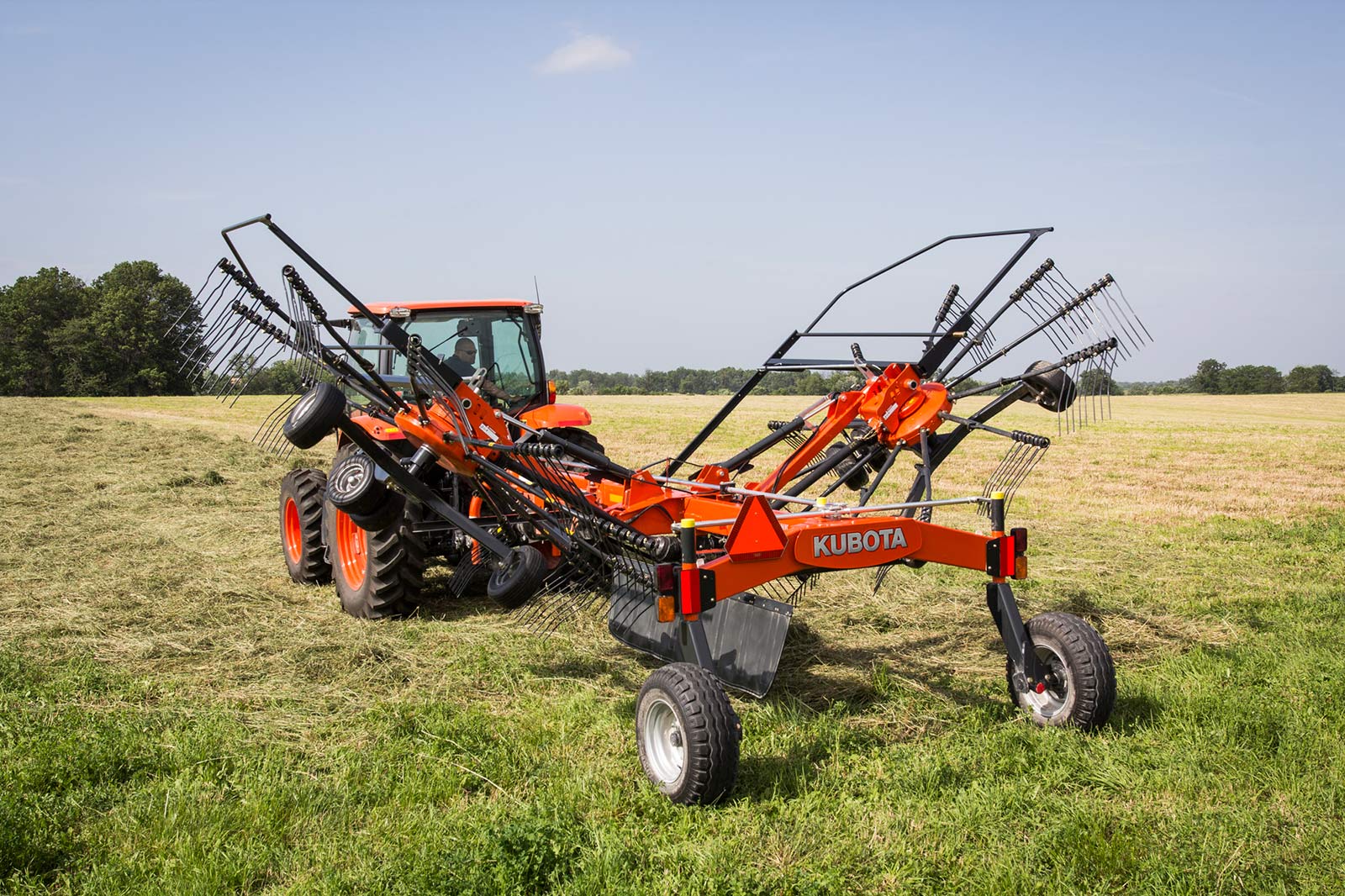

0614_RA2076_Unfold1_1271

Hydraulically Adjusted Working Widths

These double rotor rakes offer hydraulically adjustable working widths.

  • RA2072 working widths range between 20'4" to 23'7" and swath width from 3’11” to 6’7”
  • RA2076 rotors can be set between 23' and 25'7" of working width and swath width from 4'3" to 6’11”
  • RA2584 working width can be adjusted from 24'11" to 27'7 and swath width from 4’7” to 7’3”

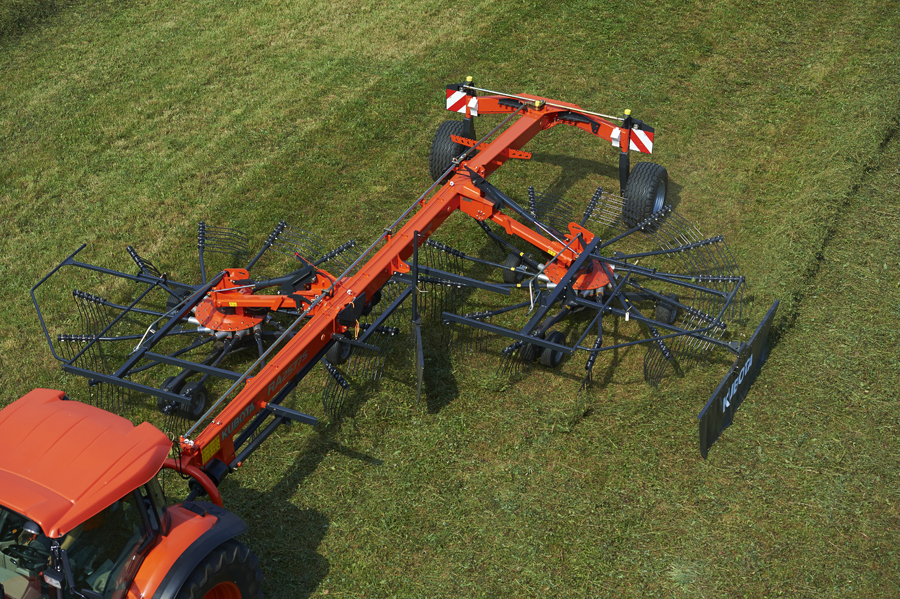

Unique-Maneuverability

Unique Maneuverability

Kubota's side delivery rotary rake has a carrier frame with rear wheel steering, allowing the rake to make turns up to 80 degrees. This is ideal for making tight turns on headlands and productive swathing, even in awkwardly shaped fields. When in headland position, an outstanding lifting height of 18” prevents swath damage. And with a lower center of gravity, this model has excellent stability.

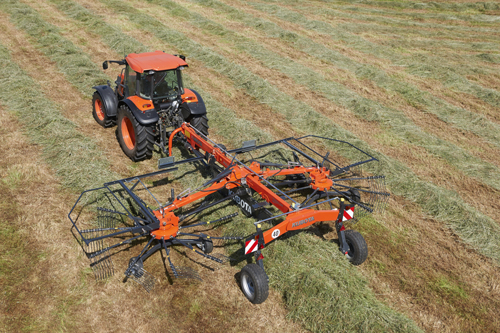

FarmLine-Rakes-(RA2072-&-RA

FarmLine Rakes (RA2072 & RA2076)

Kubota's FarmLine double rotor, center swath rakes are perfect for all operations matching mowers up to 13’ in cutting width. FarmLine rakes feature oil-immersed cam discs, guide rollers and tine bearings, making them low maintenance. All rakes are fitted with curved tine arms, to ensure a regular and even swath formation in all crop conditions. Additionally, the curved shape increases the tine working area as the rake is moving and allows a higher lift out of the swath, which is critical in high volume crops, ensuring a very uniform swath. Our expert knowledge in producing the right swath not only optimizes the capacity of the baler, but also increases the quality of the forage.

Kubota-TerraLink-Quattro-Sy

Kubota TerraLink Quattro System

The Kubota TerraLink Quattro System provides perfect ground contour following in three dimensions. The TerraLink system has an open construction of the frame, giving the rotor the ability to flex and follow ground contours and absorb shocks from reaching the rotor. The Quattro trailed axle configuration enhances the rotor’s ability to follow ground contours, with the wheels being positioned as close to the tines as possible – two wheels trailed and one in front. This positions the rotor right in the middle of the Quattro system and lets the tines work in the crop without contacting the soil.

0614_RA2076_Transport_WO_Arms_5561

Easy Transportation

To reduce transport height on the Kubota RA2076 and RA2584 to 11'4", the tine arms can be removed. The swath board folds up automatically, creating a transport width of 9'2" for all 3 models.

Exceptional-Raking-Performa

Exceptional Raking Performance

Up to twelve tangential tine arms and four double tines per arm provide high tine frequency to ensure clean raking performance – even at reduced rpm and high travel speed. Infinitely variable cam track adjustment on the RA2584 allows fine-tuning to obtain optimum raking and swath formation according to crop conditions.

04_Exceptional-Raking-Performance

Outstanding Durability

Kubota rakes are equipped for maximum raking performance. The RA2072 and RA2076 rakes feature 0.35" wire diameter tines, whereas the RA2584 rakes include heavy duty 0.39" wire diameter tines for outstanding durability.

0614_RA2076_Unfold1_1271

Hydraulically Adjusted Working Widths

These double rotor rakes offer hydraulically adjustable working widths.

  • RA2072 working widths range between 20'4" to 23'7" and swath width from 3’11” to 6’7”
  • RA2076 rotors can be set between 23' and 25'7" of working width and swath width from 4'3" to 6’11”
  • RA2584 working width can be adjusted from 24'11" to 27'7 and swath width from 4’7” to 7’3”
Unique-Maneuverability

Unique Maneuverability

Kubota's side delivery rotary rake has a carrier frame with rear wheel steering, allowing the rake to make turns up to 80 degrees. This is ideal for making tight turns on headlands and productive swathing, even in awkwardly shaped fields. When in headland position, an outstanding lifting height of 18” prevents swath damage. And with a lower center of gravity, this model has excellent stability.

FarmLine-Rakes-(RA2072-&-RA

FarmLine Rakes (RA2072 & RA2076)

Kubota's FarmLine double rotor, center swath rakes are perfect for all operations matching mowers up to 13’ in cutting width. FarmLine rakes feature oil-immersed cam discs, guide rollers and tine bearings, making them low maintenance. All rakes are fitted with curved tine arms, to ensure a regular and even swath formation in all crop conditions. Additionally, the curved shape increases the tine working area as the rake is moving and allows a higher lift out of the swath, which is critical in high volume crops, ensuring a very uniform swath. Our expert knowledge in producing the right swath not only optimizes the capacity of the baler, but also increases the quality of the forage.

Kubota-TerraLink-Quattro-Sy

Kubota TerraLink Quattro System

The Kubota TerraLink Quattro System provides perfect ground contour following in three dimensions. The TerraLink system has an open construction of the frame, giving the rotor the ability to flex and follow ground contours and absorb shocks from reaching the rotor. The Quattro trailed axle configuration enhances the rotor’s ability to follow ground contours, with the wheels being positioned as close to the tines as possible – two wheels trailed and one in front. This positions the rotor right in the middle of the Quattro system and lets the tines work in the crop without contacting the soil.


Specs & Compare

Compare Kubota Models
RA2076
50 Minimum PTO HP Required
SEE DEALERSHIP FOR PRICE
  • FarmLine
    Standard
  • ProLine
    N/A
  • Working Width ft. (m)
    23' (3) - 25' 7" (7.8)
  • Transport Width ft. (m)
    9' 2" (2.8)
  • Transport Length ft. (m)
    19' 4" (5.9)
  • Parking Height ft.
    11' 4" (3.5)
  • Weight lbs. (kg)
    3615 (1639)
  • Swath Width m.
    4' 3" - 7' 3"
  • Capacity Theo. (Acres/h)
    20.8
  • Pivoting 3-pt Headstock (cat.)
    N/A
  • Lower Links (2-pt.)
    Standard
  • Linkage Drawbar
    N/A
  • Gauge Wheel 16"
    N/A
  • Rotor Diameter ft.
    11' (3.4)
  • Swath Delivery
    Center
  • Number of Rotors
    2
  • Number of Arms Per Rotor
    2x12
  • Number of Double Tines/Arm
    4
  • Tine Diameter in.
    .35"
  • Continuous Cam Track
    N/A
  • Detachable Tine Arms
    Standard
  • Height Adjustment
    Mechanical
  • Tires (Rotors)
    16x6.5-8
  • Fixed Tandem Axle
    Optional
  • Pivoting Tandem Axle
    N/A
  • Stand. Tires (Carrying Frame)
    10/75-15.3
  • Carrier Arm Compensating
    N/A
  • Locking Catch for Slopes
    N/A
  • Warning Panels
    Standard
  • Road Lights
    Standard
  • Build
  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •
