BV4180 PREM / PREMNET

Balers Hay/Farm Implements

For Competitive Pricing
Refer to Dealer
Extended Warranty Highest Retained Value 2022

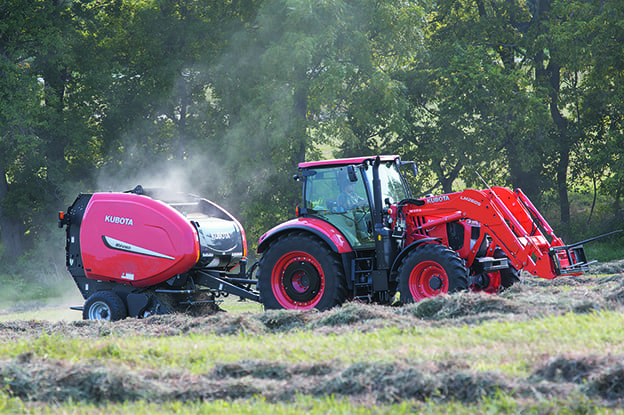

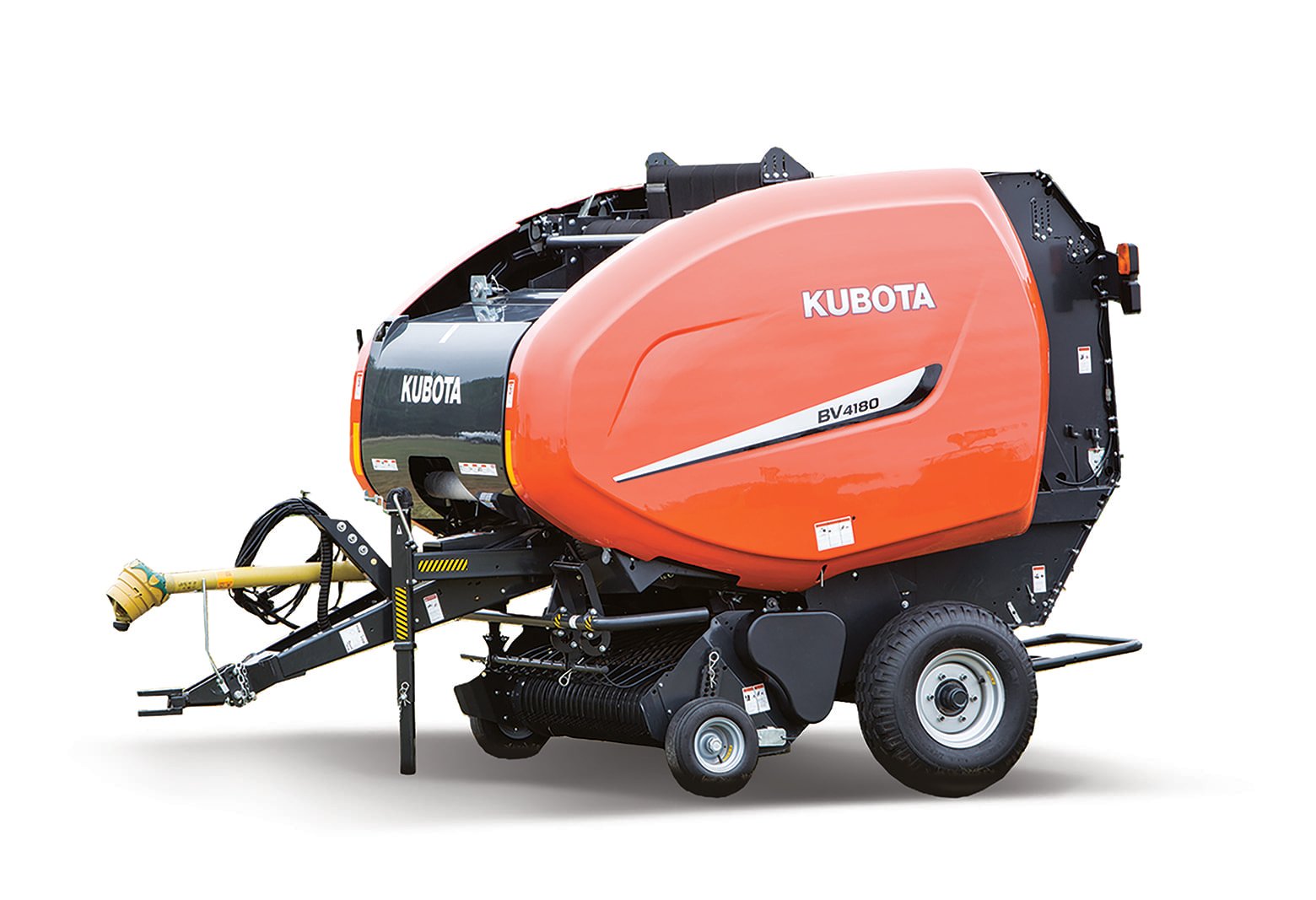

Make quick work of silage, hay and straw with the Kubota BV4180! Built with the ability to handle all types of crops and field demands, the baler’s low profile pickup includes smooth tine operation for high quality bales. Inside, three rollers and five belts ensure your bales are wrapped tightly and the BV4180 offers available twine tying and no loose ends. Kubota’s attention to craftsmanship means you’ll require less maintenance and virtually no wear and tear as you work through hay season after hay season.

Read Disclaimer

Special Offers

balers_bv5160
BALER SERIES
Up to 0% A.P.R. for 48 Months plus $2,500 Loyalty Cash* on your new Kubota BV Series!
Details
Farmer Veteran Coalition Rebate
Customer instant rebate for Farmer Veteran Coalition members.
Details
Implement Stand Alone Financing
Stand Alone Financing Installment Program
Details

Features

_DSC1177

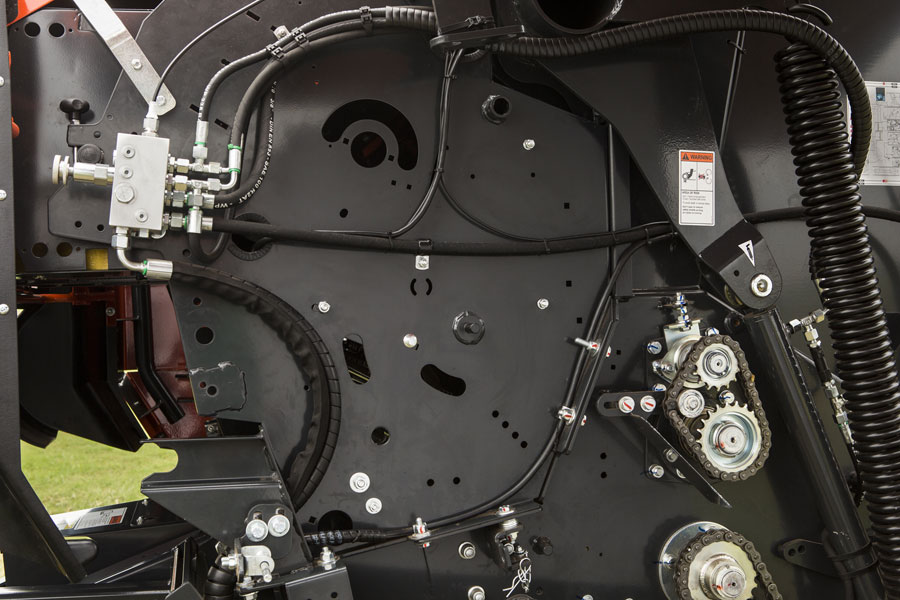

Reduced Maintenance

The main bale chamber drive is a heavy duty pitch chain. This allows for a longer lifespan and reduced maintenance. The split drive gearbox ensures that power is distributed evenly, reducing wear and power requirements.

0614_BV4160_Twine_Storage_8546

Twine Tying (BV4160 Premium & BV4180 Premium Only)

Automatic twine tying with the fast acting double tube system means simultaneous binding of both edges of the bale, keeping binding time to a minimum. Over crossing of twines in the center of the bale provides no loose ends at the end of the binding cycle.

0614_BV4160_ChangeNetRoll_8477

PowerBind Net Wrap

These balers come with Kubota's patented PowerBind net wrap system. This technology has allowed Kubota to get away from the old feed rollers and eliminate many high wear items. The net is fed directly into the bale chambers by injection plates. This design keeps the net tight at all times, which provides accurate and extremely reliable net injection.  In addition, the PowerBind net system is extremely simple with a very low loading height (no tools required).

Focus III

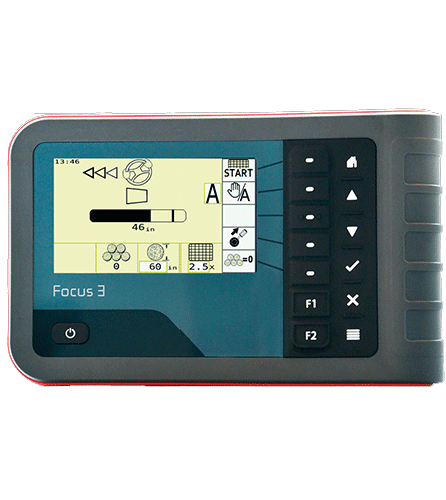

Focus III Control Terminal

The Focus III Terminal is a universal control terminal which can be used with other Kubota implements. It gives you full control of all functions from the tractor cab, shown on a high density digital color display. The Focus III terminal monitors and controls all necessary functions with all relevant parameters/information visible at a glance. The control box is also driving the binding automatically without any intervention from the operator.

0614_BV4160_BailChmbr_8434

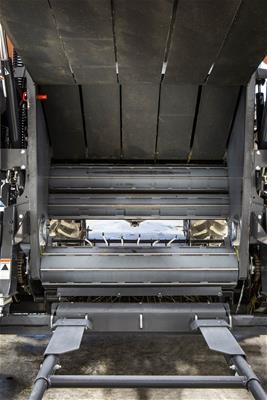

Baling Chamber

Kubota BV4160 and BV4180 Premium bale chamber offers a combination of 3 rollers and 5 wide laced belts. This mixed chamber ensures a smooth bale start whatever the crop type, offering smooth bale rotation and reduced crop loss even in dry conditions. As the bale grows, the belt tensioning arm is subjected to steadily increasing resistance from two hydraulic cylinders and a spring tensioner – as the bale diameter grows, so does the bale's density.

0614_BV4160_ForkFeeder_8497

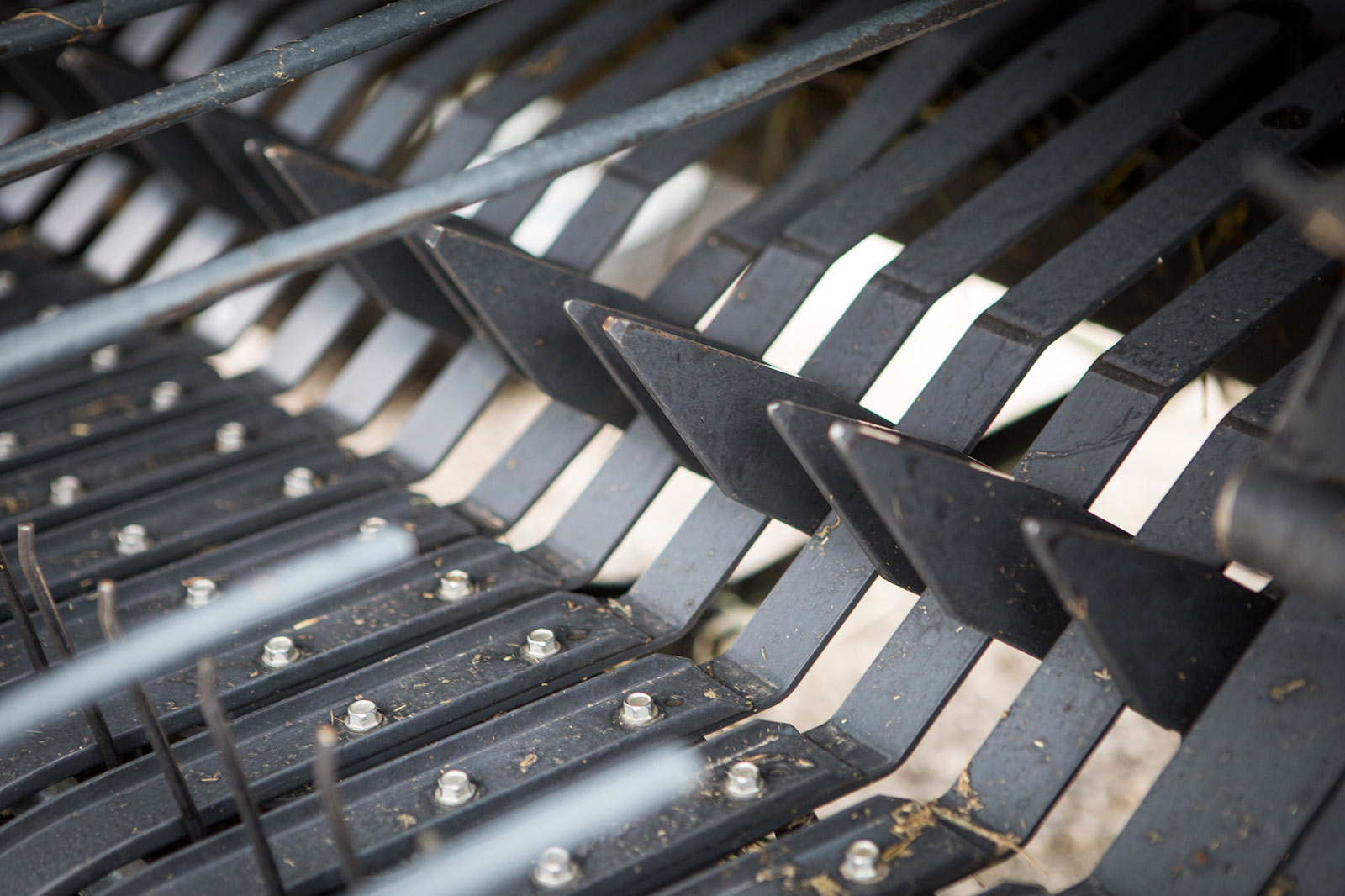

Fork Feeder

Kubota's BV4160 and BV4180 Premium models are fitted with an efficient fork feeder intake system. This system provides a direct feed into the bale chamber. The wide opening allows almost unrestricted intake capacity for a fast and efficient baling process. In conjunction with a crop deflector, the fork feeder ensures a consistent crop flow into the bale chamber, which ensures high density bales. These models come with a 79" pick-up.

0814_BV4160_Pickup_1618

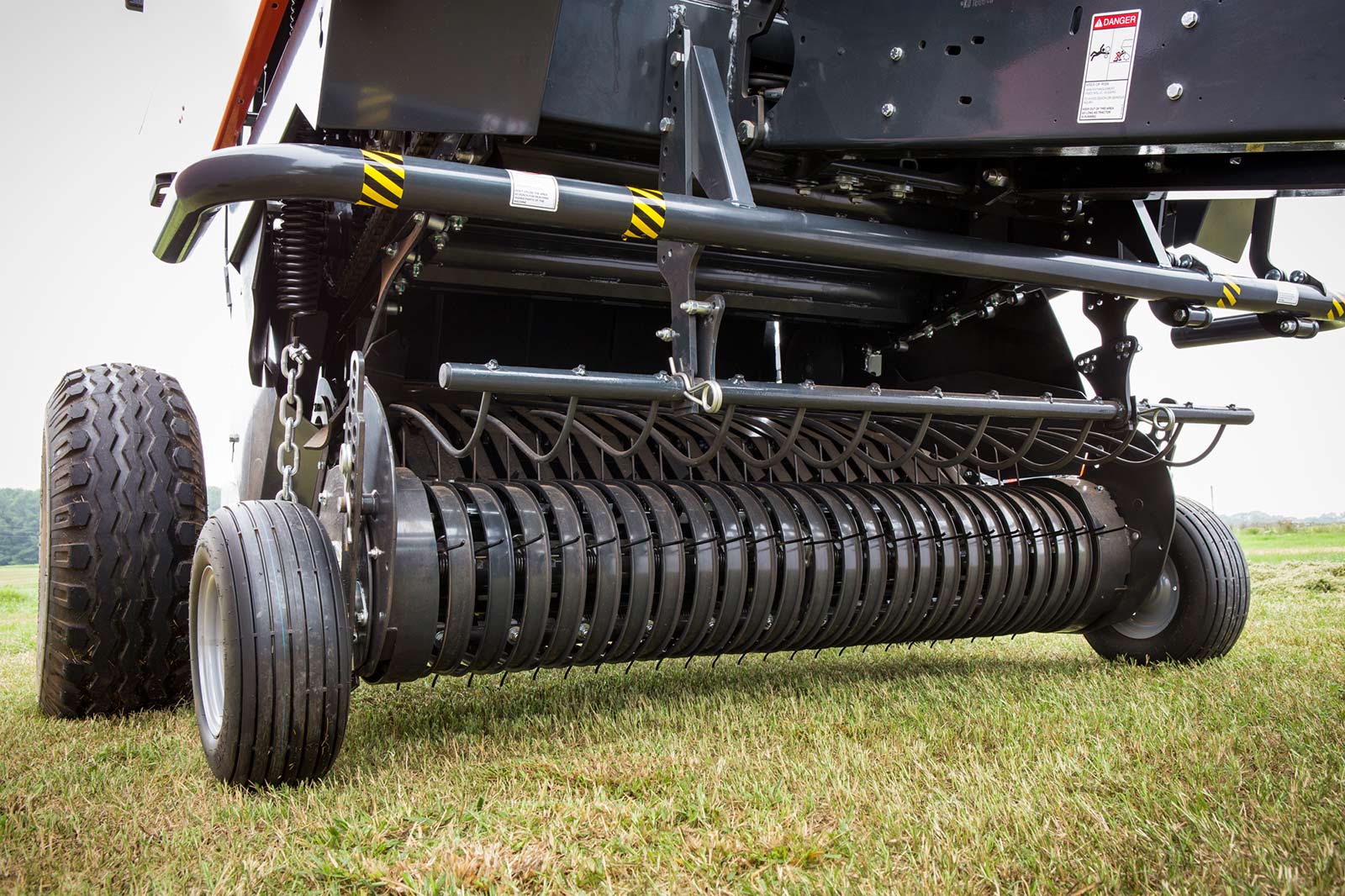

High Capacity Pick-Up

These balers feature a 4 bar 79" heavy duty pickup. The low profile pickup is designed with closely spaced tines which provides for a very smooth flow of crop into the baler. This design provides unparalleled pickup capacity, from light windrows all the way up to heavy silage windrows, and can easily be seen from the tractor.

_DSC1177

Reduced Maintenance

The main bale chamber drive is a heavy duty pitch chain. This allows for a longer lifespan and reduced maintenance. The split drive gearbox ensures that power is distributed evenly, reducing wear and power requirements.

0614_BV4160_Twine_Storage_8546

Twine Tying (BV4160 Premium & BV4180 Premium Only)

Automatic twine tying with the fast acting double tube system means simultaneous binding of both edges of the bale, keeping binding time to a minimum. Over crossing of twines in the center of the bale provides no loose ends at the end of the binding cycle.

0614_BV4160_ChangeNetRoll_8477

PowerBind Net Wrap

These balers come with Kubota's patented PowerBind net wrap system. This technology has allowed Kubota to get away from the old feed rollers and eliminate many high wear items. The net is fed directly into the bale chambers by injection plates. This design keeps the net tight at all times, which provides accurate and extremely reliable net injection.  In addition, the PowerBind net system is extremely simple with a very low loading height (no tools required).

Focus III

Focus III Control Terminal

The Focus III Terminal is a universal control terminal which can be used with other Kubota implements. It gives you full control of all functions from the tractor cab, shown on a high density digital color display. The Focus III terminal monitors and controls all necessary functions with all relevant parameters/information visible at a glance. The control box is also driving the binding automatically without any intervention from the operator.

0614_BV4160_BailChmbr_8434

Baling Chamber

Kubota BV4160 and BV4180 Premium bale chamber offers a combination of 3 rollers and 5 wide laced belts. This mixed chamber ensures a smooth bale start whatever the crop type, offering smooth bale rotation and reduced crop loss even in dry conditions. As the bale grows, the belt tensioning arm is subjected to steadily increasing resistance from two hydraulic cylinders and a spring tensioner – as the bale diameter grows, so does the bale's density.

0614_BV4160_ForkFeeder_8497

Fork Feeder

Kubota's BV4160 and BV4180 Premium models are fitted with an efficient fork feeder intake system. This system provides a direct feed into the bale chamber. The wide opening allows almost unrestricted intake capacity for a fast and efficient baling process. In conjunction with a crop deflector, the fork feeder ensures a consistent crop flow into the bale chamber, which ensures high density bales. These models come with a 79" pick-up.

0814_BV4160_Pickup_1618

High Capacity Pick-Up

These balers feature a 4 bar 79" heavy duty pickup. The low profile pickup is designed with closely spaced tines which provides for a very smooth flow of crop into the baler. This design provides unparalleled pickup capacity, from light windrows all the way up to heavy silage windrows, and can easily be seen from the tractor.


Specs & Compare

Compare Kubota Models
BV4180 PREM / PREMNET
40-60 Minimum PTO HP Required
SEE DEALERSHIP FOR PRICE
  • Length in.
    176" (4.5)
  • Width in.
    99" (2.5)
  • Height in.
    112" (2.8)
  • Weight lbs. (kg)
    5752-5952 (2609-2700)
  • Diameter Min in.
    31" (.8)
  • Diameter Max in.
    71" (1.8)
  • Bale Width in.
    47" (1.2)
  • Bale Formation
    5 Belts + 3 Rollers
  • Types of Belts
    Mato Plate
  • Bale Ramp
    Standard
  • Working Width in.
    79"
  • Number of Tine Rows
    112
  • Tine Spacing in.
    2.36"
  • Windguard
    Crop deflector
  • Pneumatic Gauge Wheel
    Standard
  • Tine to Tine Pickup
    65
  • Flare to Flare Pickup
    79
  • Lift
    Hydraulic
  • Lift Protection
    Radial Clutch
  • Fork Feeder
    Standard
  • Protection, Cam Clutch
    Standard
  • Driveline Chain
    100
  • 1 1/4" Main Drive Chain
    Standard
  • Wide Angle PTO Shaft
    Standard
  • Shear Bolt Protection
    Standard
  • Cam Clutch Protection
    Standard
  • Binding
    Net/Twine
  • Monitor
    Focus
  • Twine
    Double arm / N/A
  • ISOBUS
    Optional
  • Focus Terminal
    Standard
  • IsoMatch Tellus
    Optional
  • Hydraulic Outlets
    1SA + 1DA
  • Wheels and Axles | 31x13.5-15
    Standard
  • Wheels and Axles | 19.0/45-17
    Optional
  • PTO rpm
    Wide angle / 540
  • PTO Protection
    Slip clutch
  • Minimum PTO Horsepower Required HP/KW
    40 - 60
  • Build
  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

§The Manufacturer's Suggested Retail Price excludes tax, dealer fees, and optional equipment. The equipment shown is for illustrative purposes only and may not be base equipment.
