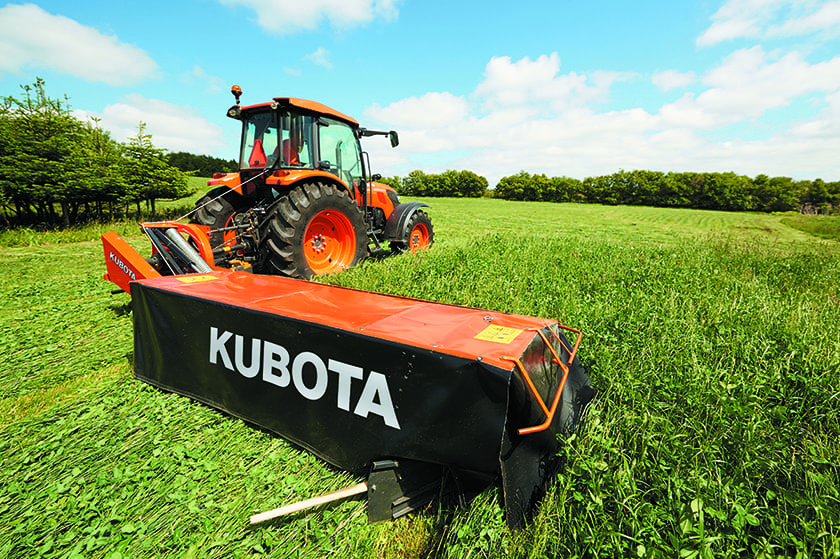

With a 9’ 2'' working width and flexible suspension, the Kubota DM2028 is ready to help you increase your productivity. An exclusive non stop breakaway system protects the fully welded cutterbar to avoid obstacles without having to stop. Transportation is streamlined with its fast lift and vertical fold functionality to tackle slopes and hills with ease. Read Disclaimer

Special Offers

discmowersdmseries_dm5000
DISC MOWER SERIES
Up to 0% A.P.R. for 48 Months on your new Kubota DM Series!
Details
Farmer Veteran Coalition Rebate
Customer instant rebate for Farmer Veteran Coalition members.
Details
Implement Stand Alone Financing
Stand Alone Financing Installment Program
Details

Features

07_Flexible-Suspension

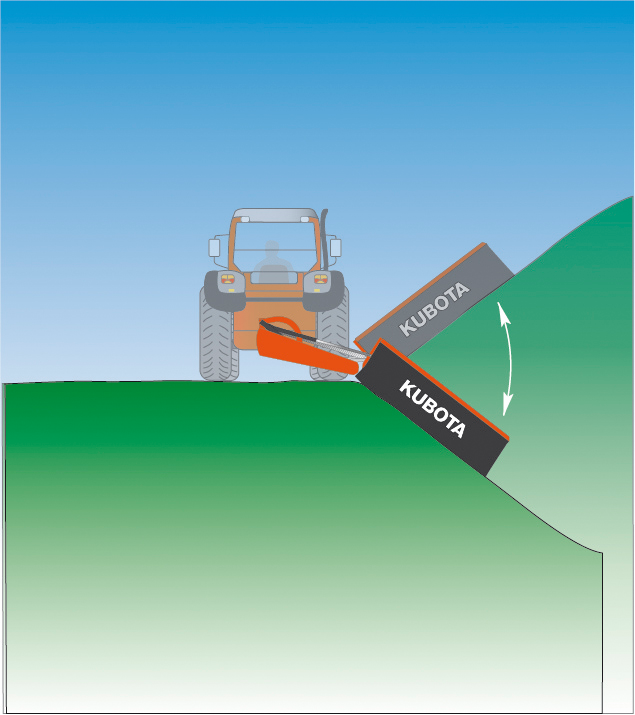

Flexible Suspension

Offering a flexible suspension, the DM2000 series is exceptionally well suited for work on slopes and in hilly conditions.

02_fully-welded-cutterbar

Fully Welded Cutterbar

The fully welded Kubota cutterbar with overlapping C-channels makes for a stiff and strong design, ensuring a high level of durability. The cutterbar’s design, with machined gears and large bearings along with low oil requirements, allows for a low working temperature for efficient oil cooling and lubrication of the entire cutterbar.

06_NonStop-BreakAway_01

Non-Stop Breakaway

When you hit an obstacle, the non-stop breakaway system will be activated and swing the machine backwards and over the obstacle and then return it to the original working position. No need to stop – no time lost.

04_Fast-lifting-on-headlands

Fast Lift on Headlands

The mower is easily lifted via a hydraulic cylinder without activating the tractor’s 3-point linkage. This causes less wear on the tractor and the machine, as the PTO stays in the same position, minimizing vibrations in the transmission.

_DSC9897-copy

Vertical Transport Position

When in transport, the mowers are folded to a vertical position well behind the tractor. The center of gravity is close to the tractor, which ensures excellent weight distribution and transport stability.

01_triangular-discs

Counter-Rotating Three-Bladed Discs

With three blades per disc Kubota mowers are constantly cutting. This means a third less load per blade; an even load on the drive; smoother power usage; and produces an even, cleanly cut stubble.

07_Flexible-Suspension

Flexible Suspension

Offering a flexible suspension, the DM2000 series is exceptionally well suited for work on slopes and in hilly conditions.

02_fully-welded-cutterbar

Fully Welded Cutterbar

The fully welded Kubota cutterbar with overlapping C-channels makes for a stiff and strong design, ensuring a high level of durability. The cutterbar’s design, with machined gears and large bearings along with low oil requirements, allows for a low working temperature for efficient oil cooling and lubrication of the entire cutterbar.

06_NonStop-BreakAway_01

Non-Stop Breakaway

When you hit an obstacle, the non-stop breakaway system will be activated and swing the machine backwards and over the obstacle and then return it to the original working position. No need to stop – no time lost.

04_Fast-lifting-on-headlands

Fast Lift on Headlands

The mower is easily lifted via a hydraulic cylinder without activating the tractor’s 3-point linkage. This causes less wear on the tractor and the machine, as the PTO stays in the same position, minimizing vibrations in the transmission.

_DSC9897-copy

Vertical Transport Position

When in transport, the mowers are folded to a vertical position well behind the tractor. The center of gravity is close to the tractor, which ensures excellent weight distribution and transport stability.

01_triangular-discs

Counter-Rotating Three-Bladed Discs

With three blades per disc Kubota mowers are constantly cutting. This means a third less load per blade; an even load on the drive; smoother power usage; and produces an even, cleanly cut stubble.


Specs & Compare

Compare Kubota Models
DM2028
50 Minimum PTO HP Required
SEE DEALERSHIP FOR PRICE
  • Cutting Width ft. (m)
    9' 2" (2.8)
  • Weight lbs. (kg)
    1345 (610)
  • Transport Width ft. (m)
    4' 7" (1.4)
  • Hitch (CAT)
    2
  • Pin Hitch
    540
  • PTO RPM
    50
  • Minimum PTO Horsepower Required HP/KW
    50/37
  • Number of Disc and Knives
    8 / 24
  • Remotes
    1
  • Cutterbar Operating Angle
    -35/+35
  • Stubble Height in. (mm)
    0.78"-1.97" (20-50)
  • BreakAway
    Not Available
  • Non-Stop BreakAway
    Standard
  • Overrun Clutch
    Standard
  • Swath Board (RH/LH)
    Standard
  • Swath Rollers (RH/LH)
    Optional/Not Available
  • High Skids +20/+40/+80 mm
    Optional
  • Lighting Kit
    Optional
  • Build
  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •
