DM1024

Disc Mowers Hay/Farm Implements

For Competitive Pricing
Refer to Dealer

Extended Warranty

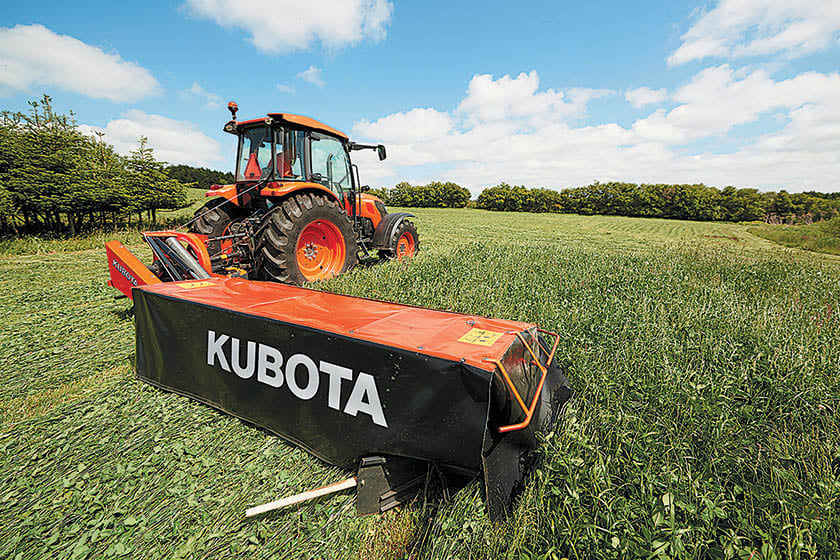

Effective and reliable, the Kubota DM1024 Disc Mower brings you a working width of 7’ 9” and the confidence you’re looking for in a hay tool. A hydraulic cylinder easily lifts the disc mower without utilizing the three-point linkage and when you’re transporting it to and from the field it nimbly folds into a vertical position.The spring loaded breakaway reduces damage from obstacles by protecting the cutterbar. Only requiring a minimum of 46 PTO, the DM 1024 utilizes three counter rotating disks allowing a smooth cut. Read Disclaimer

Special Offers

discmowersdmseries_dm5000
DISC MOWER SERIES
Up to 0% A.P.R. for 48 Months on your new Kubota DM Series!
Details
Farmer Veteran Coalition Rebate
Customer instant rebate for Farmer Veteran Coalition members.
Details
Implement Stand Alone Financing
Stand Alone Financing Installment Program
Details

Features

workingwidth

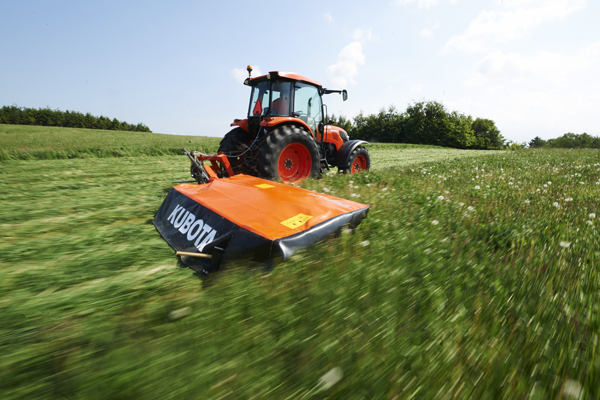

Available Working Widths

  • DM1017 – 5’6”
  • DM1022 – 7’2”
  • DM1024 – 7’9”
05_BreakAway

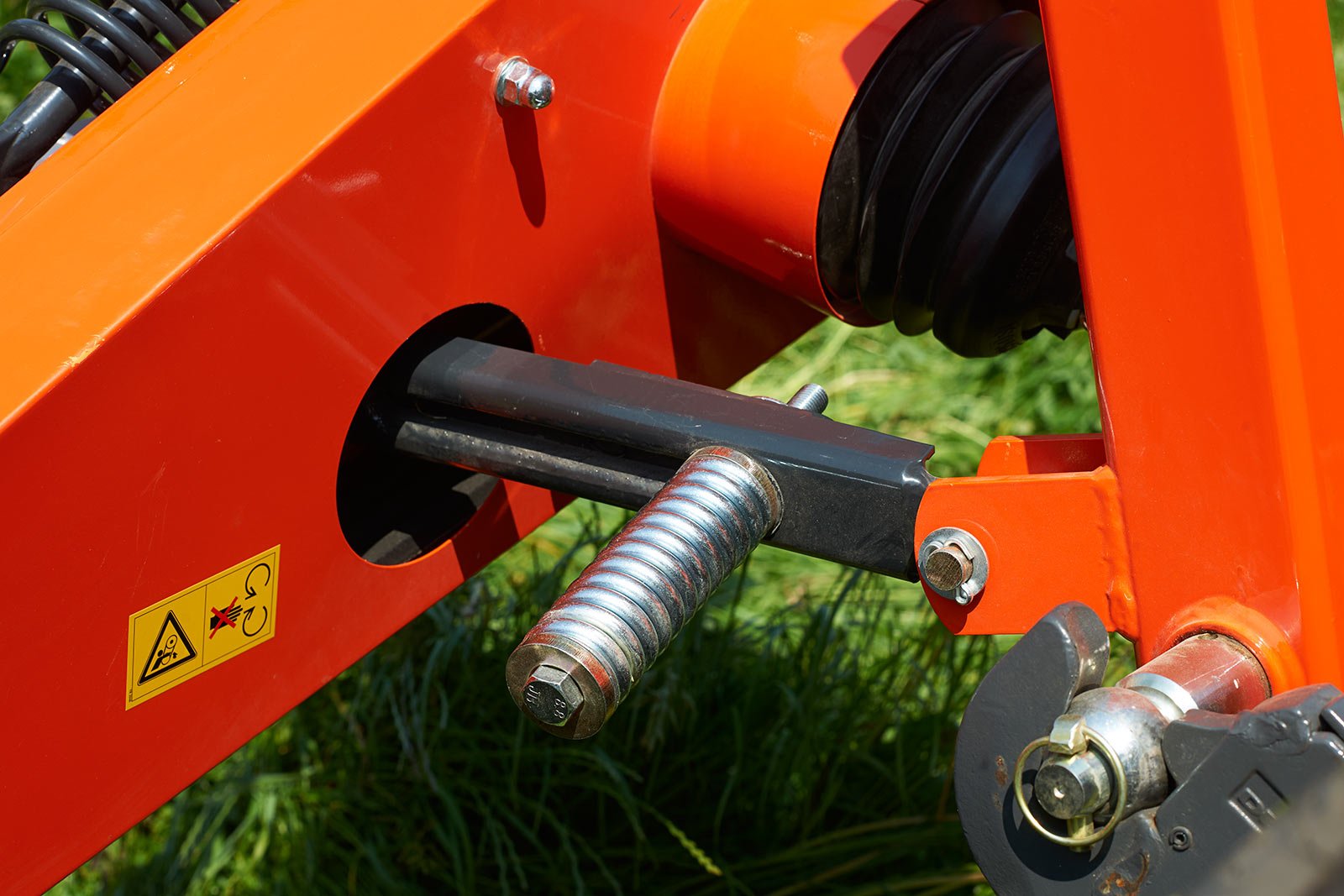

Spring Loaded Breakaway

When an obstacle is encountered, the DM1000 series swings backwards to protect the cutterbar; by reversing, the mower is reset into working position.

04_Fast-lifting-on-headlands

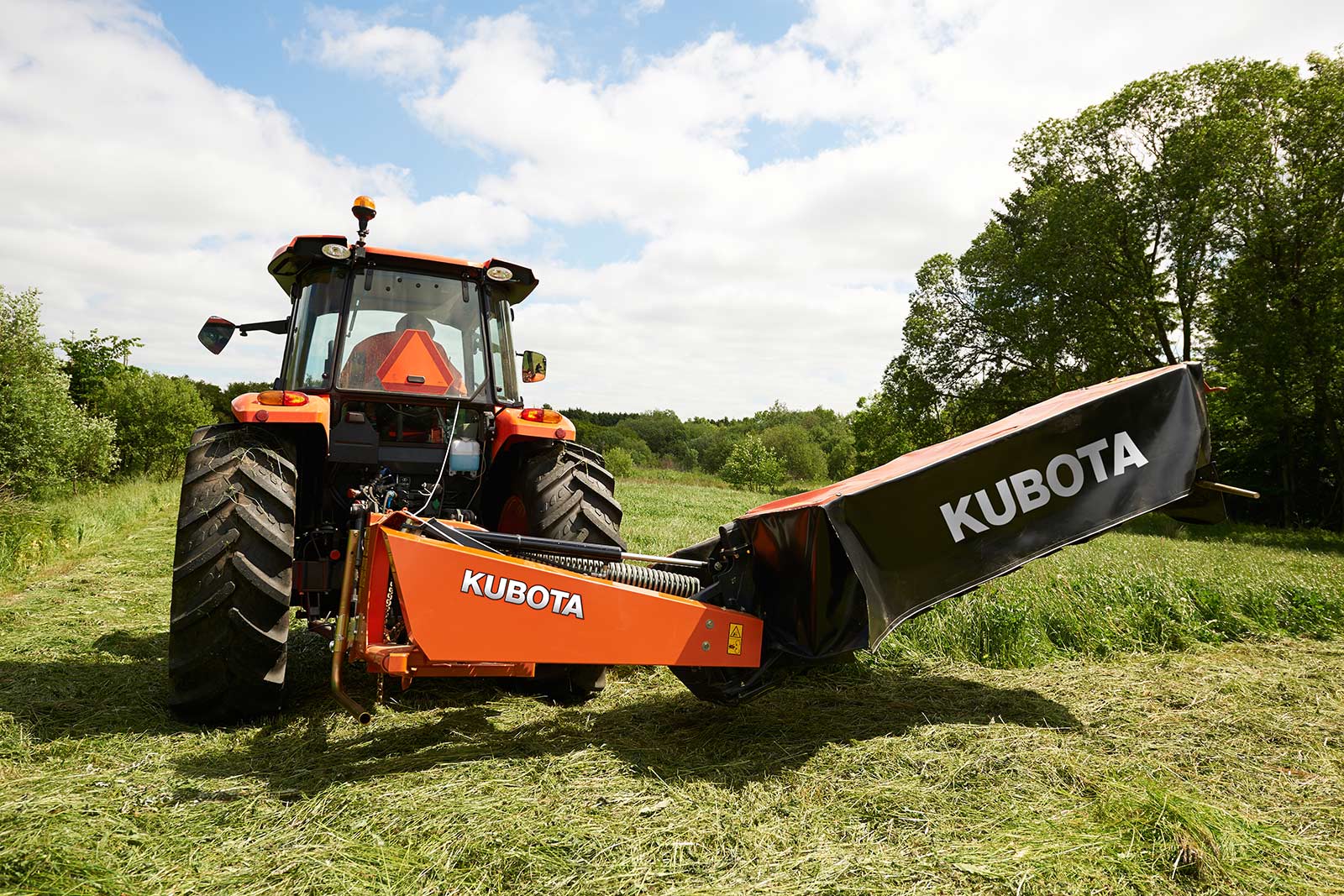

Fast Lift on Headlands

The mower is easily lifted via a hydraulic cylinder without activating the tractor’s 3-point linkage. This causes less wear on the tractor and the machine, as the PTO stays in the same position, minimizing vibrations in the transmission.

_DSC9897-copy

Vertical Transport Position

When in transport, the mowers are folded to a vertical position well behind the tractor. The center of gravity is close to the tractor, which ensures excellent weight distribution and transport stability.

01_triangular-discs

Counter-Rotating Three-Bladed Discs

With three blades per disc Kubota mowers are constantly cutting. This means a third less load per blade; an even load on the drive; smoother power usage; and produces an even, cleanly cut stubble.

workingwidth

Available Working Widths

  • DM1017 – 5’6”
  • DM1022 – 7’2”
  • DM1024 – 7’9”
05_BreakAway

Spring Loaded Breakaway

When an obstacle is encountered, the DM1000 series swings backwards to protect the cutterbar; by reversing, the mower is reset into working position.

04_Fast-lifting-on-headlands

Fast Lift on Headlands

The mower is easily lifted via a hydraulic cylinder without activating the tractor’s 3-point linkage. This causes less wear on the tractor and the machine, as the PTO stays in the same position, minimizing vibrations in the transmission.

_DSC9897-copy

Vertical Transport Position

When in transport, the mowers are folded to a vertical position well behind the tractor. The center of gravity is close to the tractor, which ensures excellent weight distribution and transport stability.

01_triangular-discs

Counter-Rotating Three-Bladed Discs

With three blades per disc Kubota mowers are constantly cutting. This means a third less load per blade; an even load on the drive; smoother power usage; and produces an even, cleanly cut stubble.


Specs & Compare

Compare Kubota Models
DM1024
46 Minimum PTO HP Required
SEE DEALERSHIP FOR PRICE
  • Cutting Width ft. (m)
    7' 9" (2.4)
  • Weight lbs. (kg)
    992 (450)
  • Transport Width ft. (m)
    3' 9" (1.2)
  • Hitch (CAT)
    2
  • Pin Hitch
    Not Available
  • PTO RPM
    540
  • Minimum PTO Horsepower Required HP/KW
    46/34
  • Number of Disc and Knives
    6/18
  • Remotes
    1
  • Cutterbar Operating Angle
    -45/+15
  • Stubble Height in. (mm)
    0.78"-1.97" (20-50)
  • BreakAway
    Standard
  • Non-Stop BreakAway
    N/A
  • Overrun Clutch
    Standard
  • Swath Board (RH/LH)
    Standard/Optional
  • Swath Rollers (RH/LH)
    Optional (RH)
  • High Skids +20/+40/+80 mm
    Optional
  • Lighting Kit
    Optional
  • Build
  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •
