WR1400

Wrappers

MSRP As Low As§
$28,843.00
(IMAGES MAY REFLECT A HIGHER MSRP)

Extended Warranty

With its low profile design, Kubota's WR1400 round bale wrapper efficiently works to better preserve your quality silage and hay. Choose between manual-cable or joystick controlled versions, both equipped to handle bales up to 2,650 pounds and 47" X 50" in size. A trailed turntable wrapper with a self-loading arm makes your job easier, especially with the widely spaced wheels.


Read Disclaimer

Special Offers

wrappers_wr1400m
WRAPPER SERIES
Up to 0% A.P.R. for 48 Months on your new Kubota WR Series!
Details
Farmer Veteran Coalition Rebate
Customer instant rebate for Farmer Veteran Coalition members.
Details
Implement Stand Alone Financing
Stand Alone Financing Installment Program
Details

Features

WR1400_pulltype

Easy To Operate

The Kubota WR1400 is a pull-type wrapper designed for smaller tractors. The machine is very easy to operate. A fully automatic film cutter comes standard on all models.

WR1400_turntable

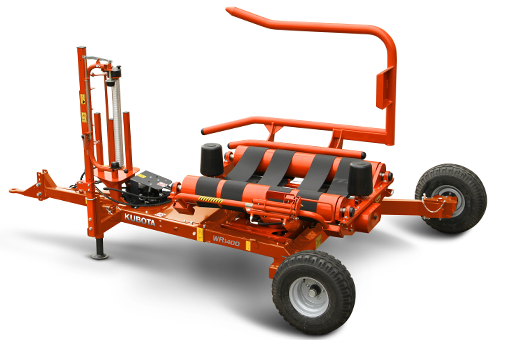

Turntable Principle

The turntable with two driven rollers is designed for high bale stability and smooth, even rotation. This ensures consistent bale rotation even in the most difficult of conditions.

WR1400_arm

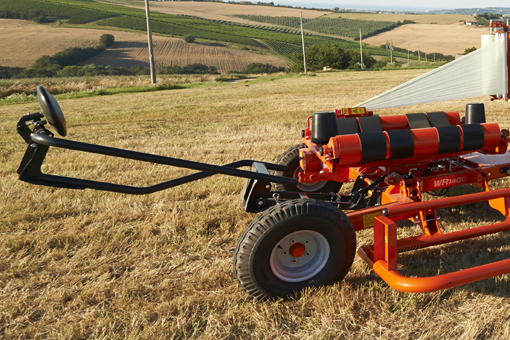

Extendable Wheel Arm

To allow for increased stability during bale loading, an extendable wheel arm was incorporated into the frame design. This allows bales up to 2650 lbs. to be loaded without any counter weight on the machine.

WR1400_Unload

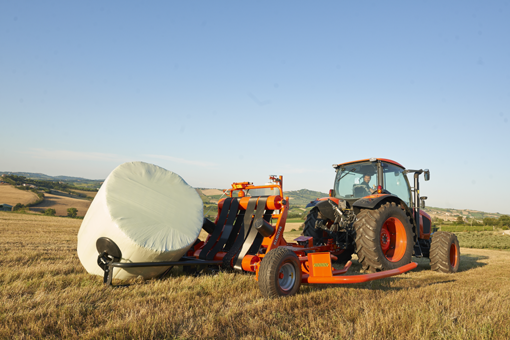

Gentle Unloading

Wide spaced wheels allow for an exceptionally low turntable height. This design allows the table to be tilted downward until it nearly touches the ground, reducing drop height when unloading bales. This provides the gentlest possible handling of wrapped bales. It reduces the chance of film damage and eliminates the need for a fall damper or drop mat. Additionally, it can be fitted with a bale on end kit, which allows the bale to be tipped off gently without damage to the bale.

WR1400_transport

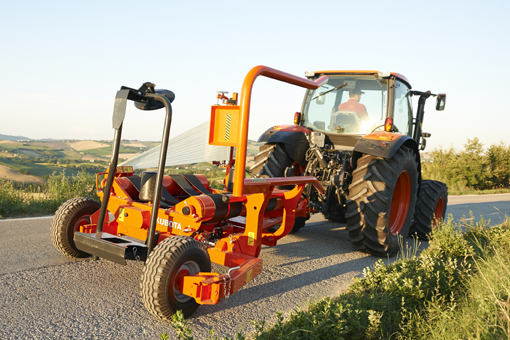

Narrow Transport Width

For narrow transport width, the right hand wheel is turned to the inside of the support arm.

WR1400_pulltype

Easy To Operate

The Kubota WR1400 is a pull-type wrapper designed for smaller tractors. The machine is very easy to operate. A fully automatic film cutter comes standard on all models.

WR1400_turntable

Turntable Principle

The turntable with two driven rollers is designed for high bale stability and smooth, even rotation. This ensures consistent bale rotation even in the most difficult of conditions.

WR1400_arm

Extendable Wheel Arm

To allow for increased stability during bale loading, an extendable wheel arm was incorporated into the frame design. This allows bales up to 2650 lbs. to be loaded without any counter weight on the machine.

WR1400_Unload

Gentle Unloading

Wide spaced wheels allow for an exceptionally low turntable height. This design allows the table to be tilted downward until it nearly touches the ground, reducing drop height when unloading bales. This provides the gentlest possible handling of wrapped bales. It reduces the chance of film damage and eliminates the need for a fall damper or drop mat. Additionally, it can be fitted with a bale on end kit, which allows the bale to be tipped off gently without damage to the bale.

WR1400_transport

Narrow Transport Width

For narrow transport width, the right hand wheel is turned to the inside of the support arm.


Specs & Compare

Compare Kubota Models
WR1400
Requires a hydraulic system with at least 7.5 GPM
MSRP AS LOW AS§
$28,843.00
  • Transport Length ft.
    14.17'
  • Transport Width ft.
    8.25'
  • Transport Height in.
    76"
  • Weight lbs. (kg)
    2249
  • Max Bale Size (L x D) in.
    47" x 50"
  • Max Bale Weight lbs.
    2650
  • Mounted Wrapper
    Not Available
  • Pull-Type Wrapper
    Standard
  • Support Rollers/Belts (number)
    2/4
  • Automatic Film Cutter
    Standard
  • Max. Wrapping Speed rpm.
    30
  • 1 Pre-Stretcher 750mm
    Standard
  • Pre-Stretcher 29.5" (750mm)
    Standard
  • Manual Cable Control (M)
    Standard
  • Electro Hydraulic Joystick (J)
    Standard
  • Programmable Computer (C)
    Not Available
  • Remote Control (C)
    Not Available
  • Oil Consumption (l/min)
    28
  • Wheels and Axles | 10.0/80-12
    Standard
  • Fill Roll Magazine
    Optional
  • Adapter Kit for 20" (500mm) Film Spool
    Optional
  • Bale and Wrap Counter
    Standard
  • Auto-Stop at End of Wrapping Cycle
    Standard
  • Film End/Tear Sensor (C)
    Not Available
  • Road Lights
    Optional
  • Build
  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •
