TE4052T

Tedders Hay/Farm Implements

For Competitive Pricing
Refer to Dealer

Extended Warranty

Kubota's TE4052T unique frame design and working width of 17’1” ensure a great haymaking experience. The four rotors, in combination with a wide overlap, provide smooth forage pickup and even distribution. With a strong metal chassis and low power/weight requirements, the TE4052T has outstanding longevity.

Read Disclaimer

Special Offers

tedders_te4052t
TEDDER SERIES
Up to 0% A.P.R. for 48 Months on your new Kubota TE Series!
Details
Farmer Veteran Coalition Rebate
Customer instant rebate for Farmer Veteran Coalition members.
Details
Implement Stand Alone Financing
Stand Alone Financing Installment Program
Details

Features

04_Strong-chassis-design

Strong Chassis Design

All Kubota tedders are built around a rugged, CNC bend, box chassis made out of one piece of metal with only one welding seam for maximum rigidity. The chassis design is fully enclosed at the top edge for maximum strength.

03_Super-C-Tine

Super-C Tine

The symmetric Kubota Super-C tines efficiently pick up the crop from two different areas. As it spreads the crop, the crop is inverted so the lower crop is placed on the top, giving a more even dry down. The crop is then spread evenly across the width of the machine for consistent drying. These tines are made of 0.39" shot-peened spring steel. Our spring coil diameter has a 20% larger diameter than conventional designs. This increases each tine service life, even when tedding heavy, high moisture crops.

0614_TedderGearBox_2810

Rotor Gearbox

These Kubota tedder models have a maintenance-free, oil-immersed gearbox, which means less time required for servicing and more time in the field. The gearboxes are integrated into the frame, making them extremely durable. Because they are not part of the frame structure, but are mounted within the actual frame, the gearbox is relieved of frame stresses.

_DSC0287-copy

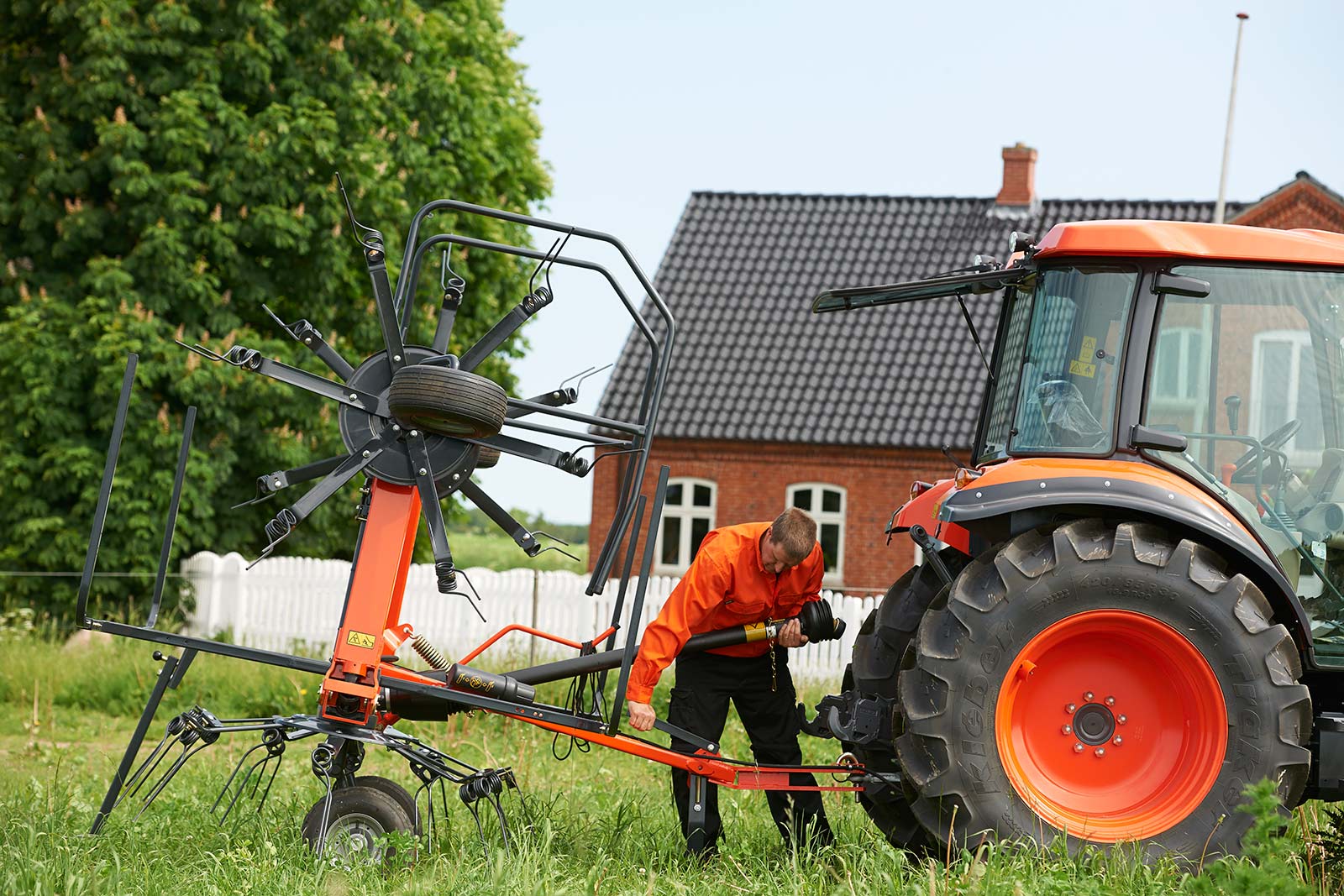

Pull Type Version

Pull-type design with low weight and power requirements. The low weight of 904 lbs. is ideal for applications with small tractors, or in hilly terrain.

04_Strong-chassis-design

Strong Chassis Design

All Kubota tedders are built around a rugged, CNC bend, box chassis made out of one piece of metal with only one welding seam for maximum rigidity. The chassis design is fully enclosed at the top edge for maximum strength.

03_Super-C-Tine

Super-C Tine

The symmetric Kubota Super-C tines efficiently pick up the crop from two different areas. As it spreads the crop, the crop is inverted so the lower crop is placed on the top, giving a more even dry down. The crop is then spread evenly across the width of the machine for consistent drying. These tines are made of 0.39" shot-peened spring steel. Our spring coil diameter has a 20% larger diameter than conventional designs. This increases each tine service life, even when tedding heavy, high moisture crops.

0614_TedderGearBox_2810

Rotor Gearbox

These Kubota tedder models have a maintenance-free, oil-immersed gearbox, which means less time required for servicing and more time in the field. The gearboxes are integrated into the frame, making them extremely durable. Because they are not part of the frame structure, but are mounted within the actual frame, the gearbox is relieved of frame stresses.

_DSC0287-copy

Pull Type Version

Pull-type design with low weight and power requirements. The low weight of 904 lbs. is ideal for applications with small tractors, or in hilly terrain.


Specs & Compare

Compare Kubota Models
TE4052T
20 Minimum PTO HP Required
SEE DEALERSHIP FOR PRICE
  • Working Width ft. (m)
    17' 1" (5.2)
  • Tedding Width ft. (m)
    17' 9" (5.4)
  • Transport Width ft. (m)
    9' 6" (2.9)
  • Storage Height ft. (m)
    8' "8" (2.65)
  • Weight lbs. (kg)
    904 (410)
  • Linkage Drawbar
    Standard
  • Number of Rotors
    4
  • Number of Tine Arms/Rotors
    6
  • Tine Adjustment System
    Standard
  • Reduction Gearbox for Night Windrows
    Optional
  • Wheels (4)
    16x6.5-8
  • Wheels with Integrated Lighting
    Optional
  • Build
  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

§The Manufacturer's Suggested Retail Price excludes tax, dealer fees, and optional equipment. The equipment shown is for illustrative purposes only and may not be base equipment.
