TE10511C

Tedders

MSRP As Low As§
$49,949.00
(IMAGES MAY REFLECT A HIGHER MSRP)

Extended Warranty

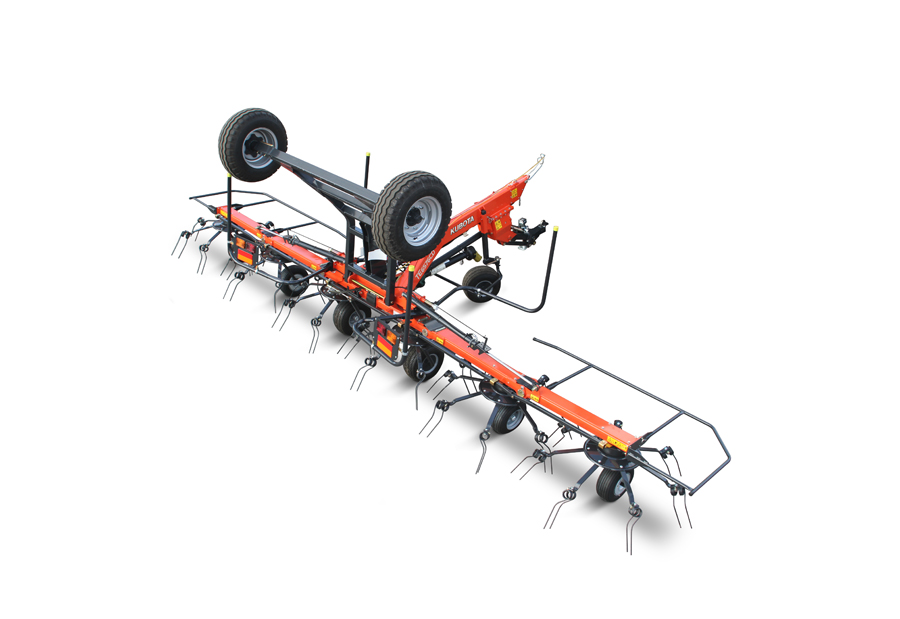

The premier tedder experience is easily found in the Kubota TE10511C and its 36’ 9” working width makes haymaking efficient! The tedder’s Super-C tines spread the crop in an inverted fashion, meaning the lower crop is placed on top, providing you with an even dry down. Kubota’s commitment to durability is showcased in the tedder’s rotor gearbox and chassis, and with a transport width of just 9’ 7”, you’ll swear the TE10511C is your new best friend. Read Disclaimer

Special Offers

tedders_te4052t
TEDDER SERIES
Up to 0% A.P.R. for 48 Months on your new Kubota TE Series!
Details
Farmer Veteran Coalition Rebate
Customer instant rebate for Farmer Veteran Coalition members.
Details
Implement Stand Alone Financing
Stand Alone Financing Installment Program
Details

Features

0614_TE6583_Transport_6991

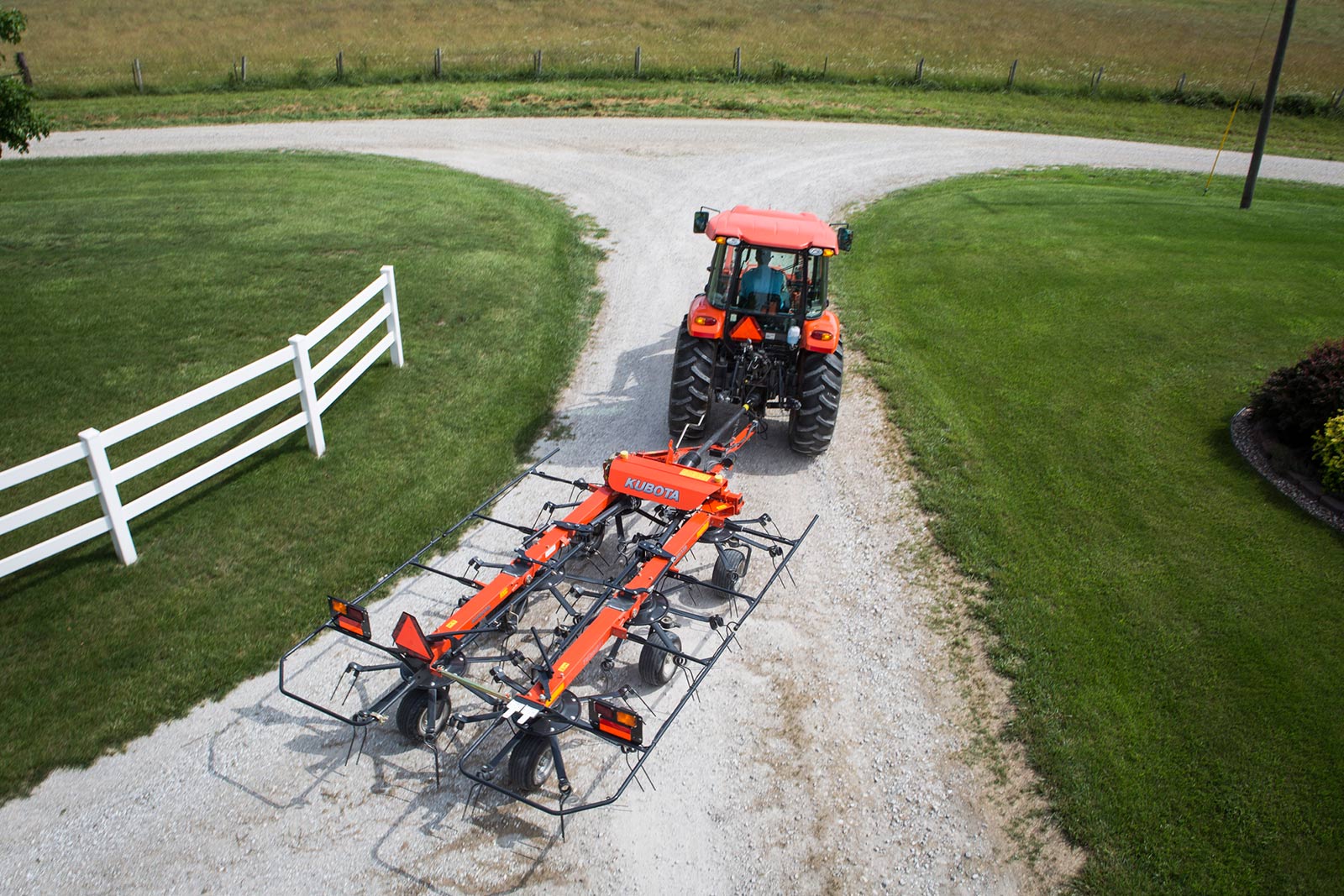

Easy Transport

Kubota's TE10511C is easily converted from working to transport position. Wheels are fixed during transport for smooth and stable running. This can all be done from the tractor seat, only requiring on 1 set of hydraulic outlets. Model is approved for 25 mph.

04_Strong-chassis-design

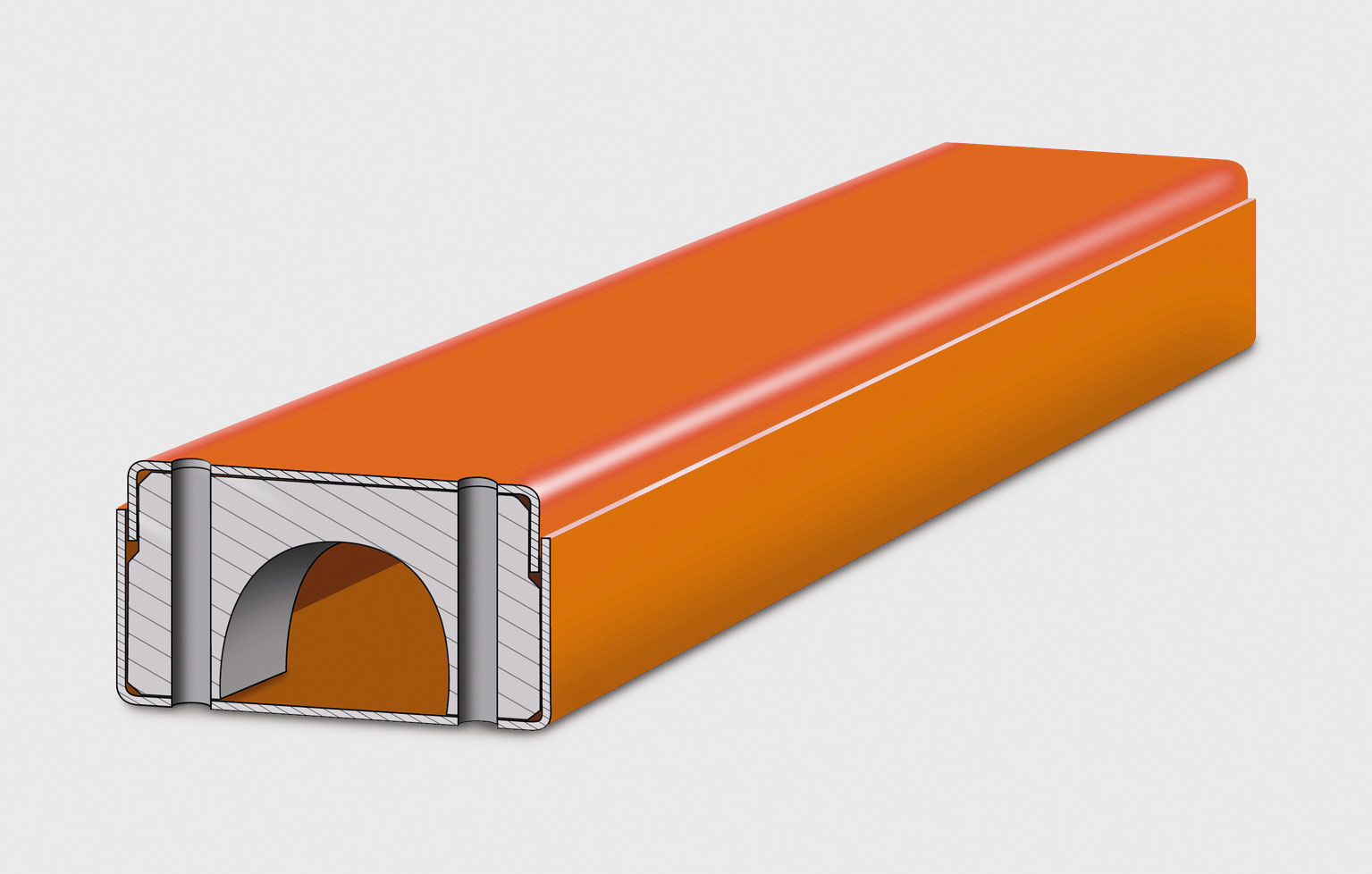

Strong Chassis Design

All Kubota tedders are built around a rugged, CNC bend, box chassis made out of one piece of metal with only one welding seam for maximum rigidity. The chassis design is fully enclosed at the top edge for maximum strength.

03_Super-C-Tine

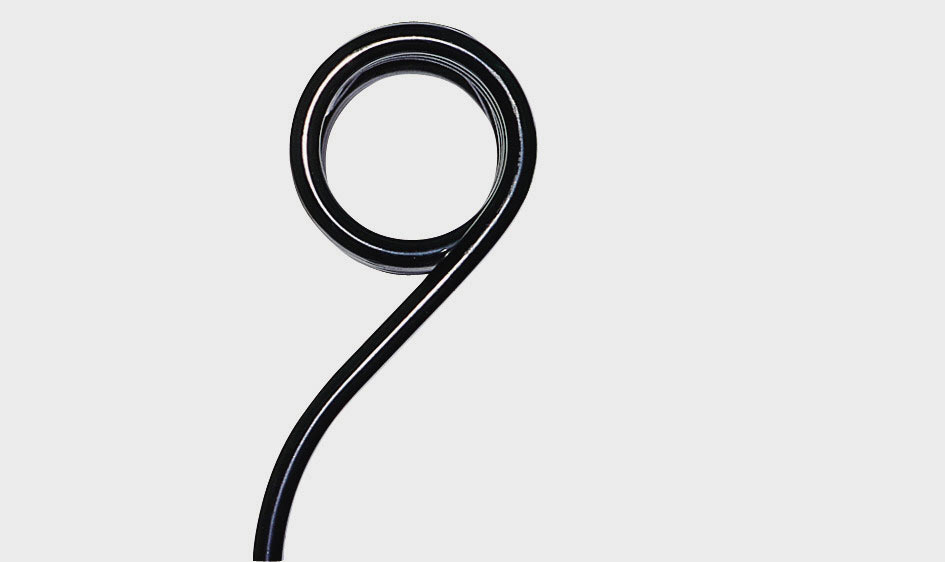

Super-C Tine

The symmetric Kubota Super-C tines efficiently pick up the crop from two different areas. As it spreads the crop, the crop is inverted so the lower crop is placed on the top, giving a more even dry down. The crop is then spread evenly across the width of the machine for consistent drying. These tines are made of 0.39" shot-peened spring steel. Our spring coil diameter has a 20% larger diameter than conventional designs. This increases each tine service life, even when tedding heavy, high moisture crops.

0614_TedderGearBox_2810

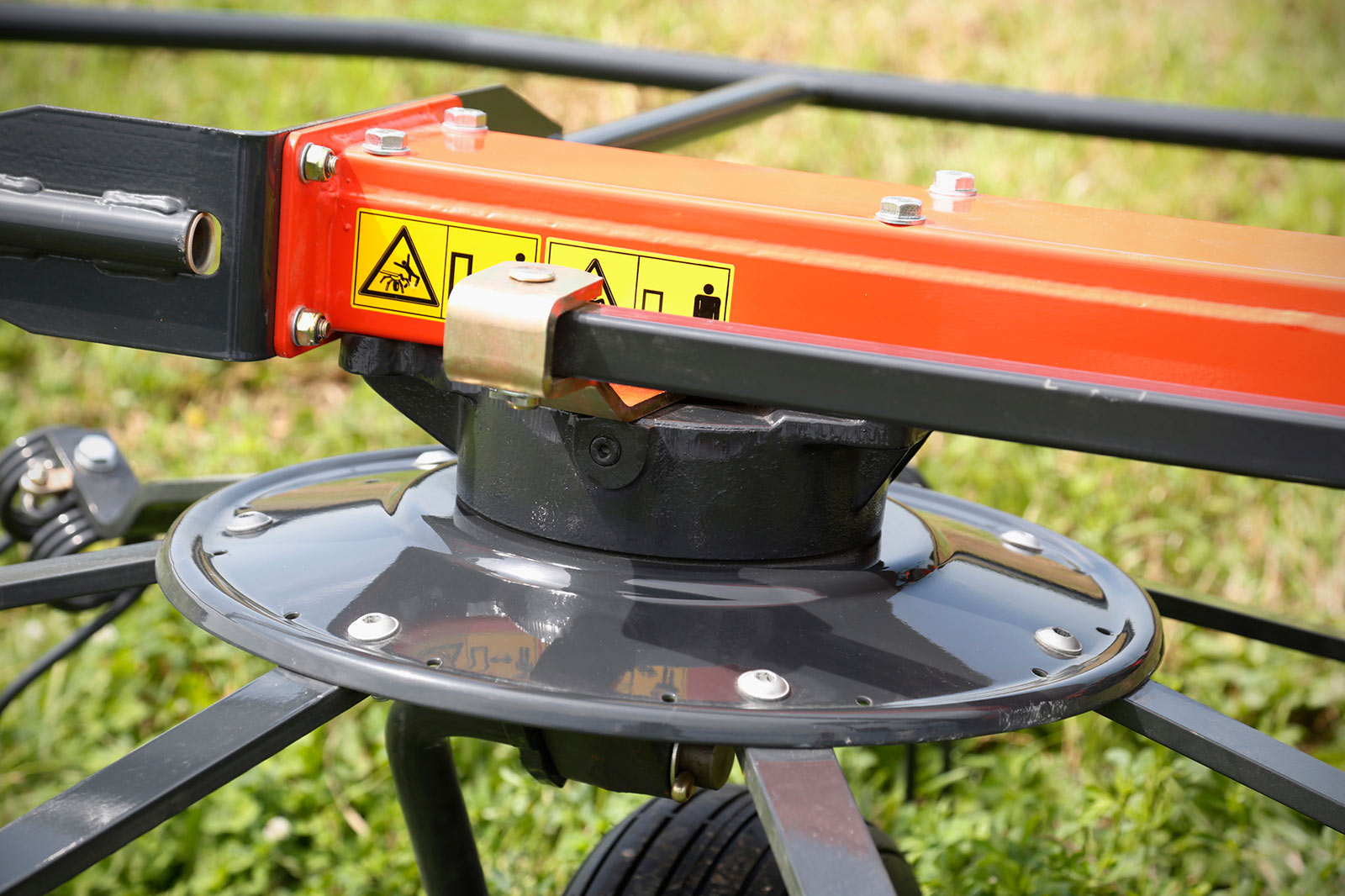

Rotor Gearbox

These Kubota tedder models have a maintenance-free, oil-immersed gearbox, which means less time required for servicing and more time in the field. The gearboxes are integrated into the frame, making them extremely durable. Because they are not part of the frame structure, but are mounted within the actual frame, the gearbox is relieved of frame stresses.

TE6583T-Large-Working-Width

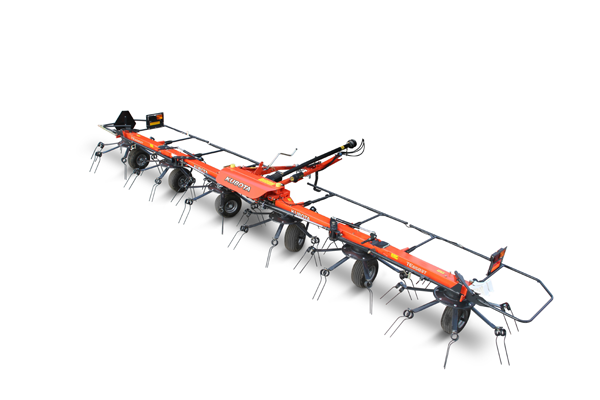

Large Working Widths

Even with large working widths, due to their trailed design these tedders are still ideal for lower horsepower tractors. This minimizes compaction and operating costs – certainly a great advantage in times of escalating fuel and labor costs.

  • TE6583T – 27'3"
  • TE8590C – 29'6"
  • TE8511T – 36’1”
  • TE10511C – 36'9"
0614_TE6583_Transport_6991

Easy Transport

Kubota's TE10511C is easily converted from working to transport position. Wheels are fixed during transport for smooth and stable running. This can all be done from the tractor seat, only requiring on 1 set of hydraulic outlets. Model is approved for 25 mph.

04_Strong-chassis-design

Strong Chassis Design

All Kubota tedders are built around a rugged, CNC bend, box chassis made out of one piece of metal with only one welding seam for maximum rigidity. The chassis design is fully enclosed at the top edge for maximum strength.

03_Super-C-Tine

Super-C Tine

The symmetric Kubota Super-C tines efficiently pick up the crop from two different areas. As it spreads the crop, the crop is inverted so the lower crop is placed on the top, giving a more even dry down. The crop is then spread evenly across the width of the machine for consistent drying. These tines are made of 0.39" shot-peened spring steel. Our spring coil diameter has a 20% larger diameter than conventional designs. This increases each tine service life, even when tedding heavy, high moisture crops.

0614_TedderGearBox_2810

Rotor Gearbox

These Kubota tedder models have a maintenance-free, oil-immersed gearbox, which means less time required for servicing and more time in the field. The gearboxes are integrated into the frame, making them extremely durable. Because they are not part of the frame structure, but are mounted within the actual frame, the gearbox is relieved of frame stresses.

TE6583T-Large-Working-Width

Large Working Widths

Even with large working widths, due to their trailed design these tedders are still ideal for lower horsepower tractors. This minimizes compaction and operating costs – certainly a great advantage in times of escalating fuel and labor costs.

  • TE6583T – 27'3"
  • TE8590C – 29'6"
  • TE8511T – 36’1”
  • TE10511C – 36'9"

Specs & Compare

Compare Kubota Models
TE10511C
70 Minimum PTO HP Required
MSRP AS LOW AS§
$49,949.00
  • FarmLine
    Standard
  • ProLine
    N/A
  • Working Width ft. (m)
    36' 9
  • Width, Working Position ft.
    38' 5
  • Transport Width ft. (m)
    9' 7
  • Transport Length ft. (m)
    13' 10
  • Storage Height ft. (m)
    12' 11
  • Weight lbs. (kg)
    4905 (2225)
  • Capacity Theor. acres/h
    N/A
  • Three-Point, Tracking
    N/A
  • Linkage Drawbar
    N/A
  • Two-Point, Linkage Arms
    Cat ll
  • Vibration Damper/Integral Lock
    Standard
  • Number of Rotors
    10
  • Number of Tine Arms/Rotors
    7
  • Tine Adjustment System
    N/A
  • Adjustment of Spreading Angle
    Standard
  • Cab Contr. Border Clearing System, Mech.
    N/A
  • Cab Contr. Border Clearing System, Hydr.
    Standard
  • Reduction Gearbox for Night Windrows
    Optional
  • Wheels (4)
    N/A
  • Tires on Central Unit
    N/A
  • Front Wheel (16x6.50-8)
    Standard
  • Tandem Axles
    Optional
  • Warning Panels
    Standard
  • Warning Panels with Integr. Lighting
    Standard
  • Build
  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •
