TE6583T

Tedders Hay/Farm Implements

For Competitive Pricing
Refer to Dealer

Extended Warranty

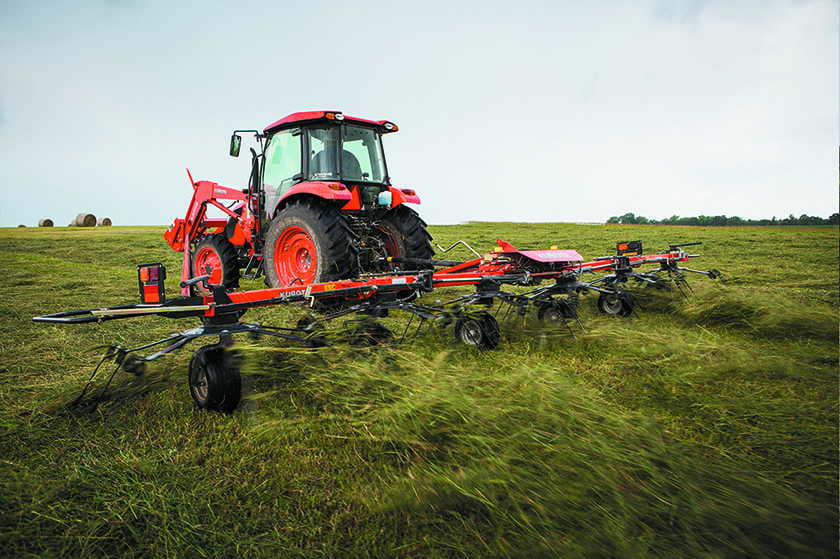

Stretch those arms out with the Kubota TE6583T Tedder! Featuring a working width of 27’ 3” and less horsepower required to operate, this Tedder saves you time and money in the long run. The TE6583T lets you maximize your productivity with its wide working width and easy transportation to and from the field, folding the tedder from the comfort of your tractor’s seat. The tedder’s chassis, rotor gearbox and Super-C tine are all built with the long-haul in mind. Read Disclaimer

Special Offers

tedders_te4052t
TEDDER SERIES
Up to 0% A.P.R. for 48 Months on your new Kubota TE Series!
Details
Farmer Veteran Coalition Rebate
Customer instant rebate for Farmer Veteran Coalition members.
Details
Implement Stand Alone Financing
Stand Alone Financing Installment Program
Details

Features

0614_TE6583_Transport_6991

Easy Transport

Kubota's TE6583T and TE8511T are both easily converted from working to transport position. Wheels are fixed during transport for smooth and stable running. This can all be done from the tractor seat, only requiring on 1 set of hydraulic outlets. Both models are approved for 25 mph.

04_Strong-chassis-design

Strong Chassis Design

All Kubota tedders are built around a rugged, CNC bend, box chassis made out of one piece of metal with only one welding seam for maximum rigidity. The chassis design is fully enclosed at the top edge for maximum strength.

03_Super-C-Tine

Super-C Tine

The symmetric Kubota Super-C tines efficiently pick up the crop from two different areas. As it spreads the crop, the crop is inverted so the lower crop is placed on the top, giving a more even dry down. The crop is then spread evenly across the width of the machine for consistent drying. These tines are made of 0.39" shot-peened spring steel. Our spring coil diameter has a 20% larger diameter than conventional designs. This increases each tine service life, even when tedding heavy, high moisture crops.

0614_TedderGearBox_2810

Rotor Gearbox

These Kubota tedder models have a maintenance-free, oil-immersed gearbox, which means less time required for servicing and more time in the field. The gearboxes are integrated into the frame, making them extremely durable. Because they are not part of the frame structure, but are mounted within the actual frame, the gearbox is relieved of frame stresses.

TE6583T-Large-Working-Width

Large Working Widths

Even with large working widths, due to their trailed design these tedders are still ideal for lower horsepower tractors. This minimizes compaction and operating costs – certainly a great advantage in times of escalating fuel and labor costs.

  • TE6583T – 27'3"
  • TE8590C – 29'6"
  • TE8511T – 36’1”
  • TE10511C – 36'9"
0614_TE6583_Transport_6991

Easy Transport

Kubota's TE6583T and TE8511T are both easily converted from working to transport position. Wheels are fixed during transport for smooth and stable running. This can all be done from the tractor seat, only requiring on 1 set of hydraulic outlets. Both models are approved for 25 mph.

04_Strong-chassis-design

Strong Chassis Design

All Kubota tedders are built around a rugged, CNC bend, box chassis made out of one piece of metal with only one welding seam for maximum rigidity. The chassis design is fully enclosed at the top edge for maximum strength.

03_Super-C-Tine

Super-C Tine

The symmetric Kubota Super-C tines efficiently pick up the crop from two different areas. As it spreads the crop, the crop is inverted so the lower crop is placed on the top, giving a more even dry down. The crop is then spread evenly across the width of the machine for consistent drying. These tines are made of 0.39" shot-peened spring steel. Our spring coil diameter has a 20% larger diameter than conventional designs. This increases each tine service life, even when tedding heavy, high moisture crops.

0614_TedderGearBox_2810

Rotor Gearbox

These Kubota tedder models have a maintenance-free, oil-immersed gearbox, which means less time required for servicing and more time in the field. The gearboxes are integrated into the frame, making them extremely durable. Because they are not part of the frame structure, but are mounted within the actual frame, the gearbox is relieved of frame stresses.

TE6583T-Large-Working-Width

Large Working Widths

Even with large working widths, due to their trailed design these tedders are still ideal for lower horsepower tractors. This minimizes compaction and operating costs – certainly a great advantage in times of escalating fuel and labor costs.

  • TE6583T – 27'3"
  • TE8590C – 29'6"
  • TE8511T – 36’1”
  • TE10511C – 36'9"

Specs & Compare

Compare Kubota Models
TE6583T
35 Minimum PTO HP Required
SEE DEALERSHIP FOR PRICE
  • FarmLine
    Standard
  • ProLine
    N/A
  • Working Width ft. (m)
    27' 3" (8.3)
  • Width, Working Position ft.
    28' 5" (8.7)
  • Transport Width ft. (m)
    9' 10" (2.9)
  • Transport Length ft. (m)
    17' 9" (5.4)
  • Storage Height ft. (m)
    4' 1" (1.2)
  • Weight lbs. (kg)
    1984 (900)
  • Capacity Theor. acres/h
    16.3
  • Three-Point, Tracking
    N/A
  • Linkage Drawbar
    Standard
  • Two-Point, Linkage Arms
    N/A
  • Vibration Damper/Integral Lock
    N/A
  • Number of Rotors
    6
  • Number of Tine Arms/Rotors
    7
  • Tine Adjustment System
    Standard
  • Adjustment of Spreading Angle
    N/A
  • Cab Contr. Border Clearing System, Mech.
    N/A
  • Cab Contr. Border Clearing System, Hydr.
    Optional
  • Reduction Gearbox for Night Windrows
    Optional
  • Wheels (4)
    18x8.5-8
  • Tires on Central Unit
    N/A
  • Front Wheel (16x6.50-8)
    N/A
  • Tandem Axles
    N/A
  • Warning Panels
    N/A
  • Warning Panels with Integr. Lighting
    Standard
  • Build
  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

§The Manufacturer's Suggested Retail Price excludes tax, dealer fees, and optional equipment. The equipment shown is for illustrative purposes only and may not be base equipment.
