TE6576CD

Tedders Hay/Farm Implements

For Competitive Pricing
Refer to Dealer

Extended Warranty

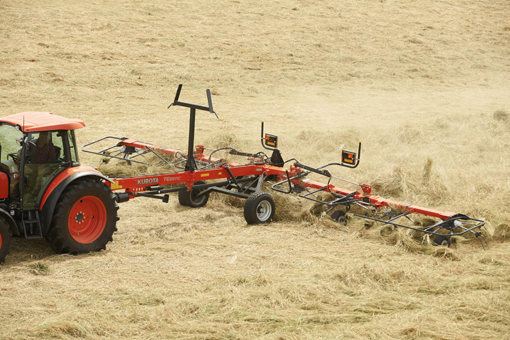

To harvest the highest quality hay, look to the Kubota TE6576CD. A maintenance-free, oil immersed gearbox relieves the rugged box chassis of stress and means less time servicing your tedder and more time out in the field. Don’t let the 24’ 11” working width intimidate you, the carried drawbar makes transport easy with a transport width of 9’9” and hydraulically folded in wheels. The TE6576CD’s pulled tailbar is ideal for lower horsepower tractors and can accomplish so much in your hay drying process. Read Disclaimer

Special Offers

tedders_te4052t
TEDDER SERIES
Up to 0% A.P.R. for 48 Months on your new Kubota TE Series!
Details
Farmer Veteran Coalition Rebate
Customer instant rebate for Farmer Veteran Coalition members.
Details
Implement Stand Alone Financing
Stand Alone Financing Installment Program
Details

Features

TE8511C_Transport

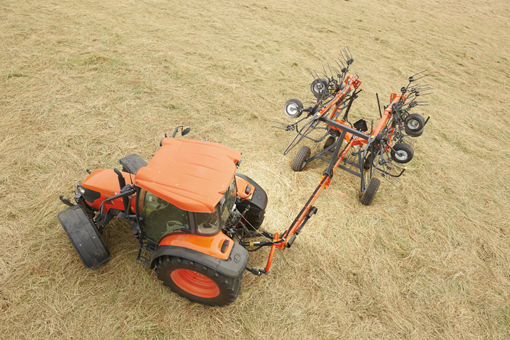

Unique Transport Solution

Switching working to transport is fast and easy. The TE6576CD's transport wheels fold hydraulically toward the center of the machine, providing a low center of gravity for improved balance. When it’s time to transport the TE8511C to the next field, the outer rotors are folded forward onto a carrier frame. The carrier frame allows the tedder to move forward quickly and easily from one field to another. Both models have a transport width of 9'9".

04_Strong-chassis-design

Strong Chassis Design

All Kubota tedders are built around a rugged, CNC bend, box chassis made out of one piece of metal with only one welding seam for maximum rigidity. The chassis design is fully enclosed at the top edge for maximum strength.

03_Super-C-Tine

Super-C Tine

The symmetric Kubota Super-C tines efficiently pick up the crop from two different areas. As it spreads the crop, the crop is inverted so the lower crop is placed on the top, giving a more even dry down. The crop is then spread evenly across the width of the machine for consistent drying. These tines are made of 0.39" shot-peened spring steel. Our spring coil diameter has a 20% larger diameter than conventional designs. This increases each tine service life, even when tedding heavy, high moisture crops.

0614_TedderGearBox_2810

Rotor Gearbox

These Kubota tedder models have a maintenance-free, oil-immersed gearbox, which means less time required for servicing and more time in the field. The gearboxes are integrated into the frame, making them extremely durable. Because they are not part of the frame structure, but are mounted within the actual frame, the gearbox is relieved of frame stresses.

High Performance, Low Input

High Performance, Low Input

The TE6576CD and TE8511C offer working widths of 24'11" and 36'1" respectively. With a pull type drawbar on the TE6576CD and a 2-pt hitch on the TE8511C, they are easy to attach to your tractor. They are still ideal for low horsepower tractors due to their trailed design, which minimizes compaction and operating cost.

TE8511C_Transport

Unique Transport Solution

Switching working to transport is fast and easy. The TE6576CD's transport wheels fold hydraulically toward the center of the machine, providing a low center of gravity for improved balance. When it’s time to transport the TE8511C to the next field, the outer rotors are folded forward onto a carrier frame. The carrier frame allows the tedder to move forward quickly and easily from one field to another. Both models have a transport width of 9'9".

04_Strong-chassis-design

Strong Chassis Design

All Kubota tedders are built around a rugged, CNC bend, box chassis made out of one piece of metal with only one welding seam for maximum rigidity. The chassis design is fully enclosed at the top edge for maximum strength.

03_Super-C-Tine

Super-C Tine

The symmetric Kubota Super-C tines efficiently pick up the crop from two different areas. As it spreads the crop, the crop is inverted so the lower crop is placed on the top, giving a more even dry down. The crop is then spread evenly across the width of the machine for consistent drying. These tines are made of 0.39" shot-peened spring steel. Our spring coil diameter has a 20% larger diameter than conventional designs. This increases each tine service life, even when tedding heavy, high moisture crops.

0614_TedderGearBox_2810

Rotor Gearbox

These Kubota tedder models have a maintenance-free, oil-immersed gearbox, which means less time required for servicing and more time in the field. The gearboxes are integrated into the frame, making them extremely durable. Because they are not part of the frame structure, but are mounted within the actual frame, the gearbox is relieved of frame stresses.

High Performance, Low Input

High Performance, Low Input

The TE6576CD and TE8511C offer working widths of 24'11" and 36'1" respectively. With a pull type drawbar on the TE6576CD and a 2-pt hitch on the TE8511C, they are easy to attach to your tractor. They are still ideal for low horsepower tractors due to their trailed design, which minimizes compaction and operating cost.


Specs & Compare

Compare Kubota Models
TE6576CD
40 Minimum PTO HP Required
SEE DEALERSHIP FOR PRICE
  • FarmLine
    N/A
  • ProLine
    Standard
  • Working Width ft. (m)
    24' 11" (7.6)
  • Width, Working Position ft.
    25' 7" (7.8)
  • Transport Width ft. (m)
    9' 9" (2.9)
  • Transport Length ft. (m)
    14' 9" (4.5)
  • Storage Height ft. (m)
    13' 2" (4)
  • Weight lbs. (kg)
    2646 (1200)
  • Capacity Theor. acres/h
    15.1
  • Three-Point, Tracking
    N/A
  • Linkage Drawbar
    N/A
  • Two-Point, Linkage Arms
    Cat II
  • Vibration Damper/Integral Lock
    N/A
  • Number of Rotors
    8
  • Number of Tine Arms/Rotors
    7
  • Tine Adjustment System
    Standard
  • Adjustment of Spreading Angle
    Standard
  • Cab Contr. Border Clearing System, Mech.
    N/A
  • Cab Contr. Border Clearing System, Hydr.
    Standard
  • Reduction Gearbox for Night Windrows
    Optional
  • Wheels (4)
    16x6.5-8
  • Tires on Central Unit
    18.5x8.5-8
  • Front Wheel (16x6.50-8)
    Standard
  • Tandem Axles
    N/A
  • Warning Panels
    N/A
  • Warning Panels with Integr. Lighting
    Standard
  • Build
  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •
