RA2577

Rakes Hay/Farm Implements

For Competitive Pricing
Refer to Dealer

Extended Warranty

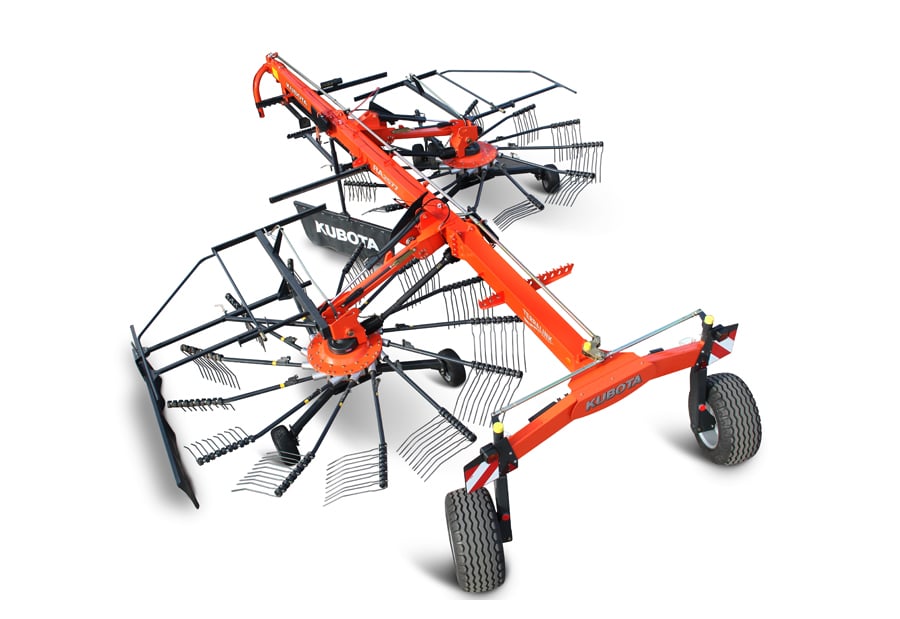

The Kubota RA2577 offers excellent flexibility and can collect crops from multiple passes into a single swath. Raking performance is accurate with quality tines on the front and rear rotors. A working width of 24’ and swath width of 25’3” make covering a lot of ground easy while maintaining good quality. This rake is durably built with wide diameter tines and a unique maneuverability system for rear wheel steering. The RA2577 won’t let you down! Read Disclaimer

Special Offers

rakes_ra2072_ra2076_ra2584
RAKE SERIES
Up to 0% A.P.R. for 48 Months on your new Kubota RA Series!
Details
Farmer Veteran Coalition Rebate
Customer instant rebate for Farmer Veteran Coalition members.
Details
Implement Stand Alone Financing
Stand Alone Financing Installment Program
Details

Features

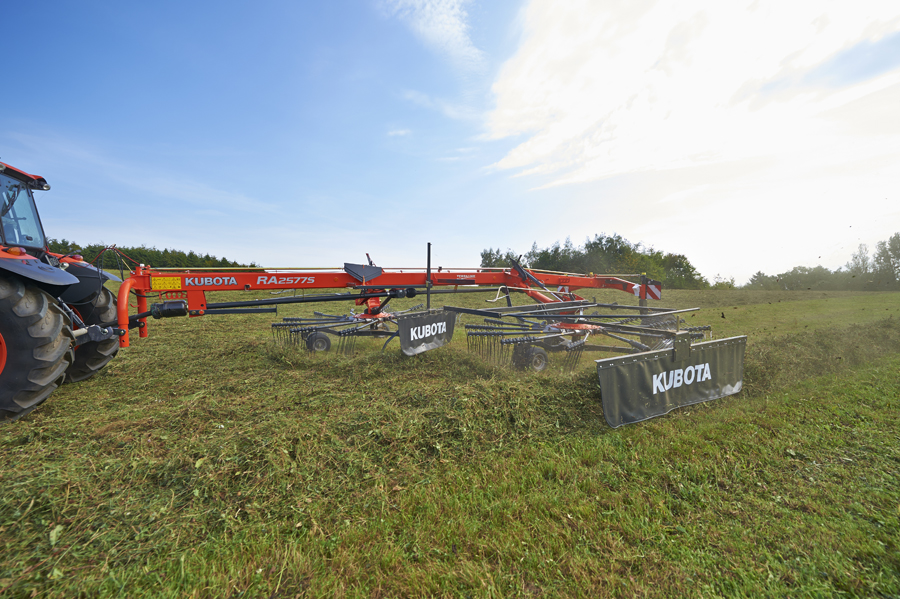

Exceptional-Raking-Performa

Exceptional Raking Performance

The RA2577 features twelve tine arms and four double tines per arm on the front rotor, and thirteen tine arms and five double tines per arm on the rear rotor to provide high tine frequency. This ensures clean raking performance in all types and volumes of crop.

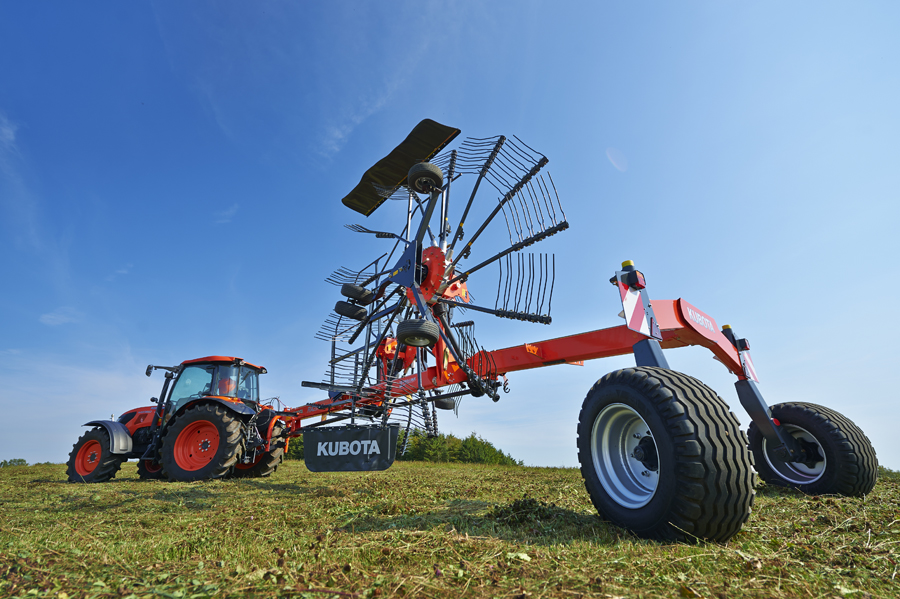

Fast-and-Safe-Transport

Fast and Safe Transport

For fast and safe transport from field to field, RA2577 can be optionally equipped with a hydraulic swath board. The transport width of this model is 9'9".

04_Exceptional-Raking-Performance

Outstanding Durability

Kubota rakes are equipped for maximum raking performance. The RA2577 rakes include heavy duty 0.39" wire diameter tines for outstanding durability.

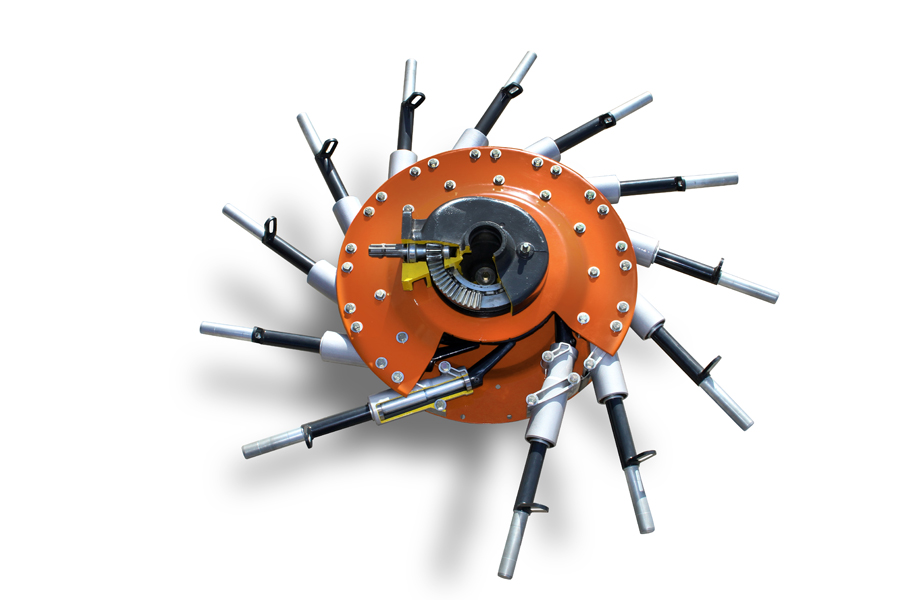

Kubota-ProLine-rotor

Maintenance Free ProLine Gearbox

Kubota RA2577 Rakes are fitted with the renowned ProLine gearbox, with its maintenance-free oil bath solution. The shape of the massive 15.7" curve disc allows the tine arms to leave the crop faster, leaving a more uniform swath shape.

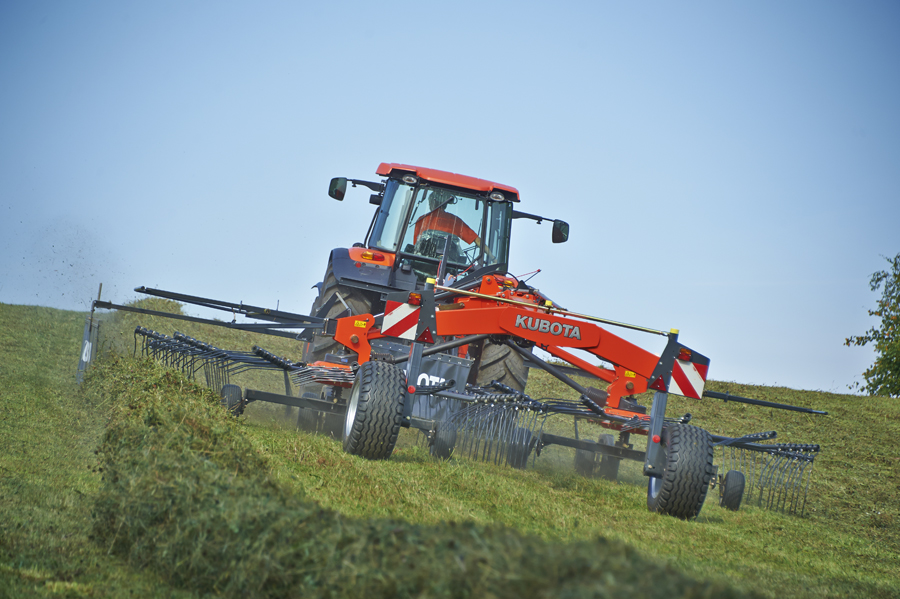

High-Capacity-Working-Width

High Capacity Working Width

The RA2577 ProLine double rotor rake delivers a working width of 24’ raking width & 25'3" with swath. The high capacity side delivery concept adds excellent flexibility in swath formation and allows you to collect crop from a working width of up to 48’ into one swath.

Unique-Maneuverability

Unique Maneuverability

Kubota's side delivery rotary rake has a carrier frame with rear wheel steering, allowing the rake to make turns up to 80 degrees. This is ideal for making tight turns on headlands and productive swathing, even in awkwardly shaped fields. When in headland position, an outstanding lifting height of 18” prevents swath damage. And with a lower center of gravity, this model has excellent stability.

Kubota-TerraLink-Quattro-Sy

Kubota TerraLink Quattro System

The Kubota TerraLink Quattro System provides perfect ground contour following in three dimensions. The TerraLink system has an open construction of the frame, giving the rotor the ability to flex and follow ground contours and absorb shocks from reaching the rotor. The Quattro trailed axle configuration enhances the rotor’s ability to follow ground contours, with the wheels being positioned as close to the tines as possible – two wheels trailed and one in front. This positions the rotor right in the middle of the Quattro system and lets the tines work in the crop without contacting the soil.

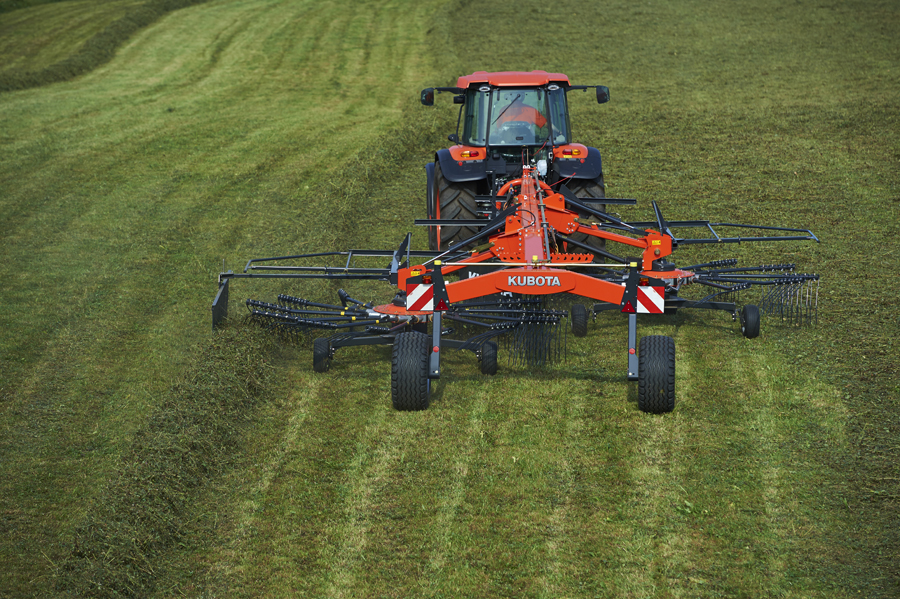

ProLine-Rakes

ProLine Rakes

Kubota's RA2577 is a ProLine side delivery double rotor rake. ProLine rakes feature a drive system, which houses an oil-immersed pinion and crown wheel. The fully enclosed design of the gearbox ensures full and permanent lubrication, making the entire system absolutely maintenance-free. Our extensive experience guarantees that our machines come with well-proven technology. The hardened cam track is adjustable and, with a large 15.7” diameter, it gives positive guidance to the tine arms and a very quiet, smooth running machine.

Exceptional-Raking-Performa

Exceptional Raking Performance

The RA2577 features twelve tine arms and four double tines per arm on the front rotor, and thirteen tine arms and five double tines per arm on the rear rotor to provide high tine frequency. This ensures clean raking performance in all types and volumes of crop.

Fast-and-Safe-Transport

Fast and Safe Transport

For fast and safe transport from field to field, RA2577 can be optionally equipped with a hydraulic swath board. The transport width of this model is 9'9".

04_Exceptional-Raking-Performance

Outstanding Durability

Kubota rakes are equipped for maximum raking performance. The RA2577 rakes include heavy duty 0.39" wire diameter tines for outstanding durability.

Kubota-ProLine-rotor

Maintenance Free ProLine Gearbox

Kubota RA2577 Rakes are fitted with the renowned ProLine gearbox, with its maintenance-free oil bath solution. The shape of the massive 15.7" curve disc allows the tine arms to leave the crop faster, leaving a more uniform swath shape.

High-Capacity-Working-Width

High Capacity Working Width

The RA2577 ProLine double rotor rake delivers a working width of 24’ raking width & 25'3" with swath. The high capacity side delivery concept adds excellent flexibility in swath formation and allows you to collect crop from a working width of up to 48’ into one swath.

Unique-Maneuverability

Unique Maneuverability

Kubota's side delivery rotary rake has a carrier frame with rear wheel steering, allowing the rake to make turns up to 80 degrees. This is ideal for making tight turns on headlands and productive swathing, even in awkwardly shaped fields. When in headland position, an outstanding lifting height of 18” prevents swath damage. And with a lower center of gravity, this model has excellent stability.

Kubota-TerraLink-Quattro-Sy

Kubota TerraLink Quattro System

The Kubota TerraLink Quattro System provides perfect ground contour following in three dimensions. The TerraLink system has an open construction of the frame, giving the rotor the ability to flex and follow ground contours and absorb shocks from reaching the rotor. The Quattro trailed axle configuration enhances the rotor’s ability to follow ground contours, with the wheels being positioned as close to the tines as possible – two wheels trailed and one in front. This positions the rotor right in the middle of the Quattro system and lets the tines work in the crop without contacting the soil.

ProLine-Rakes

ProLine Rakes

Kubota's RA2577 is a ProLine side delivery double rotor rake. ProLine rakes feature a drive system, which houses an oil-immersed pinion and crown wheel. The fully enclosed design of the gearbox ensures full and permanent lubrication, making the entire system absolutely maintenance-free. Our extensive experience guarantees that our machines come with well-proven technology. The hardened cam track is adjustable and, with a large 15.7” diameter, it gives positive guidance to the tine arms and a very quiet, smooth running machine.


Specs & Compare

Compare Kubota Models
RA2577
50 Minimum PTO HP Required
SEE DEALERSHIP FOR PRICE
  • FarmLine
    Standard
  • ProLine
    Standard
  • Working Width ft. (m)
    25' 3"
  • Transport Width ft. (m)
    9' 9"
  • Transport Length ft. (m)
    19' 4"
  • Parking Height ft.
    12' 4" / 14' 5"
  • Weight lbs. (kg)
    5049
  • Capacity Theo. (Acres/h)
    21
  • Pivoting 3-pt Headstock (cat.)
    N/A
  • Lower Links (2-pt.)
    Standard
  • Linkage Drawbar
    N/A
  • Gauge Wheel 16"
    N/A
  • Rotor Diameter ft.
    12'
  • Swath Delivery
    Left
  • Number of Rotors
    2
  • Number of Arms Per Rotor
    11/13
  • Number of Double Tines/Arm
    4/5
  • Tine Diameter in.
    .39"
  • Continuous Cam Track
    Standard
  • Detachable Tine Arms
    Standard
  • Height Adjustment
    Mechanical
  • Tires (Rotors)
    16x6.5-8
  • Fixed Tandem Axle
    N/A
  • Pivoting Tandem Axle
    N/A
  • Stand. Tires (Carrying Frame)
    NA 380/55-17
  • Carrier Arm Compensating
    N/A
  • Locking Catch for Slopes
    N/A
  • Warning Panels
    Standard
  • Road Lights
    Standard
  • Build
  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •
