RA212CR

Rakes Hay/Farm Implements

For Competitive Pricing
Refer to Dealer

Extended Warranty

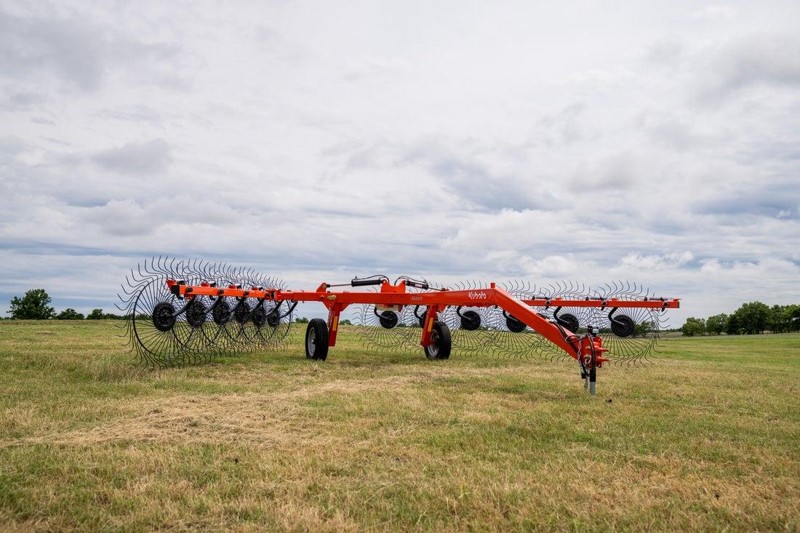

Designed with low horsepower requirements and dominant performance in mind, the Kubota RA212CR lets you take your raking jobs to even greater heights. Individual rake wheel suspension ensures your rake covers rough and uneven fields effortlessly. You can even extend the telescoping wing arms an additional 1.5 feet or adjust the hitch height to make sure you’re covering the most ground. The powerful 25’ working width, 25’ 4” working length and surprising 9’ 3” transport width all bring you the versatility and coverage that you need in a rake. It’s time to experience the Kubota difference with the RA212CR!


Read Disclaimer

Special Offers

rakes_ra2072_ra2076_ra2584
RAKE SERIES
Up to 0% A.P.R. for 48 Months on your new Kubota RA Series!
Details
Farmer Veteran Coalition Rebate
Customer instant rebate for Farmer Veteran Coalition members.
Details
Implement Stand Alone Financing
Stand Alone Financing Installment Program
Details

Features

0917_Rake_RA210CR_Details_8070

Safe Transport

With Independent Wing Cylinder lockouts, transport is safe and easy on the road and through narrow gates or openings. Transport width ranges from 9'2" to 9'6".
0917_Rake_RA210CR_Details_6907

Individual Rake Wheel Suspension

Individual Rake Wheel Suspension is ideal for rough and uneven hay fields allowing each wheel to act independently and follow ground contour.
0917_Rake_RA210CR_Details_6927

Telescoping Wing Arms

Telescoping Wing Arms allow for an additional 1.5 ft. of adjustment by utilizing the jack stand.


*Available only on the 200 Series
0917_Rake_RA210CR_Details_6934 (1)

Drawbar Height

Adjustable for 12 different tractor drawbar heights to ensure proper working angles of the rake wheels.
0917_Rake_RA210CR_Details_6908

Height Adjustment

Height adjustment holes allow the hitch to be adjusted from a height of 13.5" to 23.75".


*Available only on the 200 Series
0917_Rake_RA210CR_Details_6942

Kicker Wheel Options

Single and Dual Kicker Wheel options are used to move material that would otherwise stay in place.

*Dual Kicker Wheel option shown
0917_Rake_RA210CR_Details_8070

Safe Transport

With Independent Wing Cylinder lockouts, transport is safe and easy on the road and through narrow gates or openings. Transport width ranges from 9'2" to 9'6".
0917_Rake_RA210CR_Details_6907

Individual Rake Wheel Suspension

Individual Rake Wheel Suspension is ideal for rough and uneven hay fields allowing each wheel to act independently and follow ground contour.
0917_Rake_RA210CR_Details_6927

Telescoping Wing Arms

Telescoping Wing Arms allow for an additional 1.5 ft. of adjustment by utilizing the jack stand.


*Available only on the 200 Series
0917_Rake_RA210CR_Details_6934 (1)

Drawbar Height

Adjustable for 12 different tractor drawbar heights to ensure proper working angles of the rake wheels.
0917_Rake_RA210CR_Details_6908

Height Adjustment

Height adjustment holes allow the hitch to be adjusted from a height of 13.5" to 23.75".


*Available only on the 200 Series
0917_Rake_RA210CR_Details_6942

Kicker Wheel Options

Single and Dual Kicker Wheel options are used to move material that would otherwise stay in place.

*Dual Kicker Wheel option shown

Specs & Compare

Compare Kubota Models
RA212CR
40 Minimum Engine HP Required
SEE DEALERSHIP FOR PRICE
  • Transport Length ft. (m)
    24' 10" (7.7)
  • Working Length (Max.)
    25' 4" (7.7)
  • Transport Width ft. (m)
    9' 3" (2.8)
  • Transport Height ft. (m)
    Min: 8' 4" (2.5) Max: 9' 11" (3)
  • Working Width ft. (m)
    Min: 21' (6.4) Max: 25' (7.6)
  • Windrow ft. (m)
    Min: 36" (.9) Max: 89" (2.3)
  • Working ft. (m)
    55" (1.4)
  • Weight lbs. (kg)
    1970 (893)
  • Wing Spread
    One hole changes windrow and working width 6 (15) to 7 (18)
  • Hydraulic Circuits
    closed-center or open-center, one remote
  • Hydraulic Power Required
    1800psi, 10gpm
  • Minimum PTO Horsepower Required HP/KW
    50 HP
  • Build
  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •
