RA108CR

Rakes Hay/Farm Implements

For Competitive Pricing
Refer to Dealer

Extended Warranty

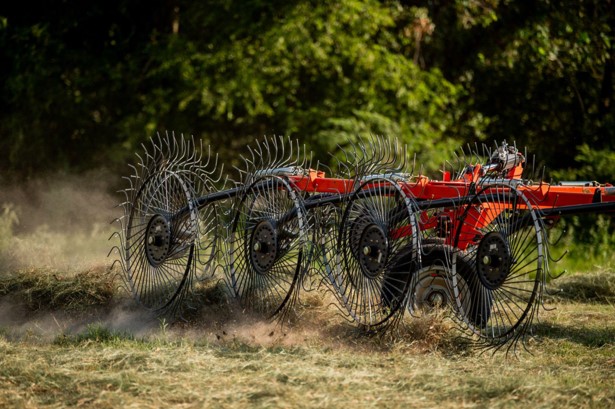

The fast and productive Kubota RA108CR is here to help increase your output and ensure you’re moving with efficiency. The 16’ 8” working width makes for ample coverage of larger swaths and a 21’ 6” working length means you’re covering plenty of ground. Available with a single or dual kicker wheel and individual wheel suspension, the RA108CR takes contoured ground in stride and makes sure no material goes untouched. Fold up the independent wings and the RA108CR bears a 9’ 4” transport width, perfect for getting you comfortably and safely from point A to point B.

Read Disclaimer

Special Offers

rakes_ra2072_ra2076_ra2584
RAKE SERIES
Up to 0% A.P.R. for 48 Months on your new Kubota RA Series!
Details
Farmer Veteran Coalition Rebate
Customer instant rebate for Farmer Veteran Coalition members.
Details
Implement Stand Alone Financing
Stand Alone Financing Installment Program
Details

Features

0917_Rake_RA210CR_Details_8070

Safe Transport

With Independent Wing Cylinder lockouts, transport is safe and easy on the road and through narrow gates or openings. Transport width ranges from 9'2" to 9'6".
0917_Rake_RA210CR_Details_6907

Individual Rake Wheel Suspension

Individual Rake Wheel Suspension is ideal for rough and uneven hay fields allowing each wheel to act independently and follow ground contour.
0917_Rake_RA210CR_Details_6934 (1)

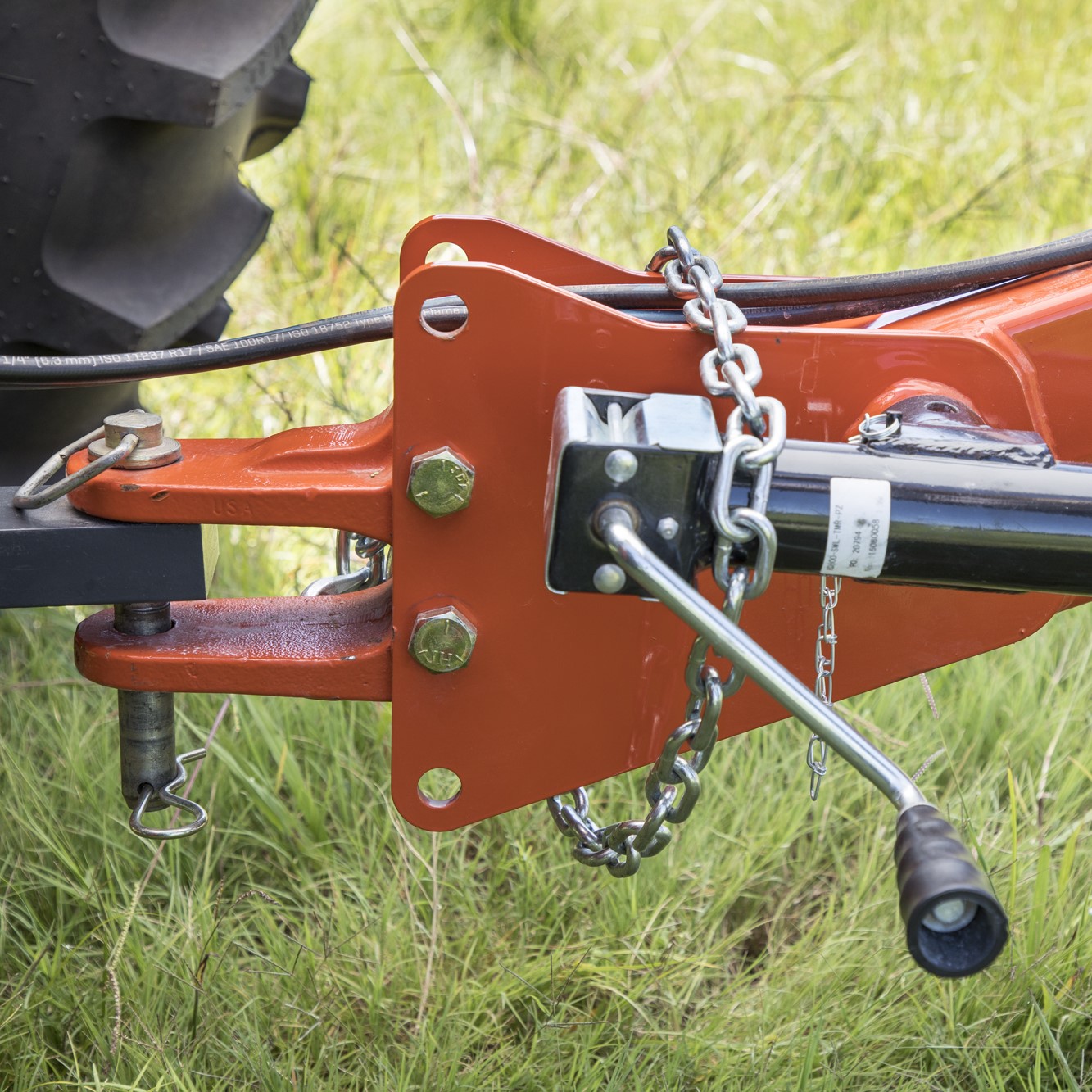

Drawbar Height

Adjustable for 12 different tractor drawbar heights to ensure proper working angles of the rake wheels.
0917_Rake_RA210CR_Details_6942

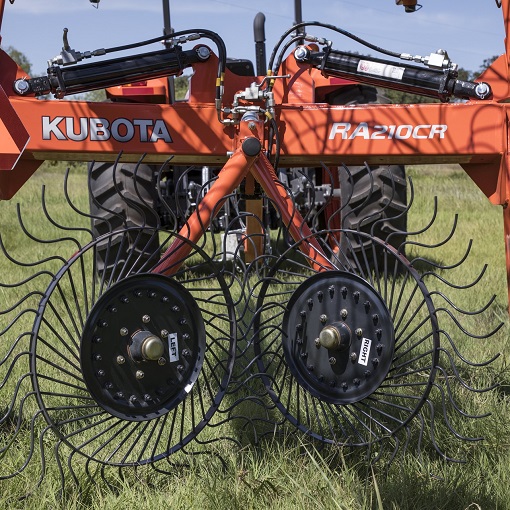

Kicker Wheel Options

Single and Dual Kicker Wheel options are used to move material that would otherwise stay in place.

*Dual Kicker Wheel option shown
0917_Rake_RA210CR_Details_8070

Safe Transport

With Independent Wing Cylinder lockouts, transport is safe and easy on the road and through narrow gates or openings. Transport width ranges from 9'2" to 9'6".
0917_Rake_RA210CR_Details_6907

Individual Rake Wheel Suspension

Individual Rake Wheel Suspension is ideal for rough and uneven hay fields allowing each wheel to act independently and follow ground contour.
0917_Rake_RA210CR_Details_6934 (1)

Drawbar Height

Adjustable for 12 different tractor drawbar heights to ensure proper working angles of the rake wheels.
0917_Rake_RA210CR_Details_6942

Kicker Wheel Options

Single and Dual Kicker Wheel options are used to move material that would otherwise stay in place.

*Dual Kicker Wheel option shown

Specs & Compare

Compare Kubota Models
RA108CR
30 Minimum Engine HP Required
SEE DEALERSHIP FOR PRICE
  • Transport Length ft. (m)
    21' 2" (6.5)
  • Working Length (Max.)
    21' 6" (6.6)
  • Transport Width ft. (m)
    9' 4" (2.8)
  • Transport Height ft. (m)
    Min: 8' (2.4) Max: 8' 5" (2.6)
  • Working Width ft. (m)
    Min: 15' 8" (4.7) Max: 16' 8" (5.1)
  • Windrow ft. (m)
    Min: 34" (.8) Max: 72" (1.8)
  • Working ft. (m)
    55" (1.4)
  • Weight lbs. (kg)
    1460 (662)
  • Wing Spread
    NA
  • Hydraulic Circuits
    closed-center or open-center, one remote
  • Hydraulic Power Required
    1800psi, 10gpm
  • Minimum PTO Horsepower Required HP/KW
    30 hp
  • Build
  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

§The Manufacturer's Suggested Retail Price excludes tax, dealer fees, and optional equipment. The equipment shown is for illustrative purposes only and may not be base equipment.
