DM5032

Disc Mowers

MSRP As Low As§
$27,780.00
w/ 11Lx15 wheels and tires

Extended Warranty

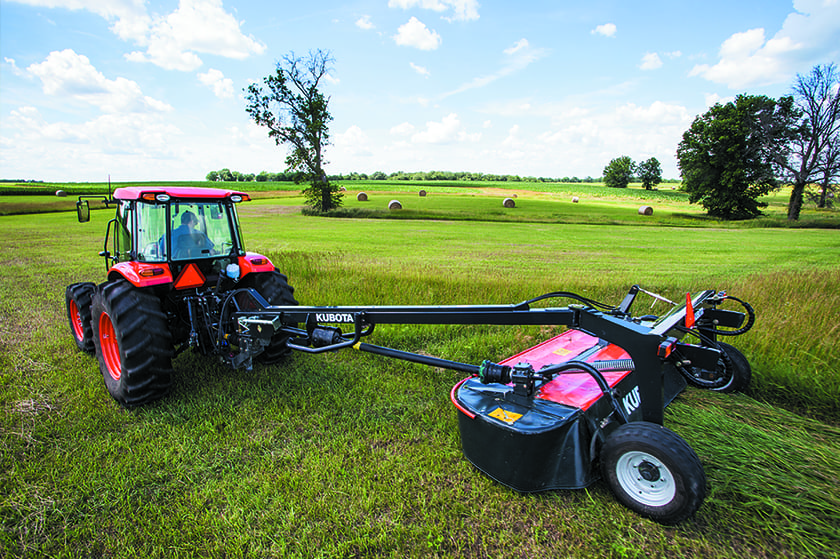

Easy to operate and featuring a low horsepower requirement, the Kubota DM5032 Disc Mower assists you in taking your productivity to the next level. Lateral flotation and independent active suspension ensure the disc mower takes on hillsides and slopes with cutting potential and the drawbar swivel hitch gearbox keeps turns tight. A 10’ 6” working width means you’re going to be working with efficiency throughout the day, and transporting safely with folding side guards.

Read Disclaimer

Special Offers

discmowersdmseries_dm5000
DISC MOWER SERIES
Up to 0% A.P.R. for 48 Months on your new Kubota DM Series!
Details
Farmer Veteran Coalition Rebate
Customer instant rebate for Farmer Veteran Coalition members.
Details
Implement Stand Alone Financing
Stand Alone Financing Installment Program
Details

Features

DM5032_ActiveSuspension

Active Suspension

The Kubota DM5032, DM5040, and DM5028 have an exceptional ability to adapt to field conditions. The active suspension ensures even pressure across the entire cutterbar while in rough conditions. With 13.8" of upward suspension and 9.3" of downward adaption, these machines ensure that the cutting discs are always positioned close to the ground, ensuring outstanding cutting quality and trouble-free mowing.

The DM5000 Series floatation system protects the complete machine from possible shock loads. When an obstacle is encountered the cutterbar will pivot upward and over the obstacle and then automatically return once the obstacle has been passed.

Lateral Flotation - DM

Lateral Flotation

DM5000 series machines provide for 17 degrees of sideward adaption. This generates many benefits while working on hillsides or when aligning the unit on headlands.

DM5000_SwivelHitch

Drawbar Swivel Hitch Gearbox

The drawbar swivel hitch gearbox is fixed to the mainframe in order to minimize movement during operation, yet it provides unlimited rotational movement between the machine and the tractor making it easier to perform sharp turns.

01_triangular-discs

Counter

Rotating Three-Bladed Discs

With three blades per disc, Kubota mowers are constantly cutting. This means a third less load per blade, an even load on the drive and smoother power usage – which produces an even, cleanly cut stubble. Each steel blade is precisely angled to immediately discharge the cut crop upwards by both air flow and mechanical action.

02_fully-welded-cutterbar

Fully Welded Cutterbar

The fully welded Kubota cutterbar with overlapping C-channels makes for a stiff and strong design, ensuring a high level of durability. The cutterbar’s design, with machined gears and large bearings along with low oil requirements, allows for a low working temperature for efficient oil cooling and lubrication of the entire cutterbar.

Express Quick Change of Knives - DM

Express Quick Change of Knives

Mowers can be fitted with the 'Express' system for quick and easy changing of knives. Simply place the lever around the bolt, release the spring by turning the lever and the knife is ready to be replaced with a new one.

0614_DM5032_Transport_5695

Narrow Transport

DM5000 series offers a secure and convenient transport solution while still providing excellent road visibility. To make transportation width as narrow as possible, the side guards can be folded upwards. This reduces the transport width for DM5032 and DM5028 to only 9'10" while in the field it cuts a full 10'6". The transport width for DM5040 is reduced to 12'5" while in field it cuts 13'1".

Working Widths - DM

Working Widths

  • DM5032 / DM5028 – 10’6”
  • DM5040 – 13’1”
DM5032_ActiveSuspension

Active Suspension

The Kubota DM5032, DM5040, and DM5028 have an exceptional ability to adapt to field conditions. The active suspension ensures even pressure across the entire cutterbar while in rough conditions. With 13.8" of upward suspension and 9.3" of downward adaption, these machines ensure that the cutting discs are always positioned close to the ground, ensuring outstanding cutting quality and trouble-free mowing.

The DM5000 Series floatation system protects the complete machine from possible shock loads. When an obstacle is encountered the cutterbar will pivot upward and over the obstacle and then automatically return once the obstacle has been passed.

Lateral Flotation - DM

Lateral Flotation

DM5000 series machines provide for 17 degrees of sideward adaption. This generates many benefits while working on hillsides or when aligning the unit on headlands.

DM5000_SwivelHitch

Drawbar Swivel Hitch Gearbox

The drawbar swivel hitch gearbox is fixed to the mainframe in order to minimize movement during operation, yet it provides unlimited rotational movement between the machine and the tractor making it easier to perform sharp turns.

01_triangular-discs

Counter

Rotating Three-Bladed Discs

With three blades per disc, Kubota mowers are constantly cutting. This means a third less load per blade, an even load on the drive and smoother power usage – which produces an even, cleanly cut stubble. Each steel blade is precisely angled to immediately discharge the cut crop upwards by both air flow and mechanical action.

02_fully-welded-cutterbar

Fully Welded Cutterbar

The fully welded Kubota cutterbar with overlapping C-channels makes for a stiff and strong design, ensuring a high level of durability. The cutterbar’s design, with machined gears and large bearings along with low oil requirements, allows for a low working temperature for efficient oil cooling and lubrication of the entire cutterbar.

Express Quick Change of Knives - DM

Express Quick Change of Knives

Mowers can be fitted with the 'Express' system for quick and easy changing of knives. Simply place the lever around the bolt, release the spring by turning the lever and the knife is ready to be replaced with a new one.

0614_DM5032_Transport_5695

Narrow Transport

DM5000 series offers a secure and convenient transport solution while still providing excellent road visibility. To make transportation width as narrow as possible, the side guards can be folded upwards. This reduces the transport width for DM5032 and DM5028 to only 9'10" while in the field it cuts a full 10'6". The transport width for DM5040 is reduced to 12'5" while in field it cuts 13'1".

Working Widths - DM

Working Widths

  • DM5032 / DM5028 – 10’6”
  • DM5040 – 13’1”

Specs & Compare

Compare Kubota Models
DM5032
65 Minimum PTO HP Required
MSRP AS LOW AS§
$27,780.00
  • Cutting Width ft. (m)
    10' 6"
  • Weight lbs. (kg)
    2756
  • Transport Width ft. (m)
    9' 10"
  • Hitch (CAT)
    2
  • Pin Hitch
    Standard
  • PTO RPM
    540/1000
  • Minimum PTO Horsepower Required HP/KW
    65
  • Number of Disc and Knives
    8/24
  • Remotes
    2
  • Cutterbar Operating Angle
    ±17
  • Stubble Height in. (mm)
    0.75"-4.0" (19-102)
  • BreakAway
    Not Available
  • Non-Stop BreakAway
    Not Available
  • Overrun Clutch
    Standard
  • Swath Board (RH/LH)
    Not Available
  • Swath Rollers (RH/LH)
    Optional
  • High Skids +20/+40/+80 mm
    Standard / Optional / Optional
  • Lighting Kit
    Standard
  • Build
  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

§The Manufacturer's Suggested Retail Price excludes tax, dealer fees, and optional equipment. The equipment shown is for illustrative purposes only and may not be base equipment.
