DM4032

Disc Mowers Hay/Farm Implements

For Competitive Pricing
Refer to Dealer

Extended Warranty

The DM4032 with its 10’6” working width is designed to keep you working efficiently and ensures that the mower can quickly adapt to changing ground contours with maximum flotation. Attaching and removing is fast and simple with the A Frame connector, and transport is easy with the vertical position.. This mower is cost effective as it has an “eco speed” setting to save you fuel and can be operated by low horse power tractors. Read Disclaimer

Special Offers

discmowersdmseries_dm5000
DISC MOWER SERIES
Up to 0% A.P.R. for 48 Months on your new Kubota DM Series!
Details
Farmer Veteran Coalition Rebate
Customer instant rebate for Farmer Veteran Coalition members.
Details
Implement Stand Alone Financing
Stand Alone Financing Installment Program
Details

Features

02_fully-welded-cutterbar

Fully Welded Cutterbar

The fully welded Kubota cutterbar with overlapping C-channels makes for a stiff and strong design, ensuring a high level of durability. The cutterbar’s design, with machined gears and large bearings along with low oil requirements, allows for a low working temperature for efficient oil cooling and lubrication of the entire cutterbar.

Outstanding-Suspensions

Outstanding Suspensions

The DM3087 center suspension system ensures optimal tracking and precise ground contour following. The DM4032 allows you to set the height of the tractor linkage and adjust ground pressure by tightening the suspension springs.

06_NonStop-BreakAway_01

Non-Stop Breakaway

When you hit an obstacle, the non-stop breakaway system will be activated and swing the machine backwards and over the obstacle and then return it to the original working position. No need to stop – no time lost.

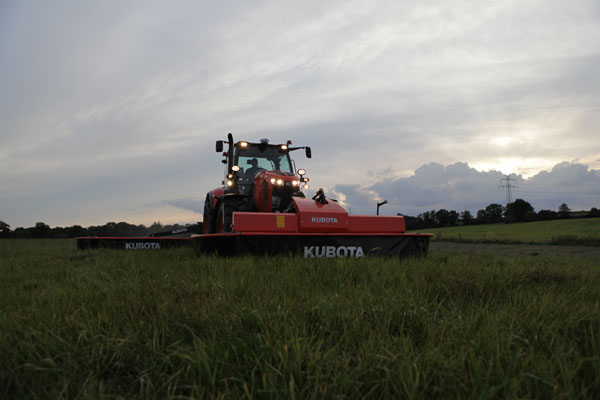

Eco-Speed-(DM4032)

Eco Speed (DM4032)

By switching the pulleys, the 2-speed driveline can be set to eco speed, which reduces the rpm from 1000 to 750, thus lowering fuel consumption.

_DSC9897-copy

Vertical Transport Position

When in transport, the mowers are folded to a vertical position well behind the tractor. The center of gravity is close to the tractor, which ensures excellent weight distribution and transport stability.

01_triangular-discs

Counter-Rotating Three-Bladed Discs

With three blades per disc Kubota mowers are constantly cutting. This means a third less load per blade; an even load on the drive; smoother power usage; and produces an even, cleanly cut stubble.

Low-Horsepower-Requirements

Low Horsepower Requirements

The DM3087 cutting solution allows farmers to effectively mow extensive areas with a relatively small tractor (140 HP), while the DM4032 distinguishes itself through its excellent cutting performance and its unique ability to adapt to a variety of terrain.

02_fully-welded-cutterbar

Fully Welded Cutterbar

The fully welded Kubota cutterbar with overlapping C-channels makes for a stiff and strong design, ensuring a high level of durability. The cutterbar’s design, with machined gears and large bearings along with low oil requirements, allows for a low working temperature for efficient oil cooling and lubrication of the entire cutterbar.

Outstanding-Suspensions

Outstanding Suspensions

The DM3087 center suspension system ensures optimal tracking and precise ground contour following. The DM4032 allows you to set the height of the tractor linkage and adjust ground pressure by tightening the suspension springs.

06_NonStop-BreakAway_01

Non-Stop Breakaway

When you hit an obstacle, the non-stop breakaway system will be activated and swing the machine backwards and over the obstacle and then return it to the original working position. No need to stop – no time lost.

Eco-Speed-(DM4032)

Eco Speed (DM4032)

By switching the pulleys, the 2-speed driveline can be set to eco speed, which reduces the rpm from 1000 to 750, thus lowering fuel consumption.

_DSC9897-copy

Vertical Transport Position

When in transport, the mowers are folded to a vertical position well behind the tractor. The center of gravity is close to the tractor, which ensures excellent weight distribution and transport stability.

01_triangular-discs

Counter-Rotating Three-Bladed Discs

With three blades per disc Kubota mowers are constantly cutting. This means a third less load per blade; an even load on the drive; smoother power usage; and produces an even, cleanly cut stubble.

Low-Horsepower-Requirements

Low Horsepower Requirements

The DM3087 cutting solution allows farmers to effectively mow extensive areas with a relatively small tractor (140 HP), while the DM4032 distinguishes itself through its excellent cutting performance and its unique ability to adapt to a variety of terrain.


Specs & Compare

Compare Kubota Models
DM4032
40 Minimum PTO HP Required
SEE DEALERSHIP FOR PRICE
  • Cutting Width ft. (m)
    10' 6" (3.2)
  • Weight lbs. (kg)
    1566 (710)
  • Hitch (CAT)
    2
  • Minimum PTO Horsepower Required HP/KW
    40/29
  • Number of Disc and Knives
    8/24
  • Build
  •

  •

  •

  •

  •
