DMC8532R

Disc Mower Conditioners Hay/Farm Implements

For Competitive Pricing
Refer to Dealer

Extended Warranty

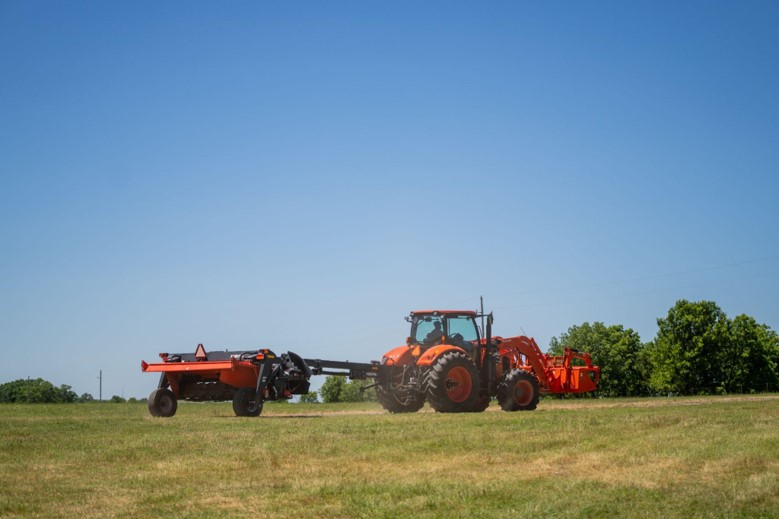

The Kubota DMC8532R is ready to meet all your needs with features like a swivel hitch headstock and a gentle roller conditioner. With 8 discs and 24 blades, the 10’5” cutting width dominates even the toughest cutting jobs. Transporting is also easy with a lifting height of 1’6” for maximum clearance and visibility. Take your mowing experience to the next level with the DMC8532R!

Read Disclaimer

Special Offers

discmowerconditionersdmc_dmc8500
DISC MOWER CONDITIONER SERIES
Up to 0% A.P.R. for 48 Months on your new Kubota DMC Series!
Details
Farmer Veteran Coalition Rebate
Customer instant rebate for Farmer Veteran Coalition members.
Details
Implement Stand Alone Financing
Stand Alone Financing Installment Program
Details

Features

Gentle Roller Conditioning

Gentle Roller Conditioning (R Models)

Roller conditioning provides gentle yet effective handling of fragile crop such as alfalfa or clover. The 8.8" diameter wide rubber rollers are made from highly durable polyurethane with a steel core. This design ensures straight rollers that will not flex out of shape, regardless of the force transmitted onto them. The spring-controlled pressure exerted between the two rollers guarantees uniform conditioning intensity, regardless of the amount of crop passing through the rollers. Additionally, if an obstacle is encountered, the spring tensioning system will separate the rollers, leaving an opening of up to 2.4" allowing objects to pass without damage to the rollers.

0614_DMC8540_Transport_6036

Transport with Integrated Lighting Kit

The DMC8500 series offers a secure and convenient transport solution, including an integrated lighting kit for excellent road visibility. The transport width for DMC8536T and DMC8536R is 11'2", the transport width for DMC8540T and DMC8540R is 12'6", and the transport width for DMC8547T and DMC8547R is 14'9".

0614_DMC8540_Lift_3858

Excellent Ground Clearance

DMC8500 series models have a lifting height of 1'6" to ensure excellent ground clearance for transport and during headland turning.

Wide-spreading_002

Wide Spreading Kit

All models can be fitted with an optional easy-to-use wide spreading kit. This enables crop to be cut and spread in one operation, saving both time and resources. Best of all, changing from swathing to wide spreading is a one-man-job.

Express Quick Change of Knives - DM

Express Quick Change of Knives

Mowers can be fitted with the 'Express' system for quick and easy changing of knives. Simply place the lever around the bolt, release the spring by turning the lever and the knife is ready to be replaced with a new one.

02_fully-welded-cutterbar

Fully Welded Cutterbar

The fully welded Kubota cutterbar with overlapping C-channels makes for a stiff and strong design, ensuring a high level of durability. The cutterbar’s design, with machined gears and large bearings along with low oil requirements, allows for a low working temperature for efficient oil cooling and lubrication of the entire cutterbar.

01_triangular-discs

Counter

Rotating Three-Bladed Discs

With three blades per disc, Kubota mowers are constantly cutting. This means a third less load per blade, an even load on the drive and smoother power usage – which produces an even, cleanly cut stubble. Each steel blade is precisely angled to immediately discharge the cut crop upwards by both air flow and mechanical action.

0614_DMC8536_Adjstmnt_5989

Easy Adjustment

A simple crank adjusts the whole cutterbar assembly up or down to a desired stubble height. Additional skids are available to increase cutting height.

0614_DMC8032_Ditch_9307

Benefits of Kubota Suspension Springs Design

The long spring design allows for excellent ground following ability. In uneven fields, the mower is able to adapt +19.7"/-5.9" The suspension springs are fitted on the widest possible position of the mowing section to ensure even ground pressure. The weight on ground is stable and only approximately 88 -110 pounds on each side. The suspension arms are fitted between the mowing section and mainframe so when an obstacle is encountered, the mowing section moves backwards and upwards to allow the object to pass. The mower will automatically return to its working position once the obstacle is cleared.

Kubota-Suspension-for-Clean

Kubota Suspension for Clean Cutting Action

The complete mowing section, including the conditioner, is suspended independently from the main chassis by either two or four long adjustable suspension springs, allowing field tracks and contours to be closely followed. If an obstacle is encountered in the field, the mowing section will lift up and backwards, protecting the cutterbar from damage. When the obstacle is passed, the mowing section automatically returns to the working position.

0614_DMC8536_Drawbar_5968

Center Pivot Drawbar

The DMC8500 models are equipped with a center pivot drawbar for mowing both to the right and left side of the tractor. This important advantage in mower design allows operators to mow in one continuous pattern, without the need for constantly opening up new headlands. Consequently, time consuming short runs are eliminated and mowing capacity is increased.

Gentle Roller Conditioning

Gentle Roller Conditioning (R Models)

Roller conditioning provides gentle yet effective handling of fragile crop such as alfalfa or clover. The 8.8" diameter wide rubber rollers are made from highly durable polyurethane with a steel core. This design ensures straight rollers that will not flex out of shape, regardless of the force transmitted onto them. The spring-controlled pressure exerted between the two rollers guarantees uniform conditioning intensity, regardless of the amount of crop passing through the rollers. Additionally, if an obstacle is encountered, the spring tensioning system will separate the rollers, leaving an opening of up to 2.4" allowing objects to pass without damage to the rollers.

0614_DMC8540_Transport_6036

Transport with Integrated Lighting Kit

The DMC8500 series offers a secure and convenient transport solution, including an integrated lighting kit for excellent road visibility. The transport width for DMC8536T and DMC8536R is 11'2", the transport width for DMC8540T and DMC8540R is 12'6", and the transport width for DMC8547T and DMC8547R is 14'9".

0614_DMC8540_Lift_3858

Excellent Ground Clearance

DMC8500 series models have a lifting height of 1'6" to ensure excellent ground clearance for transport and during headland turning.

Wide-spreading_002

Wide Spreading Kit

All models can be fitted with an optional easy-to-use wide spreading kit. This enables crop to be cut and spread in one operation, saving both time and resources. Best of all, changing from swathing to wide spreading is a one-man-job.

Express Quick Change of Knives - DM

Express Quick Change of Knives

Mowers can be fitted with the 'Express' system for quick and easy changing of knives. Simply place the lever around the bolt, release the spring by turning the lever and the knife is ready to be replaced with a new one.

02_fully-welded-cutterbar

Fully Welded Cutterbar

The fully welded Kubota cutterbar with overlapping C-channels makes for a stiff and strong design, ensuring a high level of durability. The cutterbar’s design, with machined gears and large bearings along with low oil requirements, allows for a low working temperature for efficient oil cooling and lubrication of the entire cutterbar.

01_triangular-discs

Counter

Rotating Three-Bladed Discs

With three blades per disc, Kubota mowers are constantly cutting. This means a third less load per blade, an even load on the drive and smoother power usage – which produces an even, cleanly cut stubble. Each steel blade is precisely angled to immediately discharge the cut crop upwards by both air flow and mechanical action.

0614_DMC8536_Adjstmnt_5989

Easy Adjustment

A simple crank adjusts the whole cutterbar assembly up or down to a desired stubble height. Additional skids are available to increase cutting height.

0614_DMC8032_Ditch_9307

Benefits of Kubota Suspension Springs Design

The long spring design allows for excellent ground following ability. In uneven fields, the mower is able to adapt +19.7"/-5.9" The suspension springs are fitted on the widest possible position of the mowing section to ensure even ground pressure. The weight on ground is stable and only approximately 88 -110 pounds on each side. The suspension arms are fitted between the mowing section and mainframe so when an obstacle is encountered, the mowing section moves backwards and upwards to allow the object to pass. The mower will automatically return to its working position once the obstacle is cleared.

Kubota-Suspension-for-Clean

Kubota Suspension for Clean Cutting Action

The complete mowing section, including the conditioner, is suspended independently from the main chassis by either two or four long adjustable suspension springs, allowing field tracks and contours to be closely followed. If an obstacle is encountered in the field, the mowing section will lift up and backwards, protecting the cutterbar from damage. When the obstacle is passed, the mowing section automatically returns to the working position.

0614_DMC8536_Drawbar_5968

Center Pivot Drawbar

The DMC8500 models are equipped with a center pivot drawbar for mowing both to the right and left side of the tractor. This important advantage in mower design allows operators to mow in one continuous pattern, without the need for constantly opening up new headlands. Consequently, time consuming short runs are eliminated and mowing capacity is increased.


Specs & Compare

Compare Kubota Models
DMC8532R
80 Minimum PTO HP Required
SEE DEALERSHIP FOR PRICE
  • Drawbar
    Center
  • Conditioner
    Roller
  • Cutting Width ft. (m)
    10’ 5” (3.2)
  • Transport Width ft. (m)
    9’ 10” (3)
  • Weight lbs. (kg)
    5402 (2450)
  • Hitch (CAT)
    Cat II or pin hitch
  • PTO RPM
    540 standard / 1000 optional
  • Minimum PTO Horsepower Required HP/KW
    80
  • Number of Disc and Knives
    8/24
  • Remotes
    2
  • Cutterbar Operating Angle
    ±15
  • Stubble Height in. (mm)
    1.18”-2.36”
  • Cond. Rotor Speed
    900/1200
  • Tires
    380/55-17
  • Wide Spreading Kit
    Optional
  • High Skids in.
    1000 standard / 540 optional
  • Throwing Wings for Diff. Crops
    Standard
  • Lighting Kit
    Standard
  • Alternative Cond. Speed Kit
    -
  • Build
  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •
