SVL65-2

Track Loaders Construction

For Competitive Pricing
Refer to Dealer
Don’t just finish the job. Dominate it behind the controls of the Kubota SVL65-2. Whether hardscaping or landscaping, you’ll experience nimble maneuverability, power and comfort in the orange track loader. Advanced hydraulics and 68.3 horsepower ensure you won’t have to back down from a challenge and the SVL65-2 loves a good challenge. Read Disclaimer

Special Offers

svl97-2
TRACK LOADERS
Save up to $4000 or 0% A.P.R. FOR UP TO 36 MONTHS with 0% Down ON SVL SERIES!
Details
Farmer Veteran Coalition Rebate
Customer instant rebate for Farmer Veteran Coalition members.
Details
Implement Stand Alone Financing
Stand Alone Financing Installment Program
Details

Features

0818_SVL65_2_Bucket_0426 (2)

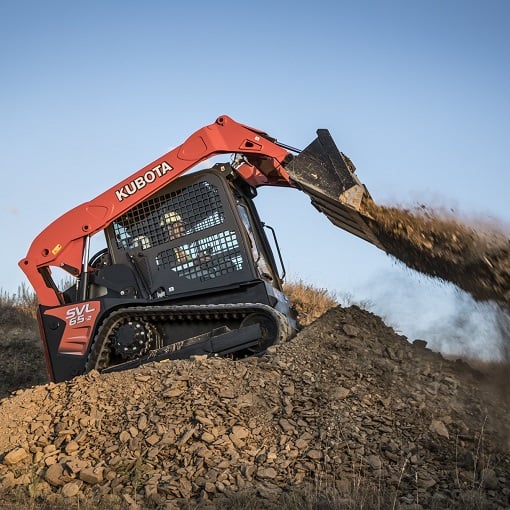

Advanced Multifunction Valve (SVL65-2)

The SVL65-2's hydraulic system features an innovative Advanced Multifunction Valve that provides smooth movements of all hydraulic functions when operated simultaneously. The AMV now allows operators to run the AUX hydraulics, bucket and loader arm functions together without stalling.

IMG_2013

Wider Cab Entrance

The wide cab entrance, with a 36” side-screen to side-screen width, allows operators to comfortably pivot when looking to their rear. In addition, a high back seat provides back support from shoulders to lower torso. A comfortable operator is a productive operator.

IMG_2025

Easy-Opening Sliding Front Door

When equipped with a cab enclosure, the cab door slides up and down to improve ingress and egress. Operators can pin the door in the open position and continue to operate with the door open, so there is no need to remove the door and store it where it can get lost or damaged. Front doors can be opened regardless of the loader position.

IMG_1899a

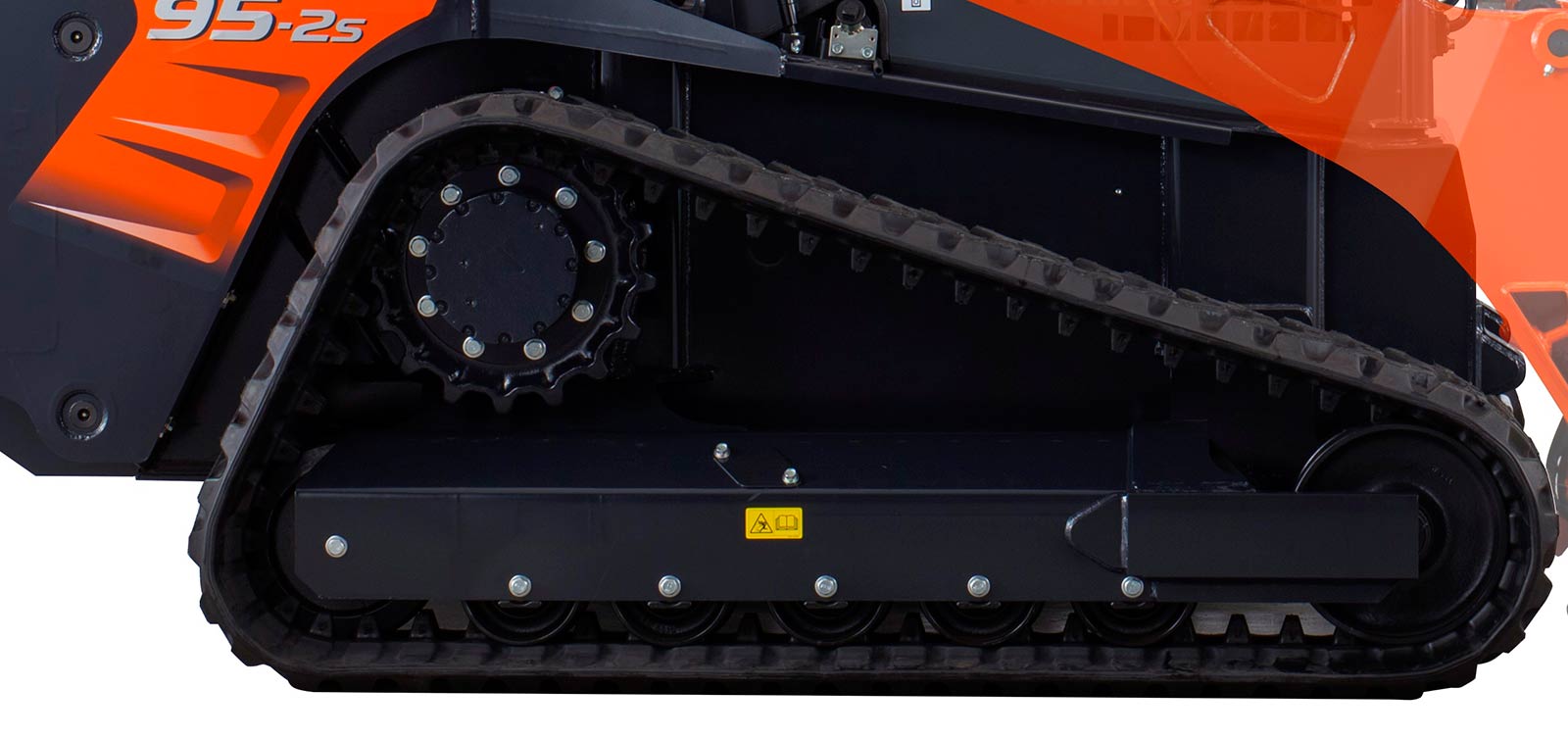

Integrated Mainframe and Undercarriage

Because Kubota designed compact track loaders first, their platform is different from the skid steers. So, unlike “skid steers turned compact track loaders” with bolt-on undercarriages, Kubota’s integrated undercarriage is welded with no exposed hoses or openings, providing a sturdier and more durable design.

0815_SVL95_2s_BucketRocks_2478

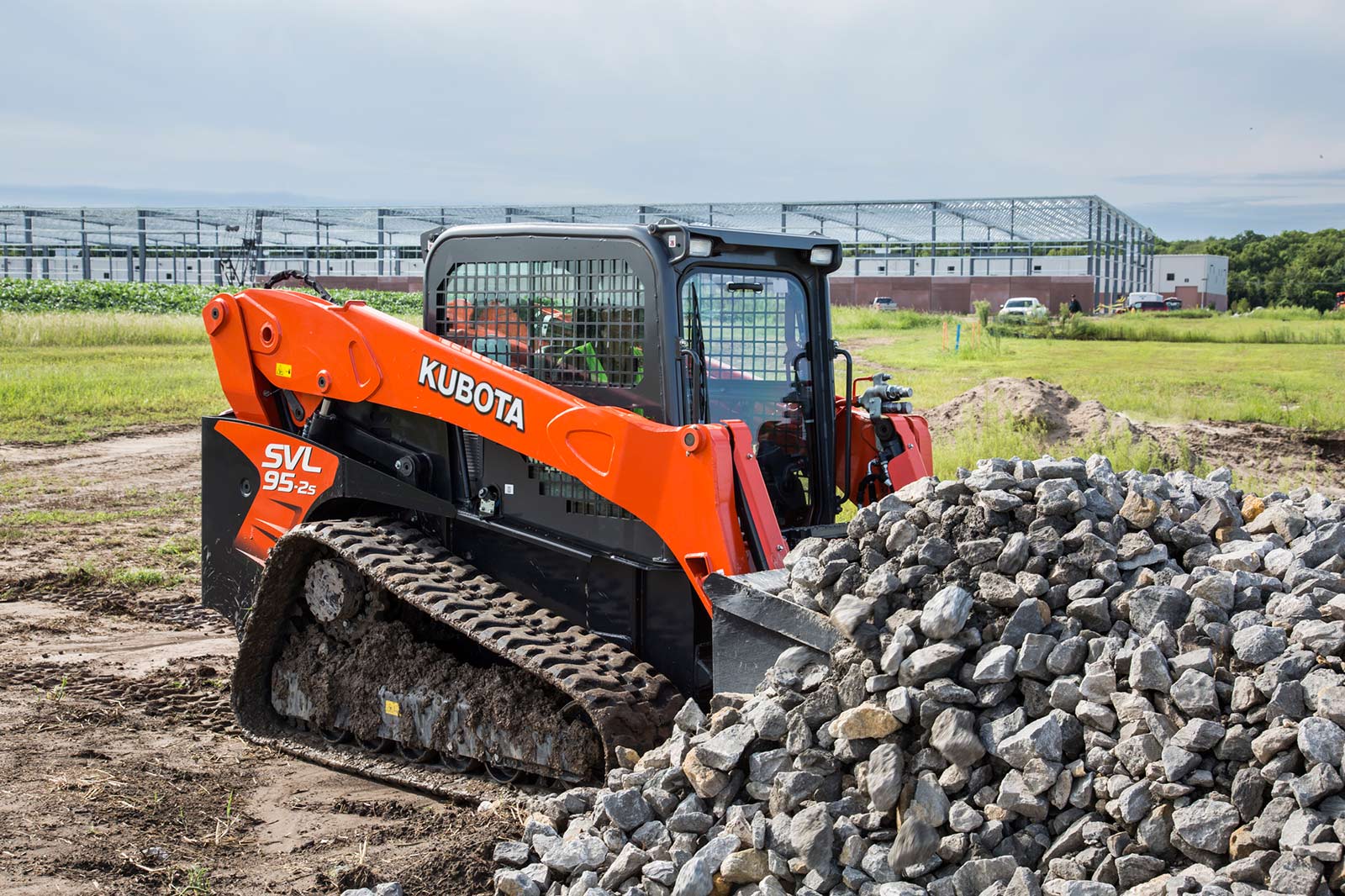

Electronic Travel Torque Management

The electronic travel torque management system lets you work faster with more power. By optimizing hydraulic performance when pushing or moving heavy loads, the system prevents engine stalling allowing for faster recovery.

SVL-right-lever

Available with Low Effort Hydraulic Pilot Controls

Work next to home structures and curbs with confidence. Different from Electro-Hydraulic Controls, these hydraulic controls provide maximum feel and precision – with no adjustments or settings necessary. Start moving when you think you’re going to start, and stop moving when you think you’re going to stop.

0815_SVL_2s_Transport_2015

Standard 2-Speed Travel and Selectable One-Way Self-Level

Shift from low gear to high gear to get the job done faster. One-way hydraulic self-leveling can be engaged at the flip of a switch and helps keep the bucket or pallet forks in a horizontal position without the need to manually adjust the angle during lifting.

SVL-Vertical-Loader-Linkage

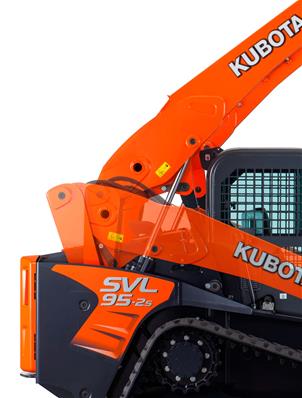

Rugged Loader Arms Design

Robust and tightly secured loader arms linkage that can do both radial and vertical lift operations.

0818_SVL65_2_Bucket_0426 (2)

Advanced Multifunction Valve (SVL65-2)

The SVL65-2's hydraulic system features an innovative Advanced Multifunction Valve that provides smooth movements of all hydraulic functions when operated simultaneously. The AMV now allows operators to run the AUX hydraulics, bucket and loader arm functions together without stalling.

IMG_2013

Wider Cab Entrance

The wide cab entrance, with a 36” side-screen to side-screen width, allows operators to comfortably pivot when looking to their rear. In addition, a high back seat provides back support from shoulders to lower torso. A comfortable operator is a productive operator.

IMG_2025

Easy-Opening Sliding Front Door

When equipped with a cab enclosure, the cab door slides up and down to improve ingress and egress. Operators can pin the door in the open position and continue to operate with the door open, so there is no need to remove the door and store it where it can get lost or damaged. Front doors can be opened regardless of the loader position.

IMG_1899a

Integrated Mainframe and Undercarriage

Because Kubota designed compact track loaders first, their platform is different from the skid steers. So, unlike “skid steers turned compact track loaders” with bolt-on undercarriages, Kubota’s integrated undercarriage is welded with no exposed hoses or openings, providing a sturdier and more durable design.

0815_SVL95_2s_BucketRocks_2478

Electronic Travel Torque Management

The electronic travel torque management system lets you work faster with more power. By optimizing hydraulic performance when pushing or moving heavy loads, the system prevents engine stalling allowing for faster recovery.

SVL-right-lever

Available with Low Effort Hydraulic Pilot Controls

Work next to home structures and curbs with confidence. Different from Electro-Hydraulic Controls, these hydraulic controls provide maximum feel and precision – with no adjustments or settings necessary. Start moving when you think you’re going to start, and stop moving when you think you’re going to stop.

0815_SVL_2s_Transport_2015

Standard 2-Speed Travel and Selectable One-Way Self-Level

Shift from low gear to high gear to get the job done faster. One-way hydraulic self-leveling can be engaged at the flip of a switch and helps keep the bucket or pallet forks in a horizontal position without the need to manually adjust the angle during lifting.

SVL-Vertical-Loader-Linkage

Rugged Loader Arms Design

Robust and tightly secured loader arms linkage that can do both radial and vertical lift operations.


Specs & Compare

Compare Kubota Models
SVL65-2
68.3 HP
SEE DEALERSHIP FOR PRICE
  • Horsepower (gross)
    68.3
  • Displacement cu. in. (cc)
    159.6 (2615)
  • Overall Length, ft (mm)
    136.4 (3465)
  • Overall Height, ft (mm)
    79.9 (2029)
  • Overall Width, ft (mm)
    Vehicle Width With Bucket: 68 (1727) / 74 (1880)
  • Operating Weight, lbs (kg)
    8135 (3690) / 8631 (3915)
  • Operator Station
    Open cab / closed cab
  • Rated Operating Capacity (ROC), lbs (kg)
    35% Tipping Load (lbs): 2100 (953)
  • Tipping Load, lbs (kg)
    6000 (2722)
  • Bucket Breakout Force, lbf (kg)
    4614 (2093)
  • Lift Arm Breakout Force, lbf (kg)
    4266 (1935)
  • Lift Arm Path
    Vertical
  • Track Width (standard/wide), in. (mm)
    12.6 (320) / 15.0 (380)
  • Ground Contact Pressure, psi (kPa)
    Standard: 5.0 (34.5) Wide: 4.2 (30)
  • Track Rollers (per side)
    4
  • Track Ground Contact Length, in. (mm)
    57.9 (1470)
  • Traveling Speed: High, mph (kph)
    7.1 (11.5)
  • Traveling Speed: Low, mph (kph)
    4.9 (7.8)
  • Traction Force, lbf (kgf)
    8406 (3813)
  • Ground Clearance, in (mm)
    9.1 (233)
  • Auxiliary Hydraulic Pressure, psi (bar)
    3263 (229.4)
  • Auxiliary Hydraulics Flow Rate, GPM (LPM)
    17.4 (65.8) / 27.0 (102.2)
  • Height to Hinge Pin, in (mm)
    118.5 in (3009.9)
  • Ground Pressure, (psi)
    Standard: 5.0 Wide: 4.2
  • Build
  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •
