U35-4

Compact Excavators

MSRP As Low As§
$52,138.00
Cab option available, see dealer for pricing

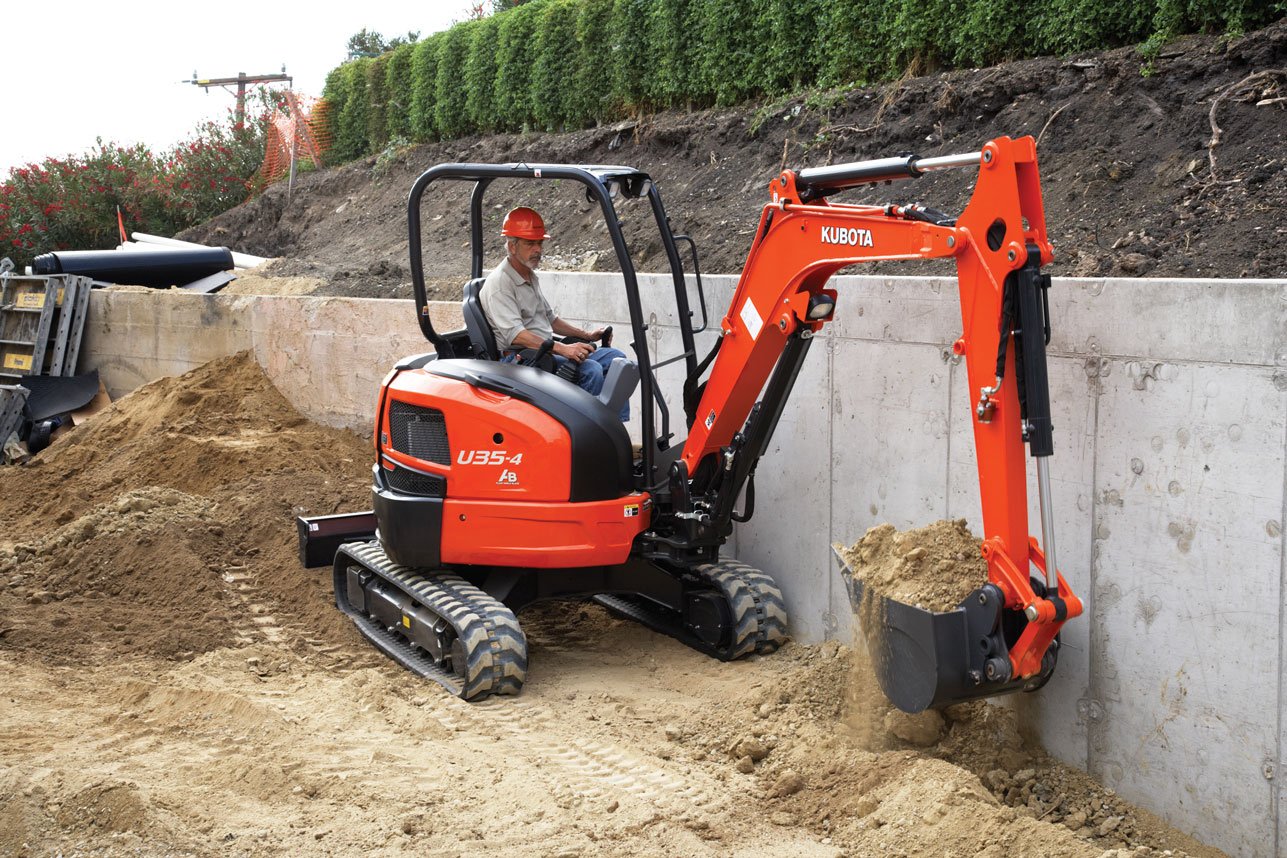

With a wide range of attachments and 24.8 horsepower at its disposal, the Kubota U35-4 Compact Excavator is here to help you reach for the stars. Not only is the compact excavator built with extreme durability, the operator’s station is designed for the ultimate operator experience as well. Nimble enough for confined spaces and sturdy enough for variable terrain, your U35-4 is ready to help you rule the jobsite and unlock your fullest potential. Kubota is the world’s #1 selling compact excavator for 20 years.*

*According to 2023 data from Off-Highway Research including all Kubota Group brand sales.

Read Disclaimer

Special Offers

CompactExcavators_Models_KXSeries
EXCAVATORS
Save Up to $6,000 or Pay 0% A.P.R. For Up to 60 Months With 0% Down on KX and U Series!*
Details
Farmer Veteran Coalition Rebate
Customer instant rebate for Farmer Veteran Coalition members.
Details
Implement Stand Alone Financing
Stand Alone Financing Installment Program
Details

Features

h_MG_4396_KX033

Optional Hydraulic Angle Blade

Save time and work more efficiently. With a simple movement of the new thumb operated rocker switch on the dozer lever, the hydraulic angle blade can be angled to the right or left to push soil to the side as the machine moves forward, eliminating the need for repetitive repositioning at right angles when backfilling trenches.

1Available on U35-4, U55-5

KX018-4_Cat No.8794-01-EU_Page_3_Image_0004

Clean Running Kubota Tier 4 Engine

Kubota excavators are all powered by Kubota Tier 4 emission engines. The modern engine design maximizes digging and lifting performance, delivers minimized noise and vibration and meets the latest engine emission regulation.

auto downshift

Two Speed Travel

All Kubota excavators have a two speed drive that allows for efficient machine maneuverability and backfill operations.

TPSS__

Changeable Control Pattern

Convenient Two-pattern Selection System (TPSS) allows you to change between ISO and SAE operating patterns with a quick flip of the TPSS switch – without tools or leaving your seat.

h_MG_4510-KX033

Comfort & Convenience

  • A spacious operator station designed for greater comfort, with a fully flat floor for more legroom
  • Digital panel with easy access, simple settings and easy-to-read indicators and alerts
  • Easy cab entry and exit
  • Easy-open front slide window
  • Wrist rest
  • Cup holder
  • Optional cab
IMG_5823

Serviceability

  • Front pin bushings to help maximize durability
  • Centralized swivel bearing lubrication
  • Protected cylinder hoses
  • Steel hood panels
  • One-sided engine maintenance
  • Wide hood openings for easy access to engine and other vital components

Auxiliary

  • Proportional flow control of auxiliary circuit (AUX1) and maximum oil flow setting – you can operate a larger variety of auxiliary attachments than ever before
  • Proportional AUX flow switch – a convenient bi-directional switch enables easy operation of hydraulic thumbs and other hydraulic attachments such as augers and breakers
h_MG_4396_KX033

Optional Hydraulic Angle Blade

Save time and work more efficiently. With a simple movement of the new thumb operated rocker switch on the dozer lever, the hydraulic angle blade can be angled to the right or left to push soil to the side as the machine moves forward, eliminating the need for repetitive repositioning at right angles when backfilling trenches.

1Available on U35-4, U55-5

KX018-4_Cat No.8794-01-EU_Page_3_Image_0004

Clean Running Kubota Tier 4 Engine

Kubota excavators are all powered by Kubota Tier 4 emission engines. The modern engine design maximizes digging and lifting performance, delivers minimized noise and vibration and meets the latest engine emission regulation.

auto downshift

Two Speed Travel

All Kubota excavators have a two speed drive that allows for efficient machine maneuverability and backfill operations.

TPSS__

Changeable Control Pattern

Convenient Two-pattern Selection System (TPSS) allows you to change between ISO and SAE operating patterns with a quick flip of the TPSS switch – without tools or leaving your seat.

h_MG_4510-KX033

Comfort & Convenience

  • A spacious operator station designed for greater comfort, with a fully flat floor for more legroom
  • Digital panel with easy access, simple settings and easy-to-read indicators and alerts
  • Easy cab entry and exit
  • Easy-open front slide window
  • Wrist rest
  • Cup holder
  • Optional cab
IMG_5823

Serviceability

  • Front pin bushings to help maximize durability
  • Centralized swivel bearing lubrication
  • Protected cylinder hoses
  • Steel hood panels
  • One-sided engine maintenance
  • Wide hood openings for easy access to engine and other vital components

Auxiliary

  • Proportional flow control of auxiliary circuit (AUX1) and maximum oil flow setting – you can operate a larger variety of auxiliary attachments than ever before
  • Proportional AUX flow switch – a convenient bi-directional switch enables easy operation of hydraulic thumbs and other hydraulic attachments such as augers and breakers

Specs & Compare

Compare Kubota Models
U35-4
24.8 HP
MSRP AS LOW AS§
$52,138.00
  • Engine Model
    Kubota D1703M-DI-E4
  • Horsepower (gross)
    24.8
  • Displacement (cu. in.)
    100.5
  • Overall Length, ft (mm)
    15 ft 7 in (4749)
  • Overall Height, ft (mm)
    8 ft 1.2 in (2470)
  • Overall Width, ft (mm)
    5 ft 6.9 in (1700)
  • Min. Ground Clearance, in (mm)
    11.34 (288)
  • Crawler Length, ft (mm)
    6 ft 10 in (2084)
  • Pump Capacity, GPM (LPM)
    10.5 (39.6.) x 2 / 5.5 (20.9) x 1
  • Auxiliary Hydraulics Flow Rate, GPM (LPM)
    15.8 (60)
  • Bucket Breakout Force, lbs (kgf)
    7924 (3594)
  • Arm Breakout Force, lbs (kgf)
    4451 (2019)
  • Traveling Speed: High, mph (kph)
    1.9 (3.0)
  • Traveling Speed: Low, mph (kph)
    2.9 (4.6)
  • Ground Contact Pressure psi, kgf (cm2)
    Rubber: 4.89 (0.34) / 5.08 (0.36) Steel: 5.00 (0.35) / 5.19 (0.36), Angle blade rubber: 5.10 (0.36) / 5.19 (0.36) Angle blade steel: 5.21 (0.37) / 5.40 (0.38)
  • Blade Width, ft (mm)
    5 ft 6.9 in (1700)
  • Blade Height, in (mm)
    13.5 in (343), Angle Blade: 1 ft 3.2 in (385)
  • Hydraulic Oil Reservoir / System, gal (l)
    11.8 (44.6) / 16.1 (61)
  • Fuel Reservoir, gal (l)
    12.4 (46.9)
  • Operating Weight, lbs (kg)
    Rubber: 8129 (3687) / 8451 (3833), Steel: 8325 (3776) / 8647 (3922), Angle blade rubber: 8478 (3845) / 8800 (3991), Angle blade steel: 8674 (3934) / 8996 (4080)
  • Build
  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

§The Manufacturer's Suggested Retail Price excludes tax, dealer fees, and optional equipment. The equipment shown is for illustrative purposes only and may not be base equipment.
