U17-5

Compact Excavators

MSRP As Low As§
$36,093.00
ROPS option only
Read Disclaimer

Special Offers

CompactExcavators_Models_KXSeries
EXCAVATORS
Save Up to $6,000 or Pay 0% A.P.R. For Up to 60 Months With 0% Down on KX and U Series!*
Details
Farmer Veteran Coalition Rebate
Customer instant rebate for Farmer Veteran Coalition members.
Details
Implement Stand Alone Financing
Stand Alone Financing Installment Program
Details

Features

U17-5

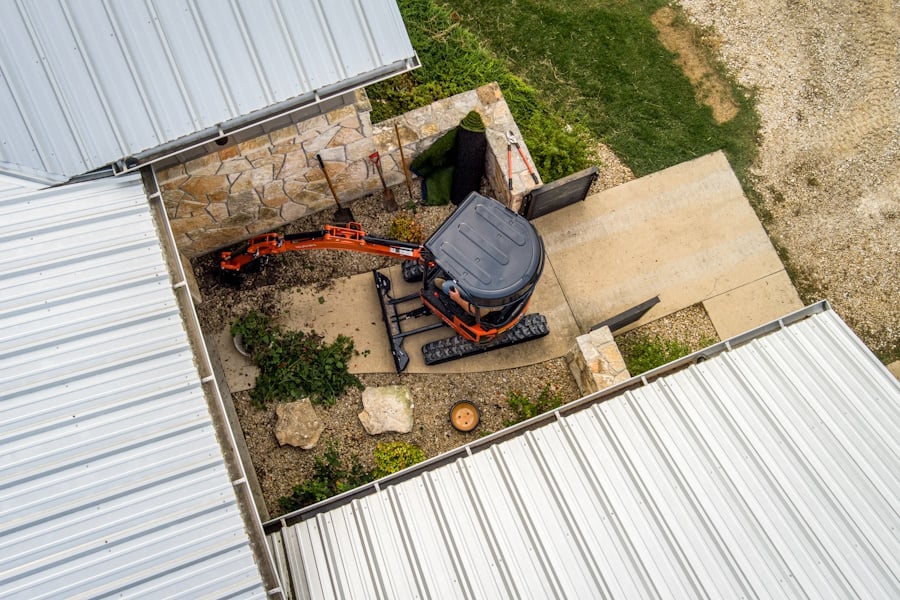

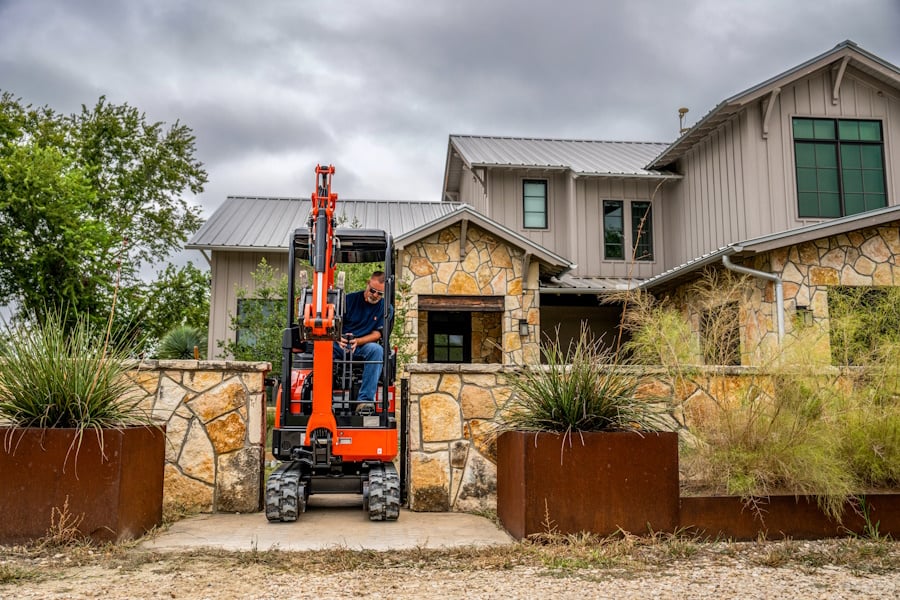

Expandable / retractable tracks and dozer blade for narrow entry access

U17-5

Operator monitor has been repositioned forward for easier view by the operator

U17-5

Auto idle feature

U17-5 Charging Port and Phone Pocket

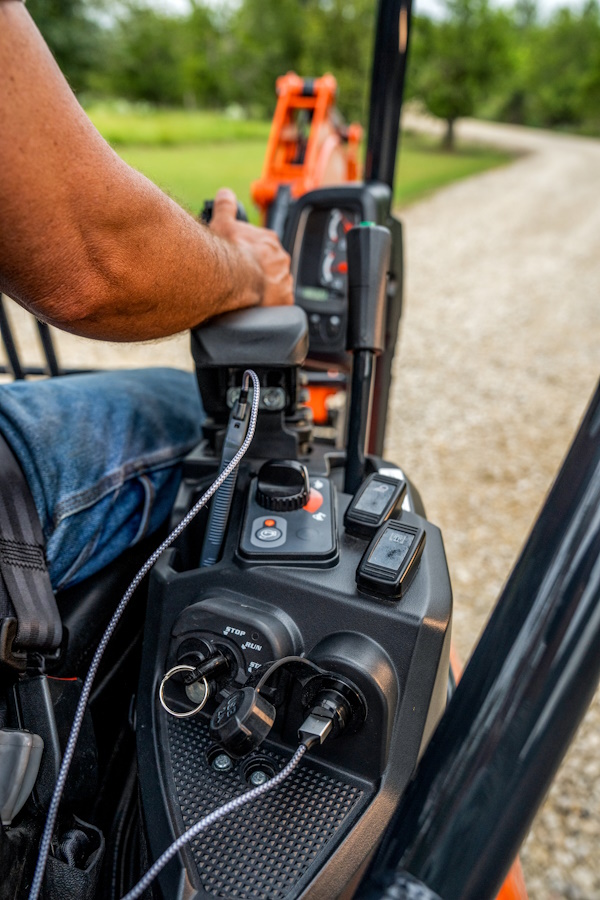

USB charging port and phone pocket

U17-5 Thumb Bracket

Thumb bracket

U17-5

Diverter valve

U17-5

KubotaNOW telematics pre wired at factory

U17-5

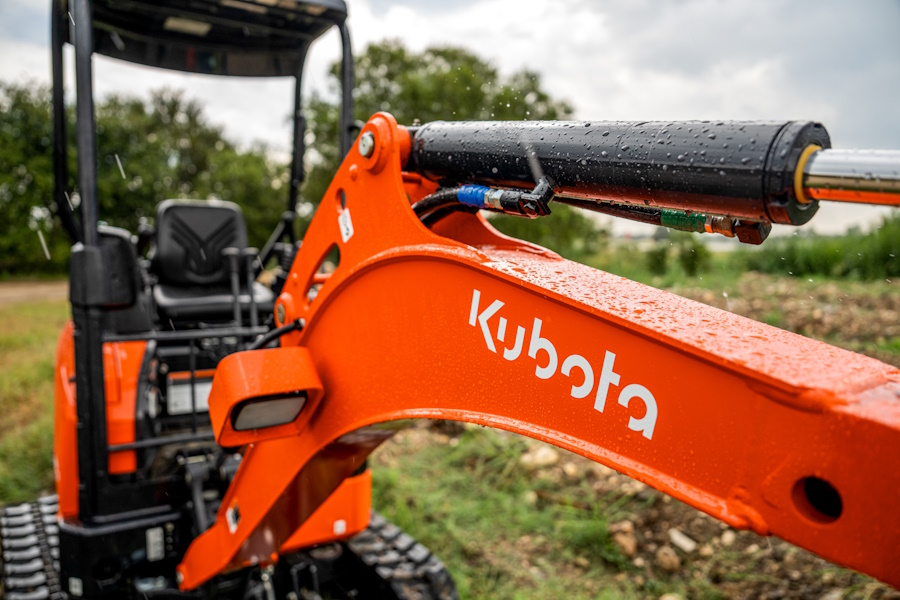

Boom mounted LED work light

U17-5

Expandable / retractable tracks and dozer blade for narrow entry access

U17-5

Operator monitor has been repositioned forward for easier view by the operator

U17-5

Auto idle feature

U17-5 Charging Port and Phone Pocket

USB charging port and phone pocket

U17-5 Thumb Bracket

Thumb bracket

U17-5

Diverter valve

U17-5

KubotaNOW telematics pre wired at factory

U17-5

Boom mounted LED work light


Specs & Compare

Compare Kubota Models
U17-5
16.1 HP
MSRP AS LOW AS§
$36,093.00
  • Engine Model
    Kubota D902-E4-BH-6EU
  • Horsepower (gross)
    16.1
  • Displacement (cu. in.)
    54.8
  • Overall Length, ft (mm)
    11 ft 7.7 in (3550)
  • Overall Height, ft (mm)
    7 ft 9.3 in (2370)
  • Overall Width, ft (mm)
    3 ft 3.4 in (1000) / 4 ft 3.2 in (1300)
  • Min. Ground Clearance, in (mm)
    6.1in (155)
  • Crawler Length, ft (mm)
    5 ft 2.2 in (1580)
  • Pump Capacity, GPM (LPM)
    4.6 (17.3)
  • Auxiliary Hydraulics Flow Rate, GPM (LPM)
    7.3 (27.7)
  • Bucket Breakout Force, lbs (kgf)
    15.8 kN (1609)
  • Arm Breakout Force, lbs (kgf)
    8.7 kN (887.2)
  • Traveling Speed: High, mph (kph)
    2.7 (4.4)
  • Traveling Speed: Low, mph (kph)
    1.4 (2.3)
  • Ground Contact Pressure psi, kgf (cm2)
    4.0 (0.29)
  • Blade Width, ft (mm)
    4 ft 3.2 in (1300) / 3 ft 3 in (990)
  • Blade Height, in (mm)
    10.2 in (260)
  • Hydraulic Oil Reservoir / System, gal (l)
    3.4 (13) / 5.8 (21.8)
  • Fuel Reservoir, gal (l)
    5.3 (13)
  • Operating Weight, lbs (kg)
    3902 (1770)
  • Build
  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

§The Manufacturer's Suggested Retail Price excludes tax, dealer fees, and optional equipment. The equipment shown is for illustrative purposes only and may not be base equipment.
