U17

Compact Excavators Construction

For Competitive Pricing
Refer to Dealer

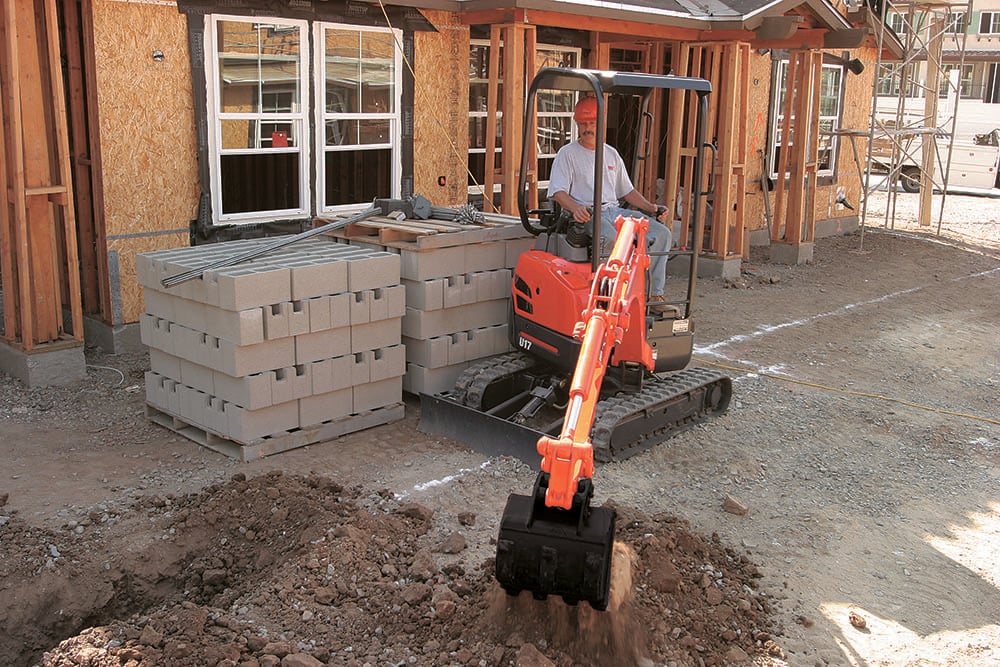

Tough job? Tight spaces? The Kubota U17 Compact Excavator is here to save the day. Standard two speed travel ensures you’re in total control of your excavator and a variable width undercarriage allows for maneuverability through narrow areas such as doors or gates. Rubber tracks make for a smoother ride and from your seat in the comfortable and spacious operator’s station, you’ll make ample use of the U17’s 16.1 horsepower rating. Kubota is the world’s #1 selling compact excavator for 20 years.*

*According to 2023 data from Off-Highway Research including all Kubota Group brand sales.

Read Disclaimer

Special Offers

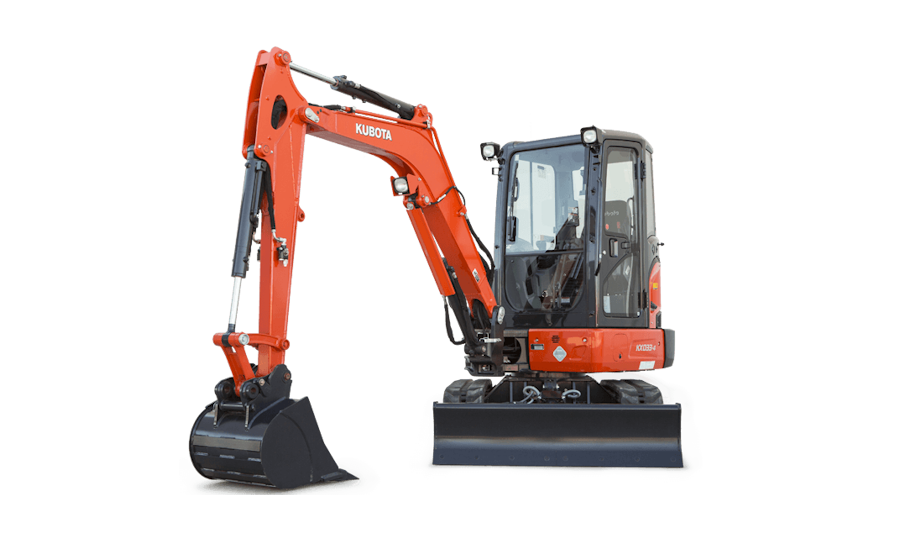

CompactExcavators_Models_KXSeries
EXCAVATORS
Save up to $6,000 or pay 0% A.P.R. for up to 48 Months with 0% Down on KX AND U SERIES!
Details
Farmer Veteran Coalition Rebate
Customer instant rebate for Farmer Veteran Coalition members.
Details
Implement Stand Alone Financing
Stand Alone Financing Installment Program
Details

Features

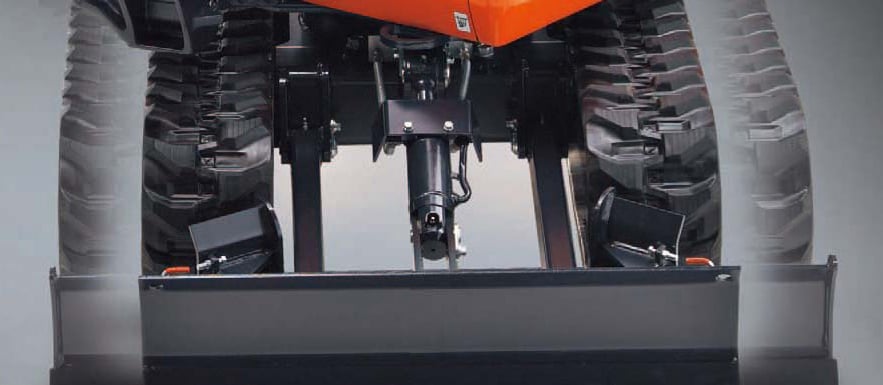

Variable Width Undercariage

Variable Width Undercarriage**

To enable passage through narrow spaces such as doorways and gates, the adjustable width track frame can reduce by simply operating a single lever. Plus, changing the blade width is as easy as removing one pin by hand.

**Available on U17

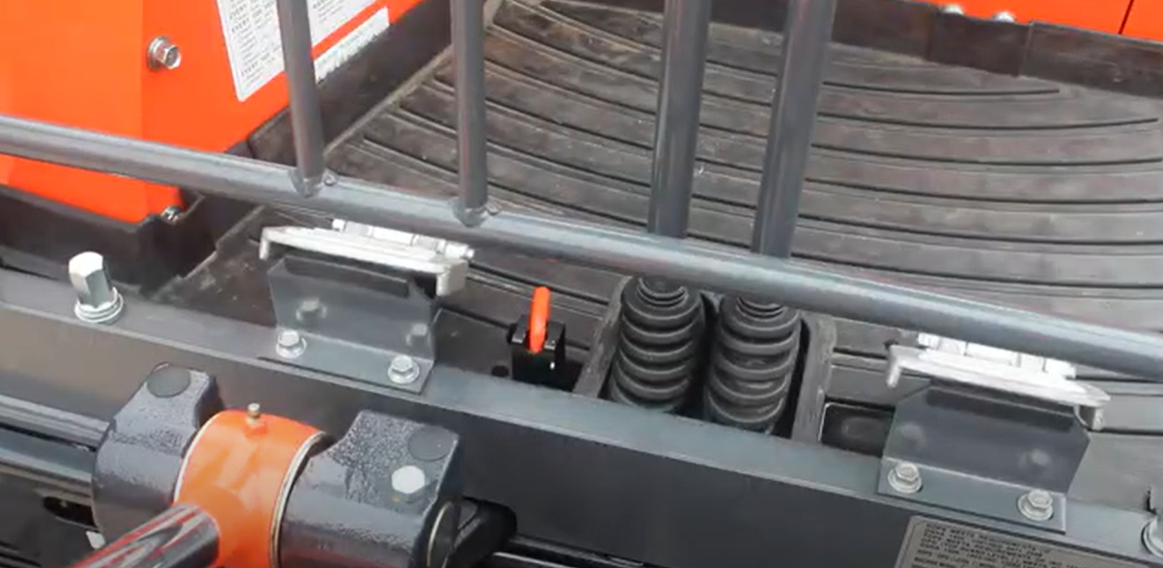

Auxiliary

  • Proportional flow control of auxiliary circuit (AUX1) and maximum oil flow setting – you can operate a larger variety of auxiliary attachments than ever before
  • Proportional AUX flow switch – a convenient bi-directional switch enables easy operation of hydraulic thumbs and other hydraulic attachments such as augers and breakers

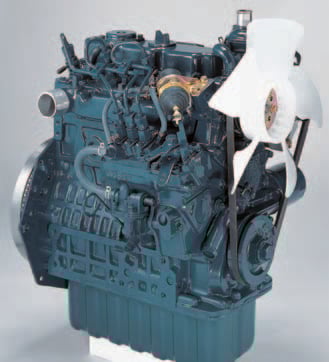

KX018-4_Cat No.8794-01-EU_Page_3_Image_0004

Clean Running Kubota Tier 4 Engine

Kubota excavators are all powered by Kubota Tier 4 emission engines. The modern engine design maximizes digging and lifting performance, delivers minimized noise and vibration and meets the latest engine emission regulation.

TPSS__

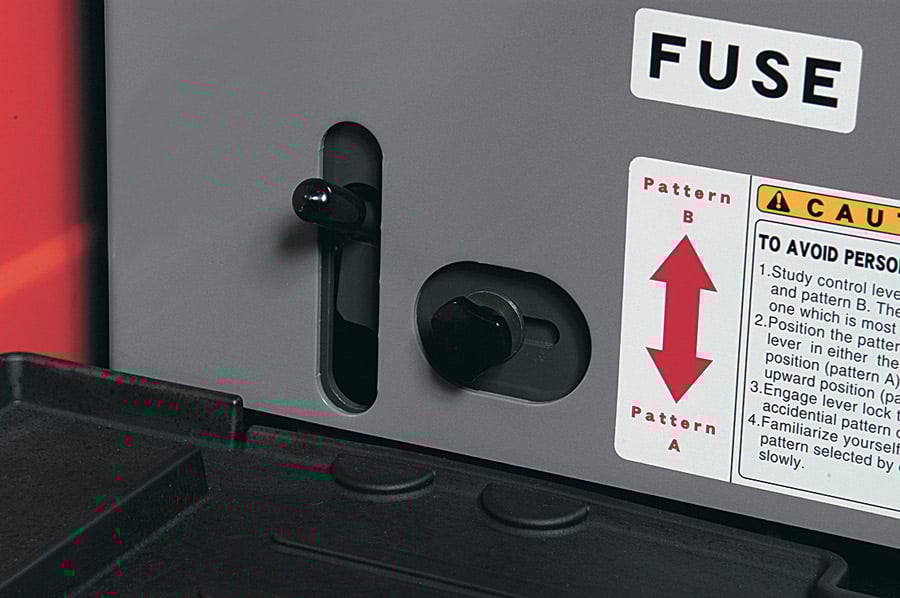

Changeable Control Pattern

Convenient Two-pattern Selection System (TPSS) allows you to change between ISO and SAE operating patterns with a quick flip of the TPSS switch – without tools or leaving your seat.

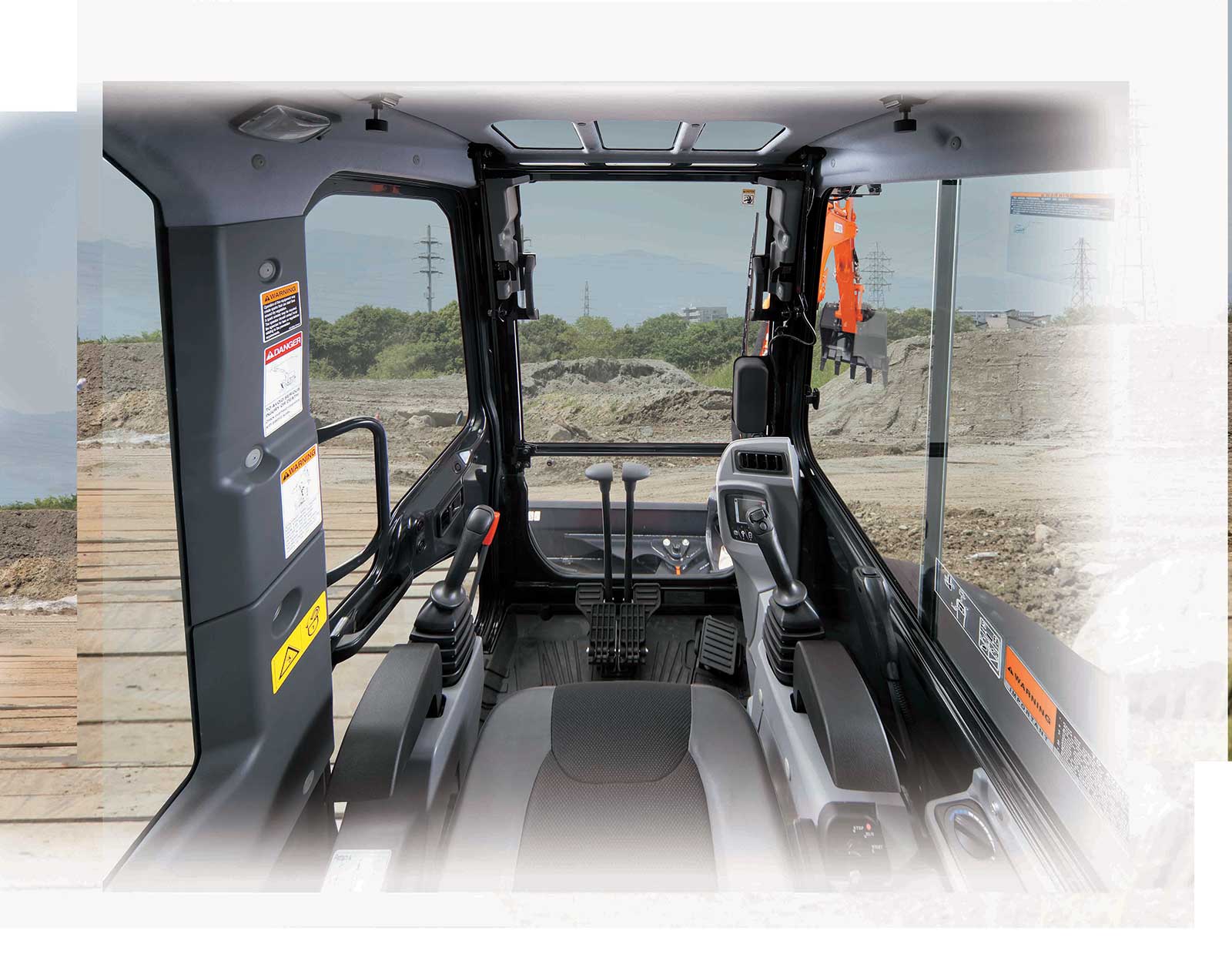

h_MG_4510-KX033

Comfort & Convenience

  • A spacious operator station designed for greater comfort, with a fully flat floor for more legroom
  • Digital panel with easy access, simple settings and easy-to-read indicators and alerts
  • Easy cab entry and exit
  • Easy-open front slide window
  • Wrist rest
  • Cup holder
  • Optional cab

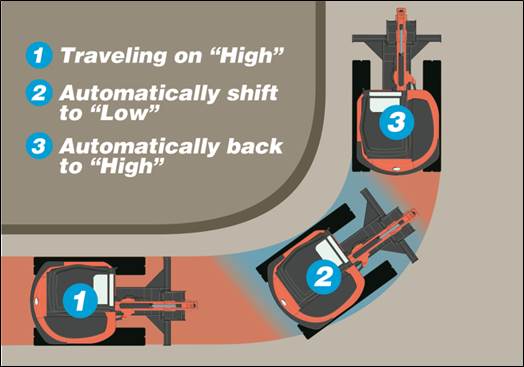

auto downshift

Two Speed Travel

All Kubota excavators have a two speed drive that allows for efficient machine maneuverability and backfill operations.

IMG_5823

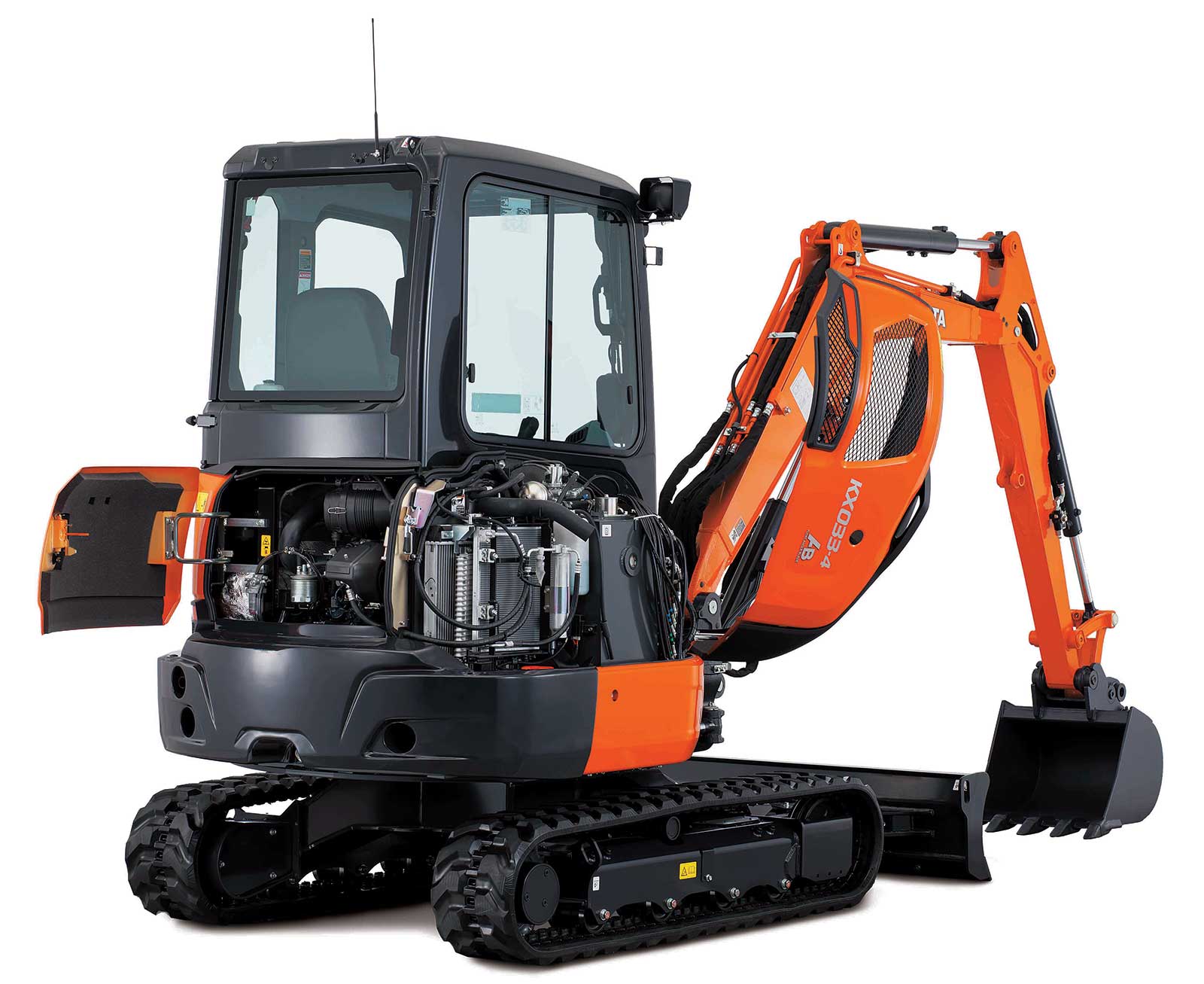

Serviceability

  • Front pin bushings to help maximize durability
  • Centralized swivel bearing lubrication
  • Protected cylinder hoses
  • Steel hood panels
  • One-sided engine maintenance
  • Wide hood openings for easy access to engine and other vital components
Variable Width Undercariage

Variable Width Undercarriage**

To enable passage through narrow spaces such as doorways and gates, the adjustable width track frame can reduce by simply operating a single lever. Plus, changing the blade width is as easy as removing one pin by hand.

**Available on U17

Auxiliary

  • Proportional flow control of auxiliary circuit (AUX1) and maximum oil flow setting – you can operate a larger variety of auxiliary attachments than ever before
  • Proportional AUX flow switch – a convenient bi-directional switch enables easy operation of hydraulic thumbs and other hydraulic attachments such as augers and breakers
KX018-4_Cat No.8794-01-EU_Page_3_Image_0004

Clean Running Kubota Tier 4 Engine

Kubota excavators are all powered by Kubota Tier 4 emission engines. The modern engine design maximizes digging and lifting performance, delivers minimized noise and vibration and meets the latest engine emission regulation.

TPSS__

Changeable Control Pattern

Convenient Two-pattern Selection System (TPSS) allows you to change between ISO and SAE operating patterns with a quick flip of the TPSS switch – without tools or leaving your seat.

h_MG_4510-KX033

Comfort & Convenience

  • A spacious operator station designed for greater comfort, with a fully flat floor for more legroom
  • Digital panel with easy access, simple settings and easy-to-read indicators and alerts
  • Easy cab entry and exit
  • Easy-open front slide window
  • Wrist rest
  • Cup holder
  • Optional cab
auto downshift

Two Speed Travel

All Kubota excavators have a two speed drive that allows for efficient machine maneuverability and backfill operations.

IMG_5823

Serviceability

  • Front pin bushings to help maximize durability
  • Centralized swivel bearing lubrication
  • Protected cylinder hoses
  • Steel hood panels
  • One-sided engine maintenance
  • Wide hood openings for easy access to engine and other vital components

Specs & Compare

Compare Kubota Models
U17
16.1 HP
SEE DEALERSHIP FOR PRICE
  • Engine Model
    Kubota D902-E4
  • Horsepower (gross)
    16.1
  • Displacement (cu. in.)
    54.8
  • Overall Length, ft (mm)
    11 ft 7 in (3545)
  • Overall Height, ft (mm)
    7 ft 8 in (2340)
  • Overall Width, ft (mm)
    3 ft 3 in (990) / 4 ft 1 in (1240)
  • Min. Ground Clearance, in (mm)
    5.9in (150)
  • Crawler Length, ft (mm)
    5 ft 2 in (1585)
  • Pump Capacity, GPM (LPM)
    4.57 (17.3) × 2 / 2.75 (10.4) × 1
  • Auxiliary Hydraulics Flow Rate, GPM (LPM)
    7.32 (27.7)
  • Bucket Breakout Force, lbs (kgf)
    3417.2 (1550)
  • Arm Breakout Force, lbs (kgf)
    1918 (870)
  • Traveling Speed: High, mph (kph)
    1.4 (2.2)
  • Traveling Speed: Low, mph (kph)
    2.6 (4.0)
  • Ground Contact Pressure psi, kgf (cm2)
    3.8 (0.27)
  • Blade Width, ft (mm)
    4 ft 1 in (1240) / 3 ft 3 in (990)
  • Blade Height, in (mm)
    10.3 in (260)
  • Hydraulic Oil Reservoir / System, gal (l)
    5.02 (19)
  • Fuel Reservoir, gal (l)
    5.02 (19)
  • Operating Weight, lbs (kg)
    3703 (1680)
  • Build
  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

§The Manufacturer's Suggested Retail Price excludes tax, dealer fees, and optional equipment. The equipment shown is for illustrative purposes only and may not be base equipment.
