U10-5

Compact Excavators Construction

For Competitive Pricing
Refer to Dealer

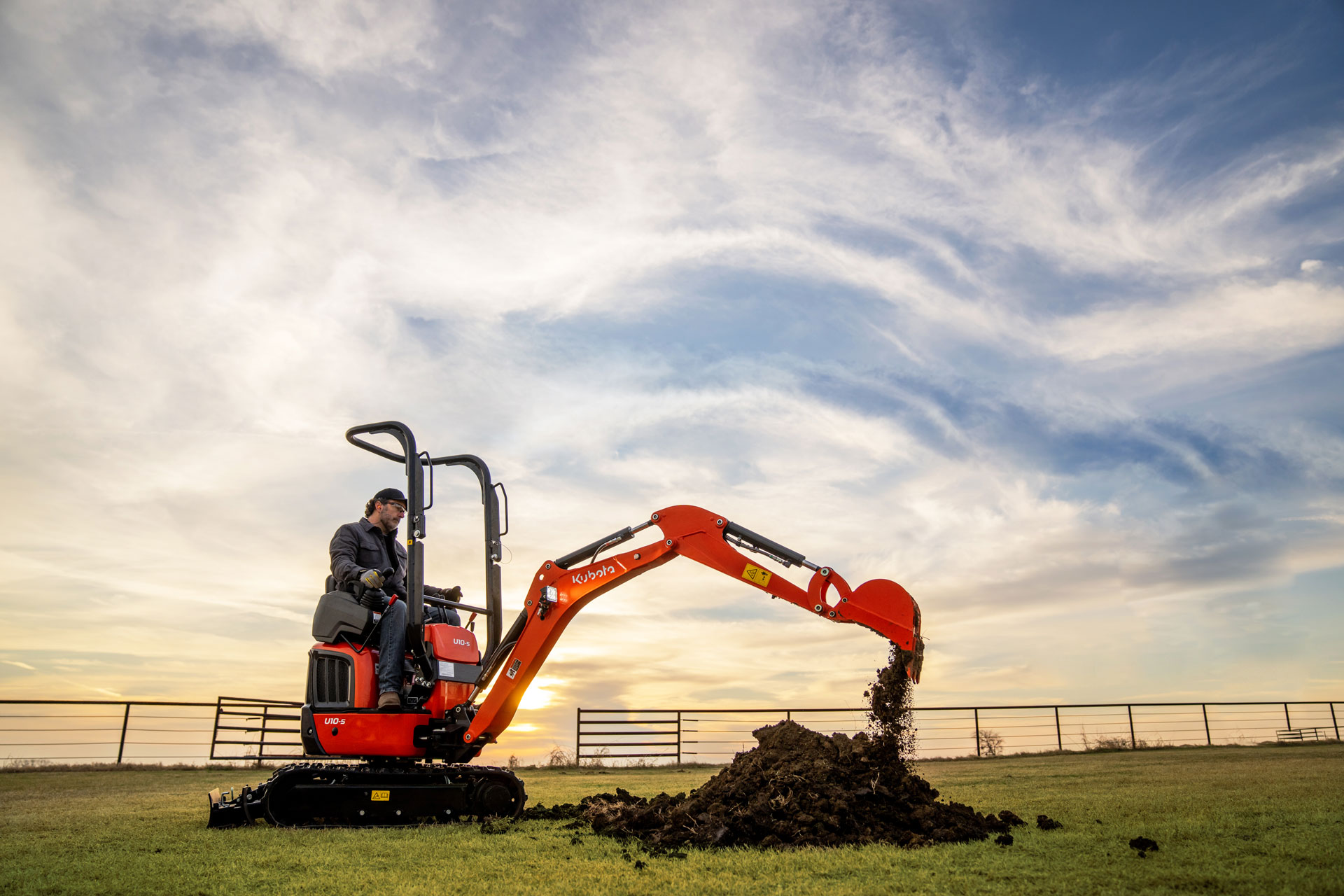

The Kubota U10-5 highlights a 10’ digging height and 5’ 11” digging depth, an incredible offering inside its ultra-compact frame. Kubota’s reputation for durability and operator comfort shine through in the U10-5 and you’ll also have access to an adjustable track range and standard two-speed for increased control.  Kubota is the world’s #1 selling compact excavator for 20 years.*

*According to 2023 data from Off-Highway Research including all Kubota Group brand sales.

Read Disclaimer

Special Offers

CompactExcavators_Models_KXSeries
EXCAVATORS
Save up to $6,000 or pay 0% A.P.R. for up to 48 Months with 0% Down on KX AND U SERIES!
Details
Farmer Veteran Coalition Rebate
Customer instant rebate for Farmer Veteran Coalition members.
Details
Implement Stand Alone Financing
Stand Alone Financing Installment Program
Details

Features

Variable Width Undercariage

Variable Width Undercarriage*

To enable passage through narrow spaces such as doorways and gates, the adjustable width track frame can be reduced by simply operating a single lever. Plus, changing the blade width is as easy as removing one pin by hand.

*Available on K008-3, K008-5, U10-5, KX018-4

KX018-4_Cat No.8794-01-EU_Page_3_Image_0004

Clean Running Kubota Tier 4 Engine

Kubota excavators are all powered by Kubota Tier 4 emission engines. The modern engine design maximizes digging and lifting performance, delivers minimized noise and vibration and meets the latest engine emission regulation.

auto downshift

Two Speed Travel

All Kubota excavators have a two speed drive that allows for efficient machine maneuverability and backfill operations.

TPSS__

Changeable Control Pattern

Convenient Two-pattern Selection System (TPSS) allows you to change between ISO and SAE operating patterns with a quick flip of the TPSS switch – without tools or leaving your seat.

Variable Width Undercariage

Variable Width Undercarriage*

To enable passage through narrow spaces such as doorways and gates, the adjustable width track frame can be reduced by simply operating a single lever. Plus, changing the blade width is as easy as removing one pin by hand.

*Available on K008-3, K008-5, U10-5, KX018-4

KX018-4_Cat No.8794-01-EU_Page_3_Image_0004

Clean Running Kubota Tier 4 Engine

Kubota excavators are all powered by Kubota Tier 4 emission engines. The modern engine design maximizes digging and lifting performance, delivers minimized noise and vibration and meets the latest engine emission regulation.

auto downshift

Two Speed Travel

All Kubota excavators have a two speed drive that allows for efficient machine maneuverability and backfill operations.

TPSS__

Changeable Control Pattern

Convenient Two-pattern Selection System (TPSS) allows you to change between ISO and SAE operating patterns with a quick flip of the TPSS switch – without tools or leaving your seat.


Specs & Compare

Compare Kubota Models
U10-5
10.3 HP
SEE DEALERSHIP FOR PRICE
  • Engine Model
    Kubota D722-E4
  • Horsepower (gross)
    10.3
  • Displacement (cu. in.)
    43.8
  • Overall Length, ft (mm)
    9ft 9in (2980)
  • Overall Height, ft (mm)
    7ft 5in (2260)
  • Overall Width, ft (mm)
    3ft 3in (990) / 2ft 6in (750)
  • Min. Ground Clearance, in (mm)
    5.5in (140)
  • Crawler Length, ft (mm)
    4ft 5in (1340)
  • Pump Capacity, GPM (LPM)
    2.8 (10.5) x 2
  • Auxiliary Hydraulics Flow Rate, GPM (LPM)
    5.5 (21.0)
  • Bucket Breakout Force, lbs (kgf)
    2337 (1060)
  • Arm Breakout Force, lbs (kgf)
    1214 (550.6)
  • Traveling Speed: High, mph (kph)
    2.5 (4.0)
  • Traveling Speed: Low, mph (kph)
    1.2 (2.0)
  • Ground Contact Pressure psi, kgf (cm2)
    4.2 (0.30)
  • Blade Width, ft (mm)
    3ft 3in / 2ft 6in (990 / 750)
  • Blade Height, in (mm)
    7.9in (200)
  • Hydraulic Oil Reservoir / System, gal (l)
    3.3 / 4.5 (12.6 / 17.1)
  • Fuel Reservoir, gal (l)
    3.2 (12.0)
  • Operating Weight, lbs (kg)
    2646 (1200)
  • Build
  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

§The Manufacturer's Suggested Retail Price excludes tax, dealer fees, and optional equipment. The equipment shown is for illustrative purposes only and may not be base equipment.
