KX080-5

Compact Excavators

MSRP As Low As§
$128,401.00
Cab option only

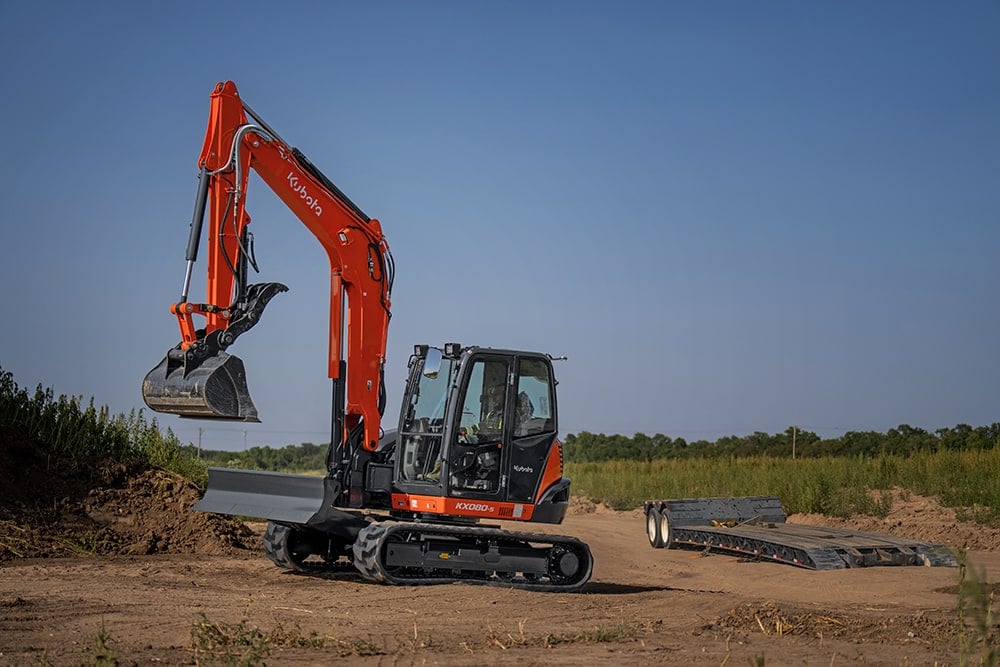

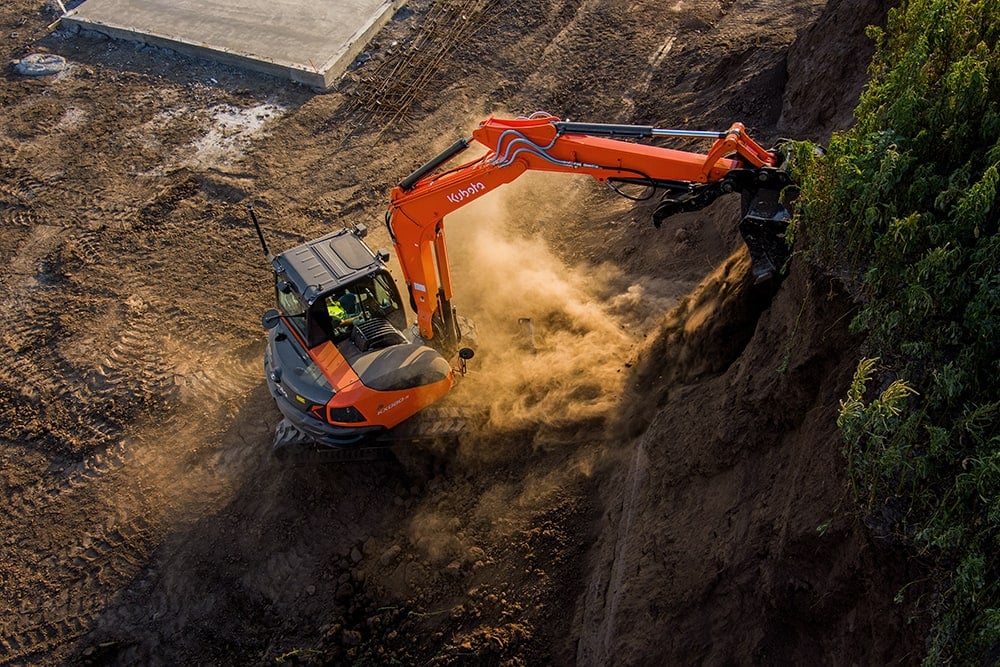

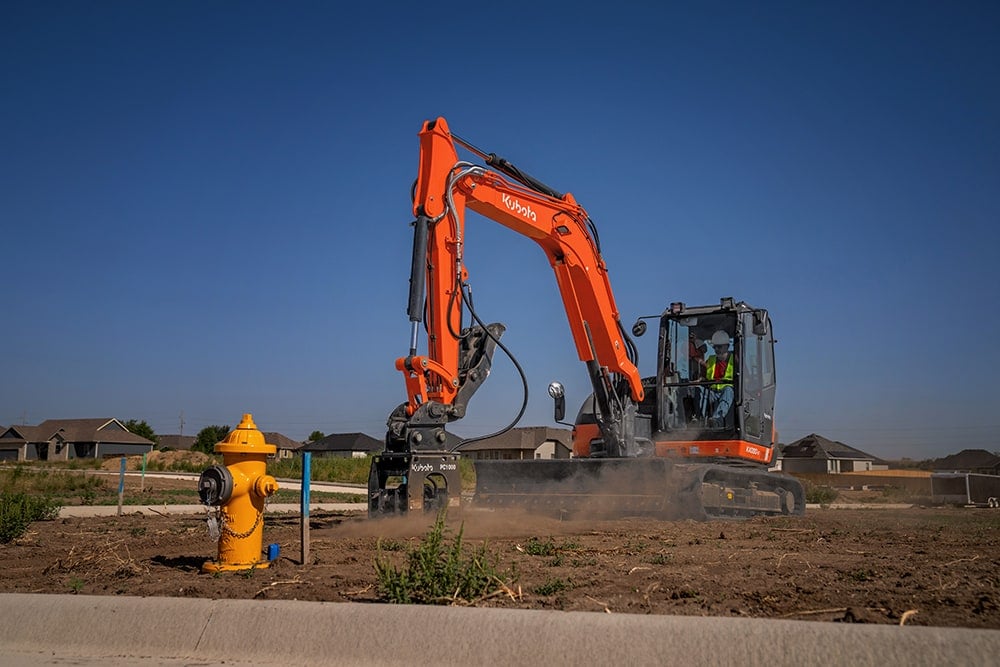

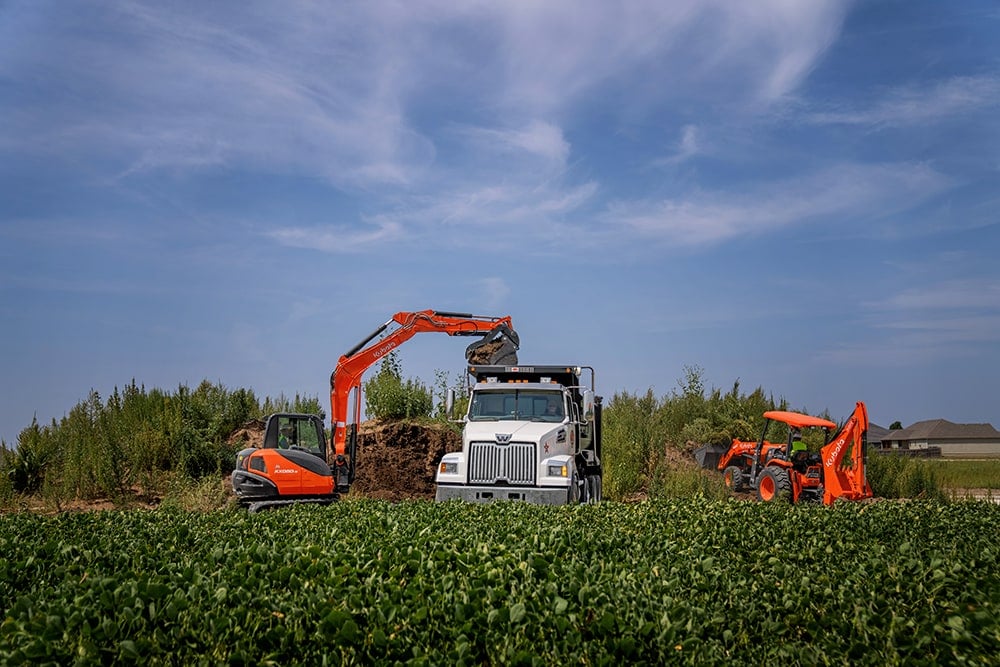

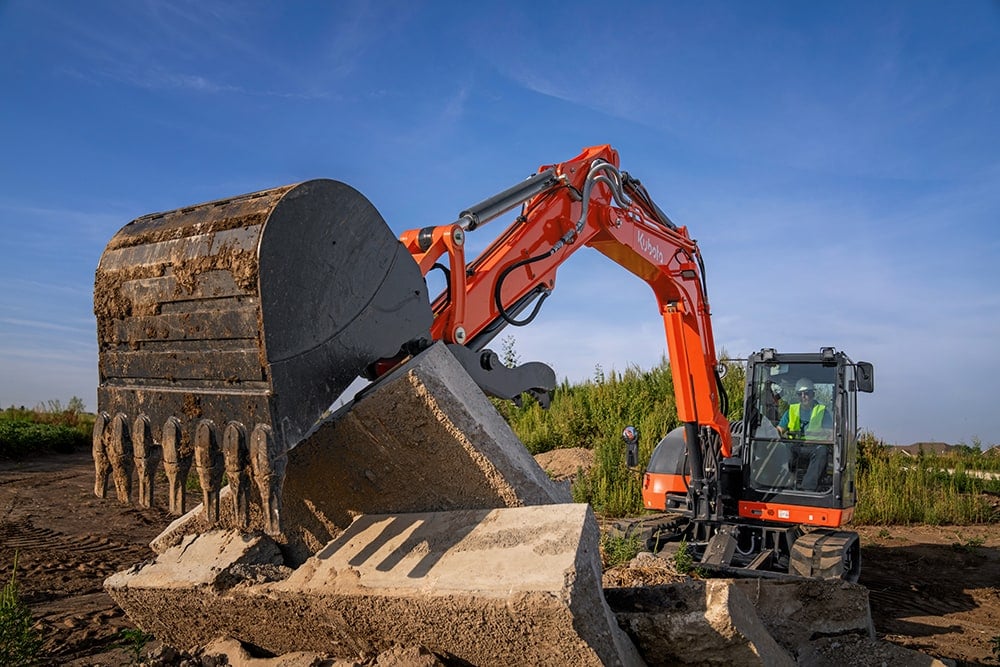

If you’re looking for top-of-the-line performance from your compact excavator, you’ve found what you’re looking for with the Kubota KX080-5. You’ll never struggle to get the job done with the KX080-5’s overpowering 66.6 horsepower produced by Kubota’s V3307-CR-TE5 engine. The KX080-5 is excavation bliss, and the only thing that’s missing is you. Kubota is the world’s #1 selling compact excavator for 20 years.*

*According to 2023 data from Off-Highway Research including all Kubota Group brand sales.

Read Disclaimer

Special Offers

CompactExcavators_Models_KXSeries
EXCAVATORS
Save up to $6,000 or pay 0% A.P.R. for up to 60 Months with 0% Down on KX AND U SERIES!
Details
Farmer Veteran Coalition Rebate
Customer instant rebate for Farmer Veteran Coalition members.
Details
Implement Stand Alone Financing
Stand Alone Financing Installment Program
Details

Features

h_MG_4396_KX033

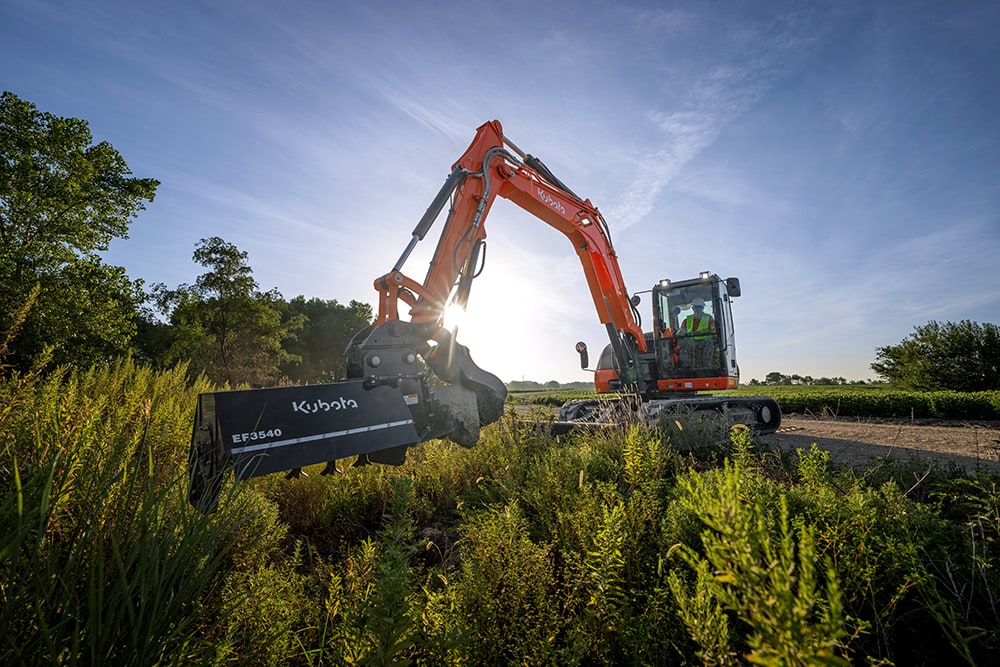

Angle Blade Optional Hydraulic Angle Blade*

Save time and work more efficiently. With a simple movement of the new thumb operated rocker switch on the dozer lever, the hydraulic angle blade (optional) can be angled to the right or left to push soil to the side as the machine moves forward, eliminating the need for repetitive repositioning at right angles when backfilling trenches.

*Available on KX033-4, KX040-4, KX057-5, KX080-4S, KX080-5

KX018-4_Cat No.8794-01-EU_Page_3_Image_0004

Clean Running Kubota Tier 4 Engine

Kubota excavators are all powered by Kubota Tier 4 emission engines. The modern engine design maximizes digging and lifting performance, delivers minimized noise and vibration and meets the latest engine emission regulation.

auto downshift

Two Speed Travel

All Kubota excavators have a two speed drive that allows for efficient machine maneuverability and backfill operations.

TPSS__

Changeable Control Pattern

Convenient Two-pattern Selection System (TPSS) allows you to change between ISO and SAE operating patterns with a quick flip of the TPSS switch – without tools or leaving your seat.

h_MG_4510-KX033

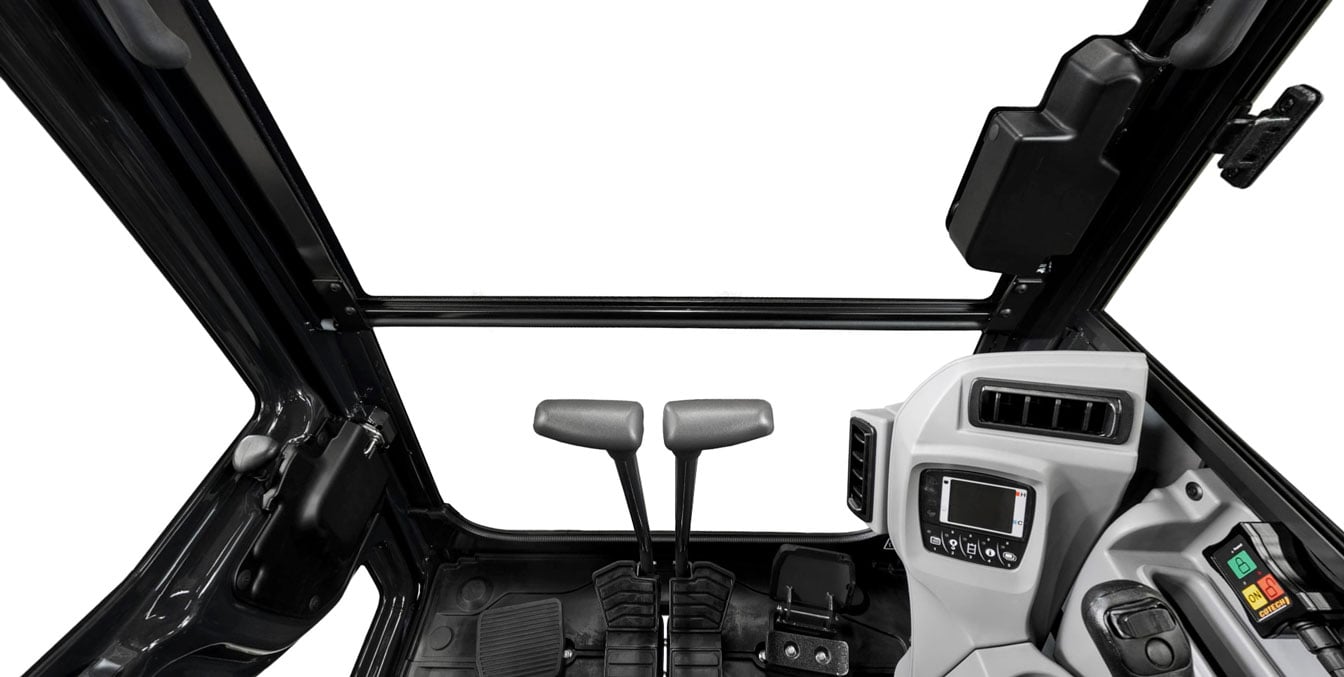

Comfort & Convenience

  • A spacious operator station designed for greater comfort, with a fully flat floor for more legroom
  • Digital panel with easy access, simple settings and easy-to-read indicators and alerts
  • Easy cab entry and exit
  • Easy-open front slide window
  • Wrist rest
  • Cup holder
  • Optional cab
IMG_5823

Serviceability

  • Front pin bushings to help maximize durability
  • Centralized swivel bearing lubrication
  • Protected cylinder hoses
  • Steel hood panels
  • One-sided engine maintenance
  • Wide hood openings for easy access to engine and other vital components

Auxiliary

  • Proportional flow control of auxiliary circuit (AUX1) and maximum oil flow setting – you can operate a larger variety of auxiliary attachments than ever before
  • Proportional AUX flow switch – a convenient bi-directional switch enables easy operation of hydraulic thumbs and other hydraulic attachments such as augers and breakers
h_MG_4396_KX033

Angle Blade Optional Hydraulic Angle Blade*

Save time and work more efficiently. With a simple movement of the new thumb operated rocker switch on the dozer lever, the hydraulic angle blade (optional) can be angled to the right or left to push soil to the side as the machine moves forward, eliminating the need for repetitive repositioning at right angles when backfilling trenches.

*Available on KX033-4, KX040-4, KX057-5, KX080-4S, KX080-5

KX018-4_Cat No.8794-01-EU_Page_3_Image_0004

Clean Running Kubota Tier 4 Engine

Kubota excavators are all powered by Kubota Tier 4 emission engines. The modern engine design maximizes digging and lifting performance, delivers minimized noise and vibration and meets the latest engine emission regulation.

auto downshift

Two Speed Travel

All Kubota excavators have a two speed drive that allows for efficient machine maneuverability and backfill operations.

TPSS__

Changeable Control Pattern

Convenient Two-pattern Selection System (TPSS) allows you to change between ISO and SAE operating patterns with a quick flip of the TPSS switch – without tools or leaving your seat.

h_MG_4510-KX033

Comfort & Convenience

  • A spacious operator station designed for greater comfort, with a fully flat floor for more legroom
  • Digital panel with easy access, simple settings and easy-to-read indicators and alerts
  • Easy cab entry and exit
  • Easy-open front slide window
  • Wrist rest
  • Cup holder
  • Optional cab
IMG_5823

Serviceability

  • Front pin bushings to help maximize durability
  • Centralized swivel bearing lubrication
  • Protected cylinder hoses
  • Steel hood panels
  • One-sided engine maintenance
  • Wide hood openings for easy access to engine and other vital components

Auxiliary

  • Proportional flow control of auxiliary circuit (AUX1) and maximum oil flow setting – you can operate a larger variety of auxiliary attachments than ever before
  • Proportional AUX flow switch – a convenient bi-directional switch enables easy operation of hydraulic thumbs and other hydraulic attachments such as augers and breakers

Specs & Compare

Compare Kubota Models
KX080-5
66.6 HP
MSRP AS LOW AS§
$128,401.00
  • Engine Model
    Kubota V3307-CR-TE5
  • Horsepower (gross)
    66.6
  • Displacement (cu. in.)
    203.3
  • Overall Length, ft (mm)
    21ft 1.9in (6450)
  • Overall Height, ft (mm)
    8ft 4in (2450)
  • Overall Width, ft (mm)
    7ft 2.6in (2200)
  • Min. Ground Clearance, in (mm)
    14.0in (355)
  • Crawler Length, ft (mm)
    9ft 6.2in (2900)
  • Pump Capacity, GPM (LPM)
    22.3 (84.6) Variable x 2
  • Auxiliary Hydraulics Flow Rate, GPM (LPM)
    26.4 (100) / 14.7 (55.8)
  • Bucket Breakout Force, lbs (kgf)
    14660 (6650)
  • Arm Breakout Force, lbs (kgf)
    8554 (3880)
  • Traveling Speed: High, mph (kph)
    3.0 (4.8)
  • Traveling Speed: Low, mph (kph)
    1.7 (2.7)
  • Ground Contact Pressure psi, kgf (cm2)
    Rubber/steel: 5.29 (0.372) / 5.35 (0.376), Angle blade rubber/steel: 5.56 (0.391) / 5.60 (0.394)
  • Blade Width, ft (mm)
    7ft 2.6in (2200)
  • Blade Height, in (mm)
    19.7in (500), Angle Blade: 20.1in (510)
  • Hydraulic Oil Reservoir / System, gal (l)
    19.8 (75) / 38.6 (146)
  • Fuel Reservoir, gal (l)
    30.4 (115)
  • Operating Weight, lbs (kg)
    Rubber/steel: 18520 (8400) / 18760 (8510), Angle blade rubber/steel: 19470 (8830) / 19620 (8900)
  • Build
  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

§The Manufacturer's Suggested Retail Price excludes tax, dealer fees, and optional equipment. The equipment shown is for illustrative purposes only and may not be base equipment.
