KX057-5

Compact Excavators Construction

For Competitive Pricing
Refer to Dealer

The Kubota KX057-5 doesn’t just give you the best in durability, comfort and performance-- it embodies Kubota’s ever-growing pursuit of innovation. Rated at 47.6 horsepower, the compact excavator is built to help you dig deeper, lift higher and dominate whatever task you throw its way. Let’s get to work. Kubota is the world’s #1 selling compact excavator for 20 years.*

*According to 2023 data from Off-Highway Research including all Kubota Group brand sales.



Read Disclaimer

Special Offers

CompactExcavators_Models_KXSeries
EXCAVATORS
Save up to $6,000 or pay 0% A.P.R. for up to 48 Months with 0% Down on KX AND U SERIES!
Details
Farmer Veteran Coalition Rebate
Customer instant rebate for Farmer Veteran Coalition members.
Details
Implement Stand Alone Financing
Stand Alone Financing Installment Program
Details

Features

KX057-5 (1)

New Features

  • NEW - 7" LCD Color Display with jog dial (Standard)
  • NEW Keyless Start - start the excavator without the use of a manual key; no more losing or can't find your keys; excavator will store up to (10) user passcodes to start the machine; anti theft tool (Dealer - Option)
  • Rearview Camera - factory ready; dealer installed option; engage the rearview camera by pressing the 'camera' button on the right hand side key pad; screen will split with machine information on top and a clear view behind the excavator
  • Automatic One Way Flow Hydraulic Return Line (3rd Line) - on the (-4) excavators the 3rd return line is engaged manually on the right side valve bank; the new feature is electronic and engaged through the display
  • Dual Adjustable Seat & Console - allows the operator to find the perfect operating position in the cab
  • LED Working Lights - standard feature; changed from Halogen lights to LED
  • Improved AC System - improved from (5) air vents to, now, (7) air vents for quick cool down or heat defrost
h_MG_4396_KX033

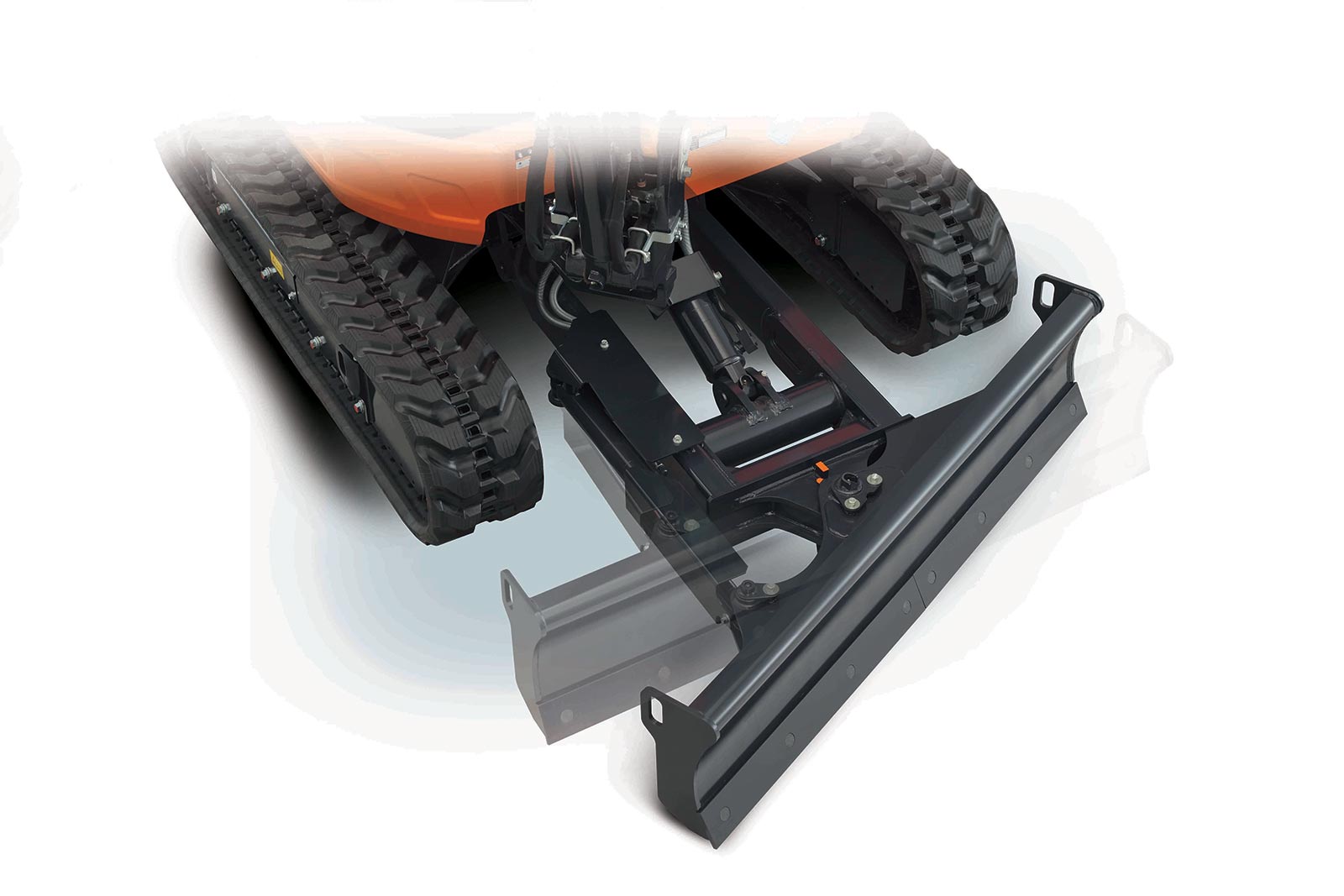

Angle Blade Optional Hydraulic Angle Blade*

Save time and work more efficiently. With a simple movement of the new thumb operated rocker switch on the dozer lever, the hydraulic angle blade (optional) can be angled to the right or left to push soil to the side as the machine moves forward, eliminating the need for repetitive repositioning at right angles when backfilling trenches.

*Available on KX033-4, KX040-4, KX057-5, KX080-4S, KX080-5

KX018-4_Cat No.8794-01-EU_Page_3_Image_0004

Clean Running Kubota Tier 4 Engine

Kubota excavators are all powered by Kubota Tier 4 emission engines. The modern engine design maximizes digging and lifting performance, delivers minimized noise and vibration and meets the latest engine emission regulation.

auto downshift

Two Speed Travel

All Kubota excavators have a two speed drive that allows for efficient machine maneuverability and backfill operations.

TPSS__

Changeable Control Pattern

Convenient Two-pattern Selection System (TPSS) allows you to change between ISO and SAE operating patterns with a quick flip of the TPSS switch – without tools or leaving your seat.

h_MG_4510-KX033

Comfort & Convenience

  • A spacious operator station designed for greater comfort, with a fully flat floor for more legroom
  • Digital panel with easy access, simple settings and easy-to-read indicators and alerts
  • Easy cab entry and exit
  • Easy-open front slide window
  • Wrist rest
  • Cup holder
  • Optional cab
IMG_5823

Serviceability

  • Front pin bushings to help maximize durability
  • Centralized swivel bearing lubrication
  • Protected cylinder hoses
  • Steel hood panels
  • One-sided engine maintenance
  • Wide hood openings for easy access to engine and other vital components

Auxiliary

  • Proportional flow control of auxiliary circuit (AUX1) and maximum oil flow setting – you can operate a larger variety of auxiliary attachments than ever before
  • Proportional AUX flow switch – a convenient bi-directional switch enables easy operation of hydraulic thumbs and other hydraulic attachments such as augers and breakers
KX057-5 (1)

New Features

  • NEW - 7" LCD Color Display with jog dial (Standard)
  • NEW Keyless Start - start the excavator without the use of a manual key; no more losing or can't find your keys; excavator will store up to (10) user passcodes to start the machine; anti theft tool (Dealer - Option)
  • Rearview Camera - factory ready; dealer installed option; engage the rearview camera by pressing the 'camera' button on the right hand side key pad; screen will split with machine information on top and a clear view behind the excavator
  • Automatic One Way Flow Hydraulic Return Line (3rd Line) - on the (-4) excavators the 3rd return line is engaged manually on the right side valve bank; the new feature is electronic and engaged through the display
  • Dual Adjustable Seat & Console - allows the operator to find the perfect operating position in the cab
  • LED Working Lights - standard feature; changed from Halogen lights to LED
  • Improved AC System - improved from (5) air vents to, now, (7) air vents for quick cool down or heat defrost
h_MG_4396_KX033

Angle Blade Optional Hydraulic Angle Blade*

Save time and work more efficiently. With a simple movement of the new thumb operated rocker switch on the dozer lever, the hydraulic angle blade (optional) can be angled to the right or left to push soil to the side as the machine moves forward, eliminating the need for repetitive repositioning at right angles when backfilling trenches.

*Available on KX033-4, KX040-4, KX057-5, KX080-4S, KX080-5

KX018-4_Cat No.8794-01-EU_Page_3_Image_0004

Clean Running Kubota Tier 4 Engine

Kubota excavators are all powered by Kubota Tier 4 emission engines. The modern engine design maximizes digging and lifting performance, delivers minimized noise and vibration and meets the latest engine emission regulation.

auto downshift

Two Speed Travel

All Kubota excavators have a two speed drive that allows for efficient machine maneuverability and backfill operations.

TPSS__

Changeable Control Pattern

Convenient Two-pattern Selection System (TPSS) allows you to change between ISO and SAE operating patterns with a quick flip of the TPSS switch – without tools or leaving your seat.

h_MG_4510-KX033

Comfort & Convenience

  • A spacious operator station designed for greater comfort, with a fully flat floor for more legroom
  • Digital panel with easy access, simple settings and easy-to-read indicators and alerts
  • Easy cab entry and exit
  • Easy-open front slide window
  • Wrist rest
  • Cup holder
  • Optional cab
IMG_5823

Serviceability

  • Front pin bushings to help maximize durability
  • Centralized swivel bearing lubrication
  • Protected cylinder hoses
  • Steel hood panels
  • One-sided engine maintenance
  • Wide hood openings for easy access to engine and other vital components

Auxiliary

  • Proportional flow control of auxiliary circuit (AUX1) and maximum oil flow setting – you can operate a larger variety of auxiliary attachments than ever before
  • Proportional AUX flow switch – a convenient bi-directional switch enables easy operation of hydraulic thumbs and other hydraulic attachments such as augers and breakers

Specs & Compare

Compare Kubota Models
KX057-5
47.6 HP
SEE DEALERSHIP FOR PRICE
  • Engine Model
    Kubota V2607-CR-E5
  • Horsepower (gross)
    47.6
  • Displacement (cu. in.)
    159.6
  • Overall Length, ft (mm)
    18ft 1in (5520)
  • Overall Height, ft (mm)
    8ft 4in (2550)
  • Overall Width, ft (mm)
    6ft 5in (1960)
  • Min. Ground Clearance, in (mm)
    12.2in (310)
  • Crawler Length, ft (mm)
    8ft 2in (2500)
  • Pump Capacity, GPM (LPM)
    14.8 (56.1) Variable x 2 / 9.8 (37.0) Gear x 1
  • Auxiliary Hydraulics Flow Rate, GPM (LPM)
    19.8 (75) / 9.8 (37)
  • Bucket Breakout Force, lbs (kgf)
    10172 (4614)
  • Arm Breakout Force, lbs (kgf)
    5463 (2478)
  • Traveling Speed: High, mph (kph)
    3.0 (4.8)
  • Traveling Speed: Low, mph (kph)
    1.7 (2.8)
  • Ground Contact Pressure psi, kgf (cm2)
    Rubber canopy/cab: 4.6 (0.32) / 4.7 (0.33), Angle blade rubber canopy/cab: 4.8 (0.33) / 4.9 (0.34), Angle blade steel canopy/cab: 4.9 (0.34) / 4.9 (0.34)
  • Blade Width, ft (mm)
    6ft 5.2in (1960)
  • Blade Height, in (mm)
    16.1in (410), Angle Blade: 25/25
  • Hydraulic Oil Reservoir / System, gal (l)
    11.1 (41.9) / 20.3 (77.0)
  • Fuel Reservoir, gal (l)
    19.3 (73)
  • Operating Weight, lbs (kg)
    Rubber: 12200 (5535) / 12400 (5625), Angle blade rubber: 12346 (5600) / 12577 (5705) Angle blade steel: 13106 (5945) / 13338 (6050)
  • Build
  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

§The Manufacturer's Suggested Retail Price excludes tax, dealer fees, and optional equipment. The equipment shown is for illustrative purposes only and may not be base equipment.
