KX030-4

Compact Excavators

MSRP As Low As§
$46,772.00
Cab option available, see dealer for pricing

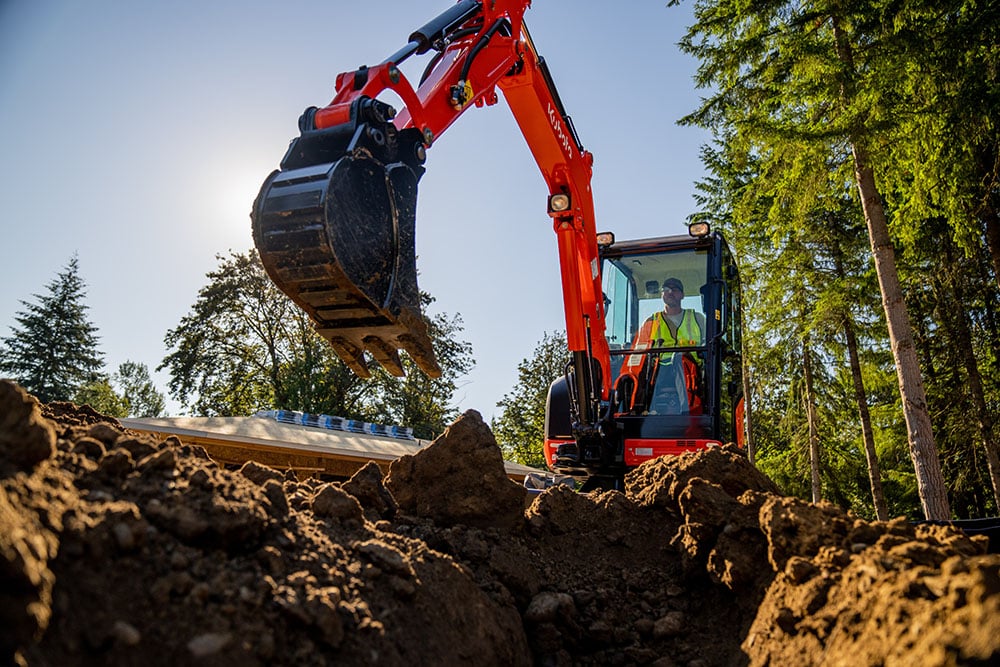

The KX030-4 with 24.7 horsepower gets the job done where larger excavators can't maneuver. Powerful breakout forces combined with the ability to simultaneously operate the pilot controlled hydraulic functions make the work day more productive. Kubota is the world’s #1 selling compact excavator for 20 years.*

*According to 2023 data from Off-Highway Research including all Kubota Group brand sales.

Read Disclaimer

Special Offers

CompactExcavators_Models_KXSeries
EXCAVATORS
Save Up to $6,000 or Pay 0% A.P.R. For Up to 60 Months With 0% Down on KX and U Series!*
Details
Farmer Veteran Coalition Rebate
Customer instant rebate for Farmer Veteran Coalition members.
Details
Implement Stand Alone Financing
Stand Alone Financing Installment Program
Details

Features

Superior Performance

The KX030-4 gets the job done where larger excavators can't maneuver. Powerful breakout forces combined with the ability to simultaneously operate the pilot controlled hydraulic functions make the work day more productive.
  • Powerful breakout force
  • Simultaneous operation
  • Thumb bracket and relief valves
  • Proportional flow control of auxiliary circuit
  • Third-line hydraulic return

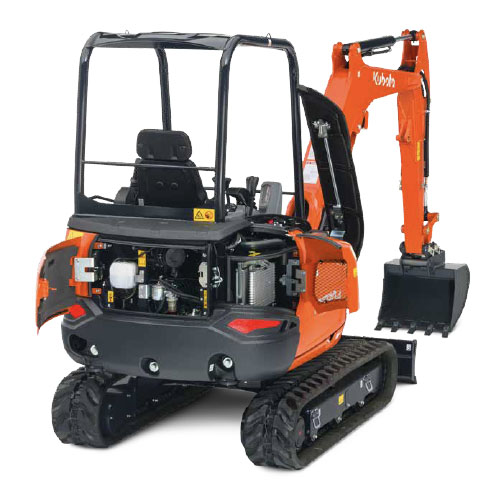

MAINTENANCE & SAFETY

With the KX030-4, operators can work with confidence knowing they are protected by the ROPS/OPG on both the open station or optional enclosed cab. Furthermore, the engine compartment is ergonomically organized with easy access to the radiator and engine oil cooler to make routine maintenance and inspections a breeze.

  • ROPS/OPG (top guard, level I) canopy and cabin
  • Protected cylinder hoses
  • Travel lock system
  • Swivel negative brake
  • Tie down points

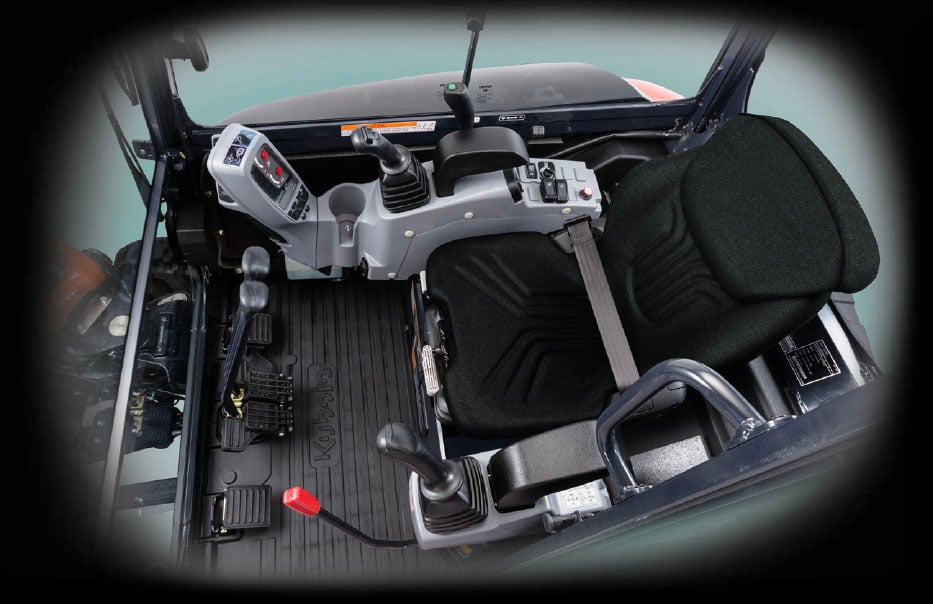

SPACIOUS CAB

The large cab offers a wider entrance, greater leg room, more floor space and a luxurious interior to make the work day more comfortable. Operability is greatly enhanced with more easy-to-use features than ever before.

  • Large operator's station
  • New front meter panel
  • Easy Cab entry and exit
  • Easy-open front slide window



Deluxe Interior

  • Flat foot space
  • 2-speed travel switch
  • Cup holder
  • Suspension seat

Superior Performance

The KX030-4 gets the job done where larger excavators can't maneuver. Powerful breakout forces combined with the ability to simultaneously operate the pilot controlled hydraulic functions make the work day more productive.
  • Powerful breakout force
  • Simultaneous operation
  • Thumb bracket and relief valves
  • Proportional flow control of auxiliary circuit
  • Third-line hydraulic return

MAINTENANCE & SAFETY

With the KX030-4, operators can work with confidence knowing they are protected by the ROPS/OPG on both the open station or optional enclosed cab. Furthermore, the engine compartment is ergonomically organized with easy access to the radiator and engine oil cooler to make routine maintenance and inspections a breeze.

  • ROPS/OPG (top guard, level I) canopy and cabin
  • Protected cylinder hoses
  • Travel lock system
  • Swivel negative brake
  • Tie down points

SPACIOUS CAB

The large cab offers a wider entrance, greater leg room, more floor space and a luxurious interior to make the work day more comfortable. Operability is greatly enhanced with more easy-to-use features than ever before.

  • Large operator's station
  • New front meter panel
  • Easy Cab entry and exit
  • Easy-open front slide window



Deluxe Interior

  • Flat foot space
  • 2-speed travel switch
  • Cup holder
  • Suspension seat

Specs & Compare

Compare Kubota Models
KX030-4
24.4 HP
MSRP AS LOW AS§
$46,772.00
  • Engine Model
    V1505-BH
  • Horsepower (gross)
    24.7
  • Displacement (cu. in.)
    91.4
  • Overall Length, ft (mm)
    15ft 1.1in (4600)
  • Overall Height, ft (mm)
    7ft 11in (2420)
  • Overall Width, ft (mm)
    4ft 11in (1500)
  • Min. Ground Clearance, in (mm)
    11.6in (295)
  • Crawler Length, ft (mm)
    6ft 5.9in (1980)
  • Pump Capacity, GPM (LPM)
    8.3 (31.5) Piston x 2 / 4.7 (18) Gear x 1
  • Auxiliary Hydraulics Flow Rate, GPM (LPM)
    13. (49.5)
  • Bucket Breakout Force, lbs (kgf)
    6924 (3140.7)
  • Arm Breakout Force, lbs (kgf)
    3484 (1580.6)
  • Traveling Speed: Low, mph (kph)
    1.7 (2.7)
  • Traveling Speed: High, mph (kph)
    2.7 (4.3)
  • Ground Contact Pressure psi, kgf (cm2)
    3.9 (0.27) / 4.0 (0.28)
  • Blade Width, ft (mm)
    4ft 11in (1500)
  • Blade Height, in (mm)
    11.8in (300)
  • Hydraulic Oil Reservoir / System, gal (l)
    9.0 (33.9) / 13.7 (52.0)
  • Fuel Reservoir, gal (l)
    12.7 (48)
  • Operating Weight, lbs (kg)
    6272 / 6426 (2845 / 2915)
  • Build
  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

  •

§The Manufacturer's Suggested Retail Price excludes tax, dealer fees, and optional equipment. The equipment shown is for illustrative purposes only and may not be base equipment.
